MSI A520M PRO-VH AMD AM4 MICRO-ATX AMD MOTHERBOARD
MSI A520M PRO-VH AMD AM4 MICRO-ATX AMD MOTHERBOARD
MSI A520M PRO-VH AMD AM4 MICRO-ATX AMD MOTHERBOARD - 2
MSI A520M PRO-VH AMD AM4 MICRO-ATX AMD MOTHERBOARD - 3
MSI A520M PRO-VH AMD AM4 MICRO-ATX AMD MOTHERBOARD - 4

MSI A520M PRO-VH AMD AM4 MICRO-ATX AMD MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025064890
Brand : MSI
Model : A520M PRO-VH
Warranty : 3 Years
  • Support 3rd/4000 G-Series
  • AMD Socket AM4
  • AMD A520 Chipset
  • Memory Supports DDR4

SPECIFICATIONS

Processor

Supported CPU Supports AMD Ryzen™ 5000 & 3000 Series desktop
processors and AMD Ryzen™ 4000 G-Series desktop processors

Mainboard

Chipset AMD A520 Chipset

Memory

Memory 2x DDR4 memory slots, support up to 64GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz
by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000
/4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

1DPC 1R max speed 4600 MHz

1DPC 2R max speed 3866 MHz

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Storage

Supported Storage AMD A520 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)

Supports PCIe 3.01

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Graphics

Graphics 1x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @60Hz12

Support HDCP 1.4 & 2.3

1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz1

Maximum shared memory of 16GB

Networking & Connectivity

LAN 1x Realtek RTL8111H 1Gbps LAN controller

Audio & Microphone

Audio Realtek® ALC892/ ALC897 Codec

7.1-Channel High Definition Audio

Ports

Slots 1x PCIe 3.0 x1 slot

1x PCIe 3.0 x16 slot
Internal I/O Ports 1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connector

1x Front panel audio connector

2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper

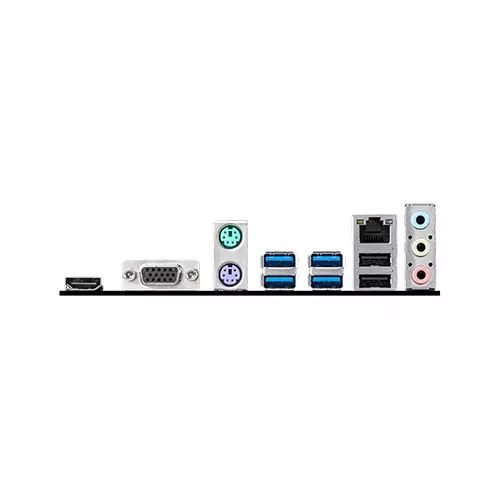

External I/O Ports HDMI

VGA

Keyboard / Mouse

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

LAN port

Audio connector

USB 2.0 Type-A
USB AMD A520 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Physical Specification

Form Factor mATX Form Factor
Dimension 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Warranty Information

Warranty 3 years

DESCRIPTION

MSI A520M PRO-VH Motherboard in Bangladesh

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

Features

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processorss
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI A520M PRO-VH AMD AM4 MICRO-ATX AMD MOTHERBOARD Price in Bangladesh 2026 ?

The MSI A520M PRO-VH Price in BD is 40৳ . This MSI A520M PRO-VH AMD AM4 MICRO-ATX AMD MOTHERBOARD Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI A520M PRO-VH by 40৳ and its regular price is 4,440৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
