Mikrotik RB760iGS hEX S 5x Gigabit Ethernet Router Specification |
Details
| - Product code: RB760iGS
- Architecture: MMIPS
- CPU: MT7621A
- CPU core count: 2
- CPU nominal frequency: 880 MHz
- CPU Threads count: 4
- IPsec hardware acceleration: Yes
- Dimensions: 113 x 89 x 28 mm
- RouterOS license: 4
- Operating System: RouterOS
- Size of RAM: 256 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 100'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- Suggested price: $69.00
|
Powering
| - PoE in: 802.3af/at
- PoE in input Voltage: 12-57 V
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 12-57 V
- Max power consumption: 24 W
- Max power consumption without attachments: 6 W
- FAN count: Passive
|
PoE-out
| - PoE-out ports: Ether5
- PoE out: Passive PoE up to 57V
- Max out per port output (input < 30 V): 500 mA
- Max out per port output (input > 30 V): 500 mA
- Max total out (A): 500 mA
|
Peripherals
| - Memory card type: microSD
- Memory Cards: 1
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1
|
Ethernet & Fiber
| - 10/100/1000 Ethernet ports: 5
- SFP ports: 1
|
Other
| - PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Mode button: Yes
|
Twelve (12) months limited warranty |

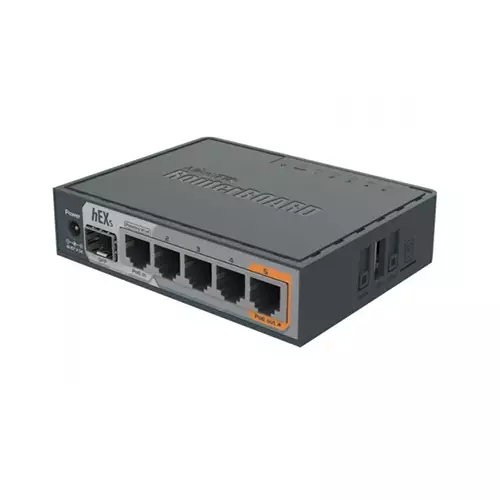

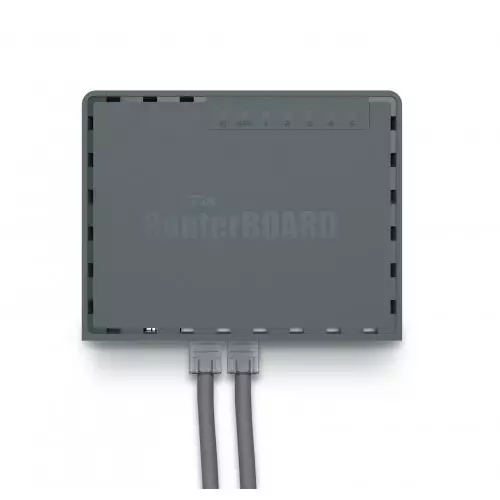

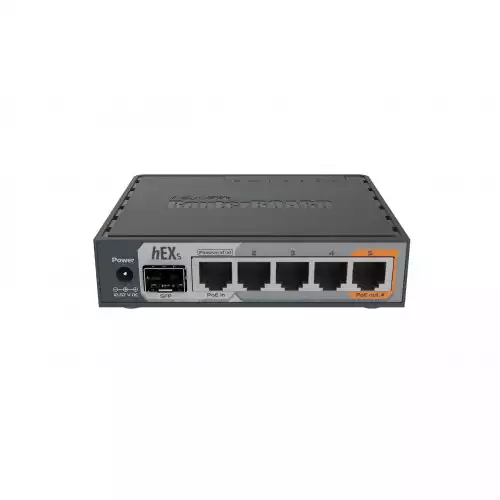

Mikrotik RB760iGS Ethernet Router
Mikrotik RB760iGS hEX S a five port Gigabit Ethernet router for locations where wireless connectivity isn't required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.It is affordable, small, and straightforward to use, but at an equivalent time comes with a really powerful dual-core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. Mikrotik RB760iGS features a USB 2.0, PoE output for Ethernet port #5, and a 1.25Gbit/s SFP cage.IPsec hardware encryption (~470 Mbps) and therefore the Dude server package is supported, microSD slot thereon provides improved r/w speed for file storage and Dude.
