Mikrotik hAP ac Lite TC Router Overview
| Specification | - Product code RB952Ui-5ac2nD-TC
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Dimensions 34 x 119 x 98mm
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -30°C to 70°C
|
Wireless capabilities
| - Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2
- Wireless 2.4 GHz chip model QCA9531
- Wireless 2.4 GHz generation Wi-Fi 4
- Wireless 5 GHz Max data rate 433 Mbit/s
- Wireless 5 GHz number of chains 1
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 2
- Wireless 5 GHz chip model QCA9887
- Wireless 5 GHz generation Wi-Fi 5
- AC speed AC750
|
Ethernet
| |
Peripherals
| - Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
|
Powering
| - Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 10-28 V
- Max power consumption 20 W
- Max power consumption without attachments 8 W
- FAN count Passive
- PoE in Passive PoE
- PoE in input Voltage 10-28 V
|
PoE-out
| - PoE-out ports Ether5
- PoE out Passive PoE
- Max out per port output (input 18-30 V) 500 mA
- Max total out (A) 500 mA
|
Certification & Approvals
| - Certification CE, FCC, IC, EAC, ROHS
- IP IP20
|
| Warranty | 1 year |
Mikrotik hAP ac Lite TC Router in Bangladesh

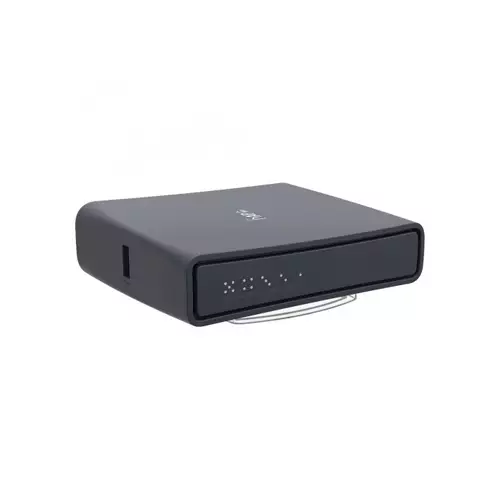

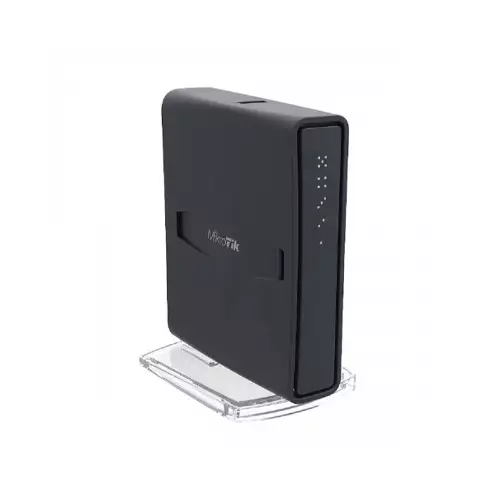

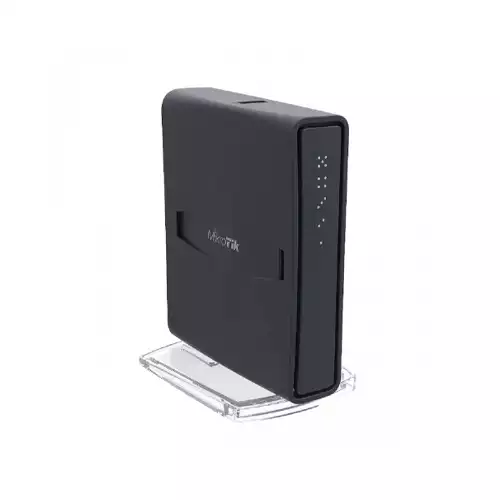

The hAP ac lite (RB952Ui-5ac2nD-TC) is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5).Dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is providedSize of RAM: 64 MB; Storage size: 16 MB; Dimensions: 34 x 119 x 98mm; PoE in/PoE out: Passive PoE; PoE-out ports: Ether5,
