Mikrotik RB4011iGS+5HACQ2HND-IN Gigabit Ethernet Router specification
General
| - Architecture: ARM 32bit
- CPU: AL21400
- CPU core count: 4
- CPU nominal frequency: 1.4 GHz
- IPsec hardware acceleration: Yes
- Dimensions: 228 x 120 x 30 mm
- RouterOS license: 5
- Operating System: RouterOS
- Size of RAM: 1 GB
- Storage size: 512 MB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -40°C to 45°C
|
Wireless capabilities
| - Wireless 5 GHz Max data rate: 1733 Mbit/s
- Wireless 5 GHz number of chains: 4
- Wireless 5 GHz standard:s 802.11a/n/ac
- Antenna gain dBi for 5 GHz: 3
- Wireless 5 GHz chip model: QCA9984
- Wireless 5 GHz generation Wi-Fi: 5
- Wireless 2.4 GHz Max data rate: 300 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n
- Antenna gain dBi for 2.4 GHz: 3
- Wireless 2.4 GHz chip model: R11e-2HnD
- Wireless 2.4 GHz generation: Wi-Fi 4
- AC speed: AC2000
|
Powering
| - PoE in: Passive PoE
- PoE in input Voltage: 18-57 V
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage :12-57 V
- Max power consumption: 44 W
- Max power consumption without attachments: 23 W
- FAN count: Passive
|
PoE-out
| - PoE-out ports: Ether10
- PoE out: Passive PoE up to 57V
- Max out per port output (input < 30 V): 600 mA
- Max out per port output (input > 30 V): 420 mA
- Max total out (A): 600 mA
|
| Others | - 10/100/1000 Ethernet ports: 10
- SFP+ ports
- MiniPCI-e slots
- Serial port: RJ45
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
|

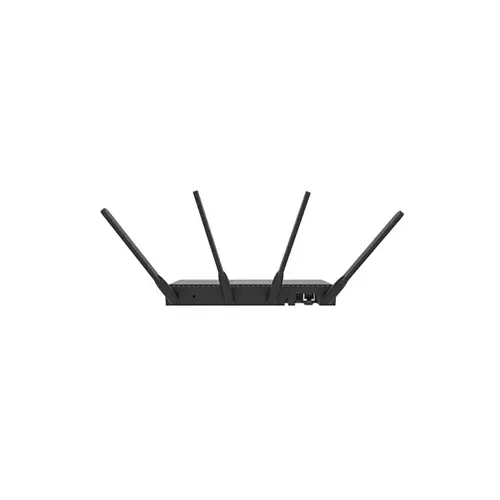

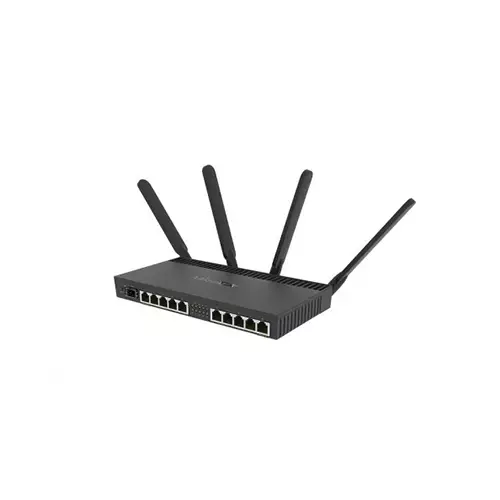

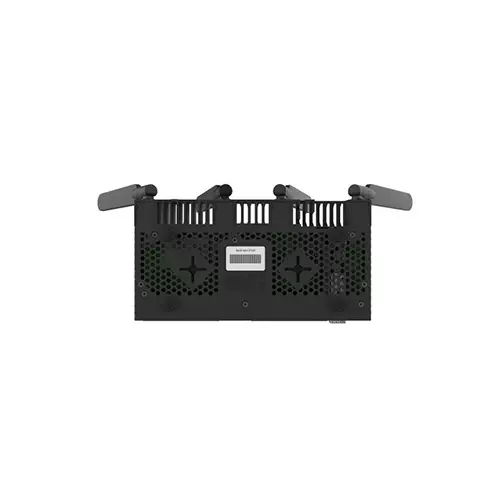

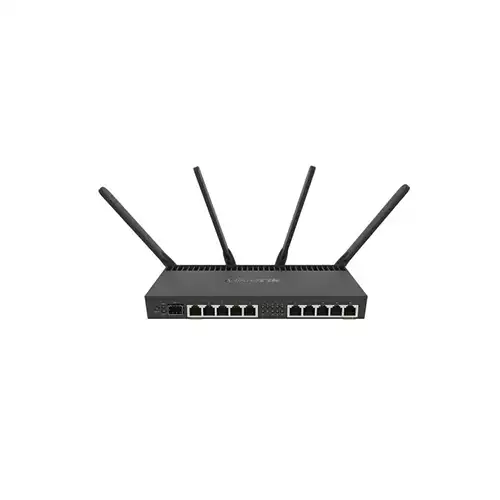

Mikrotik RB4011iGS+5HACQ2HND-IN Gigabit Ethernet Router
RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface, and IPsec hardware acceleration for an excellent price!
The RB4011 uses a quad-core Cortex A15 CPU, the same as in our carrier grade RB1100AHx4 unit. The unit is provided with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGSIN (WiFi model) is a dual-band, four chain unit with a supported rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also features a dual chain 2GHz wireless card installed in a miniPCI-e slot.
