Maxsun Terminator Z790M D5 WIFI 12th/13th Gen Motherboard
- Expansion and upgrade
- 5 x M.2 slots
- Fast transmission
- Front and rear dual 20G Type-C
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
৳877
SPECIFICATIONS
Processor
Supported CPU
12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Mainboard
Chipset
Intel Z790
Memory
Memory Size
Memory Max.: 192GB
Memory Type
DDR5
Expansion RAM Slot
4
Memory
Memory Channel: Dual
Storage
Storage
Storage Interface: 6.0Gb/s
M.2/SSD Expansion Slot Details
5 x M.2 (3 x M.2 type 2242/2280/22110 (supports PCIe 4.0 x4 mode),
2 x M.2 type 2242/2280 (supports PCIe 4.0 x4 mode))
M.2/SSD Expansion Slot Details
5 x M.2 (3 x M.2 type 2242/2280/22110 (supports PCIe 4.0 x4 mode),
2 x M.2 type 2242/2280 (supports PCIe 4.0 x4 mode))
SSD (Solid-State Drive)
M.2/SSD Expansion Slot: 5
Graphics
Graphics
Graphics Chipset: Integrated With Processor
Networking & Connectivity
LAN
LAN Chipset: Realtek RTL8125BG 2.5G LAN
LAN Speed (Mbps): 10/ 100/ 1000/ 2500Mbps
LAN Speed (Mbps): 10/ 100/ 1000/ 2500Mbps
Wi-Fi
Intel Wi-Fi 6E AX211
Bluetooth
v5.3
Audio & Microphone
Audio
Audio Chipset: Realtek ALC897 Codec
Audio Channel: 7.1
Audio Channel: 7.1
Battery And Power
Power Consumption
60W
Ports
PCI Card Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x4 slot
USB
1 x USB 3.2 Gen2x2 Type C, 4 x USB 3.2 Gen1 Type A, 4 x USB 2.0
HDMI
1
Special Features
RGB
Yes
Features
Surging property,
10 phase power supply & hybrid heat dissipation,
Expansion and upgrade,
5 x M.2 slots,
Fast transmission,
Front and rear dual 20G Type-C
10 phase power supply & hybrid heat dissipation,
Expansion and upgrade,
5 x M.2 slots,
Fast transmission,
Front and rear dual 20G Type-C
Others
Compatible
Raptor Lake Refresh 14600K,
Core i3 12100F,
Core i3 13100F,
Core i5 12400F,
Core i5 13400F,
Core i5 13500,
Core i7 13700KF etc
Intel Core Processors,
Pentium Gold and Celeron Processors
Core i3 12100F,
Core i3 13100F,
Core i5 12400F,
Core i5 13400F,
Core i5 13500,
Core i7 13700KF etc
Intel Core Processors,
Pentium Gold and Celeron Processors
Other Features
DisplayPort (DP): 1
SATA Port: 4
TPM Port: 1
COM Port: 1
Raid Support: 0, 1, 5, 10
SATA Port: 4
TPM Port: 1
COM Port: 1
Raid Support: 0, 1, 5, 10
Physical Specification
Form Factor
Micro-ATX
Technical Info
Supported Operating System
Windows 11, 10
Model
Terminator Z790M D5 WIFI
Supported Sockets
LGA1700
Warranty Information
Warranty
3 Years
DESCRIPTION

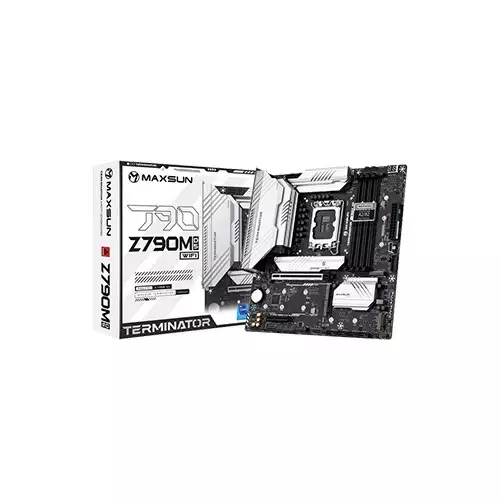

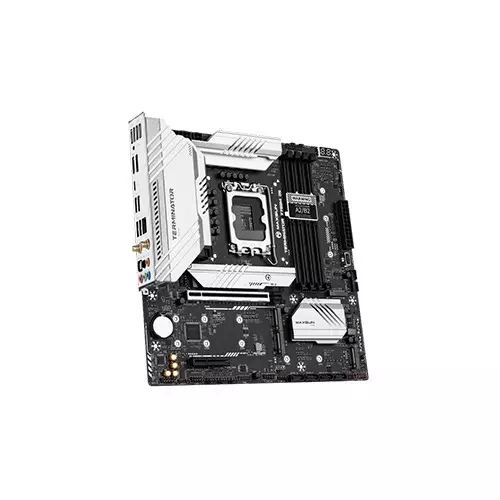

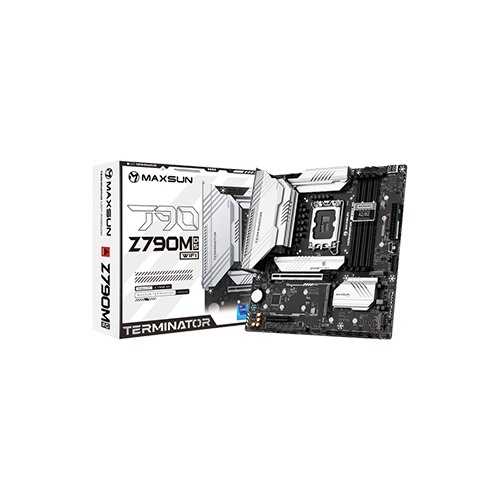

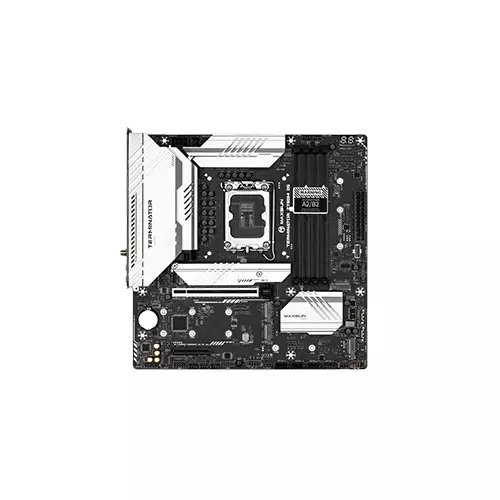

Maxsun Terminator Z790M D5 WIFI Motherboard Overview
The Maxsun Terminator Z790M D5 WIFI Motherboard, available at TechLand BD, is a cutting-edge product designed for 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors. It features the INTEL Z790 chipset and supports LGA 1700. The card has 4 DDR5 memory slots, with a maximum memory capacity of 192GB. It supports a wide range of memory speeds, from DDR5 4800(JEDEC) MHz to DDR5 7000+(OC) MHz, and supports Intel XMP 3.0 OC and Dual-Controller Dual-Channel mode. The onboard graphics include 1 DisplayPort 1.4 and 1 HDMI port, which supports up to 4K@30Hz. The card has 1 PCIe 5.0 x16 slot and 1 PCIe 3.0 x4 slot. It offers extensive storage options, with 5 M.2 slots (Key M) that support PCIe 4.0 x4 mode and 4 SATA 6Gb/s ports. It supports RAID 0, RAID 1, RAID 5, and 10 for SATA storage devices. The card has a total of 15 USB ports, including USB 3.2 Gen2x2 Type C and USB 3.2 Gen1 Type A. It features Realtek RTL8125BG 2.5G LAN and Intel Wi-Fi 6E AX211, supporting MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, and Bluetooth 5.3. The audio is powered by Realtek ALC897 Codec, supporting 7.1-Channel High Definition Audio and S/PDIF output. The card supports Windows 11 64-bit and Windows 10 64-bit operating systems. The form factor is M-ATX, with dimensions of 245mm x 245mm. This Motherboard is available at TechLand BD.REVIEWS
