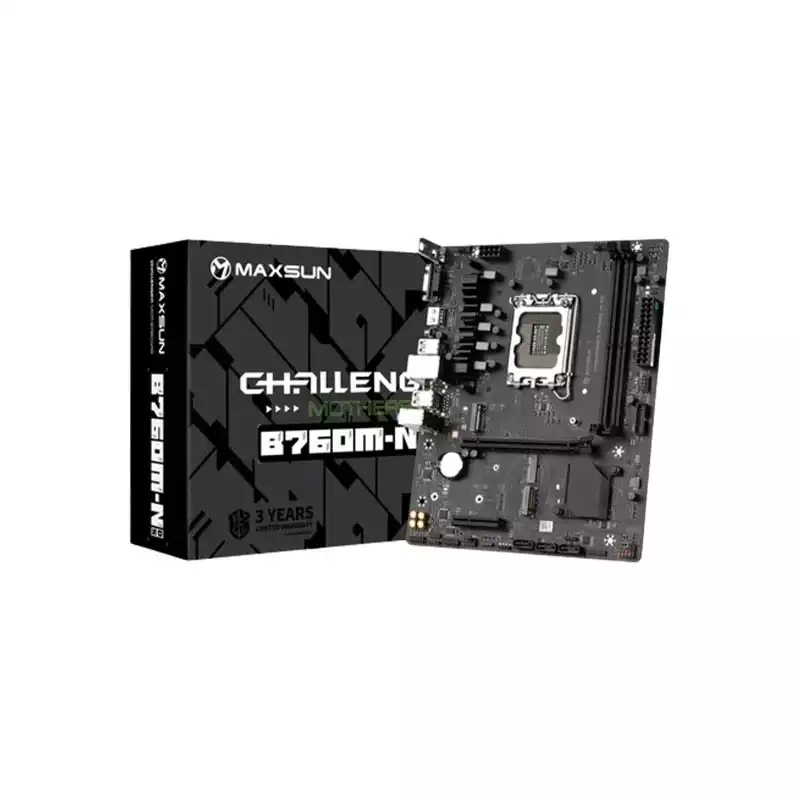

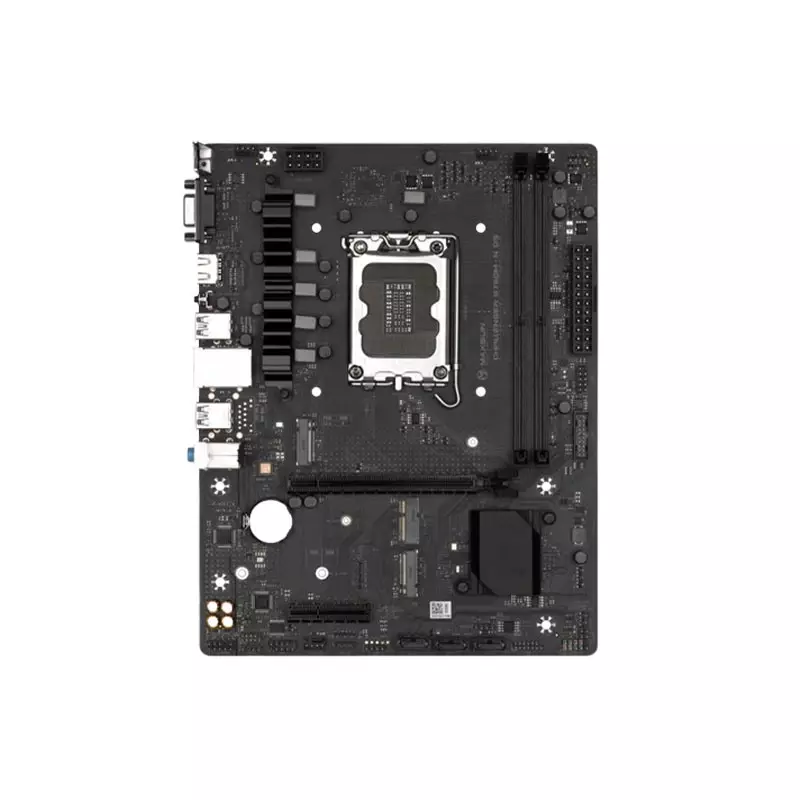

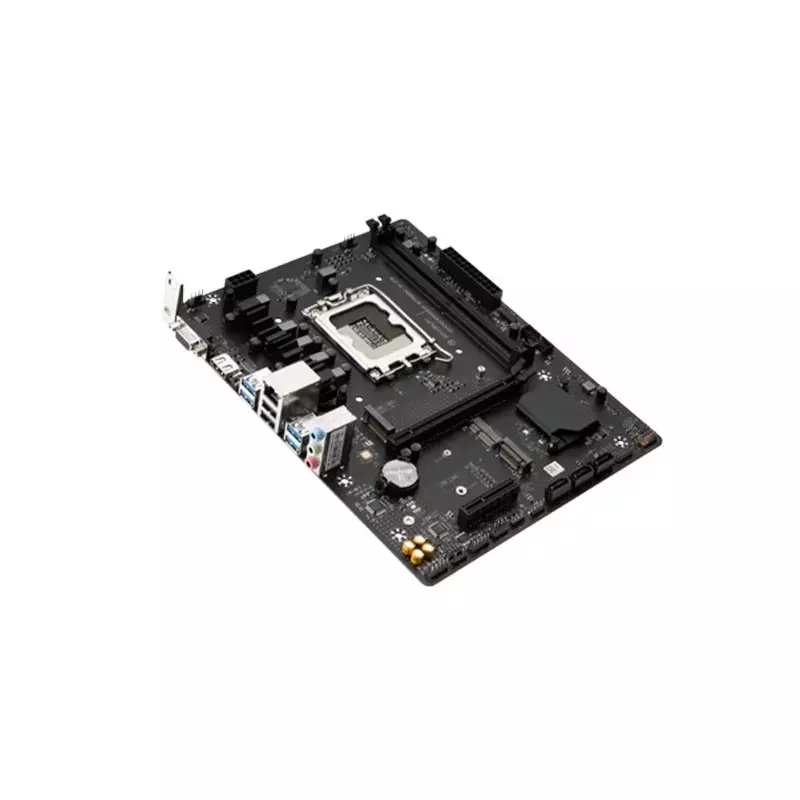

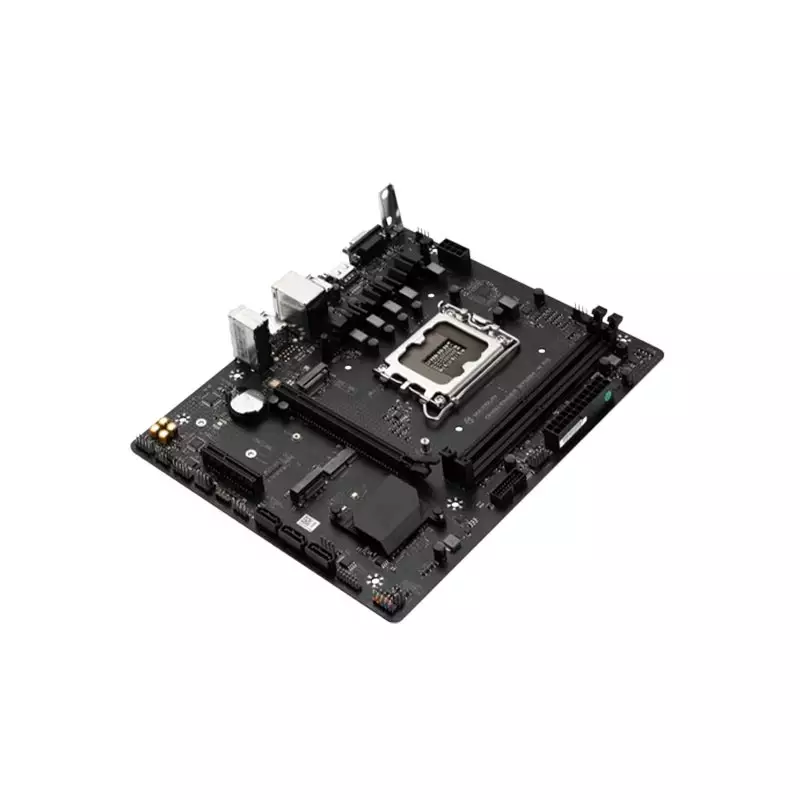

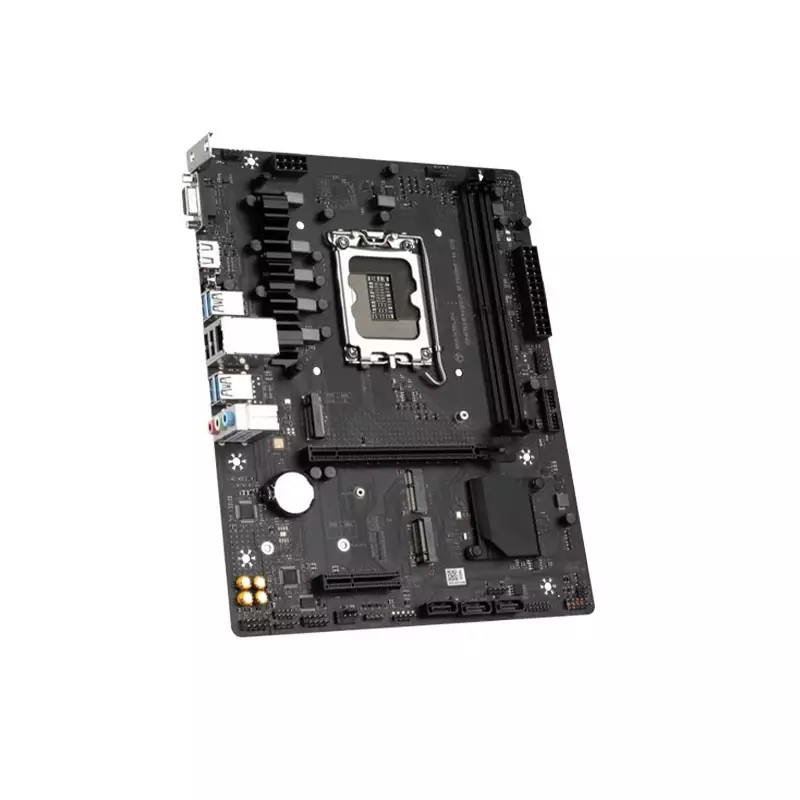

MAXSUN Challenger B760M-N D5 12th/13th Gen Motherboard
- 4+1+1 phase stable power supply
- Core 50A Dr. Mos
- High-speed Dual M.2
- DDR5 memory, XMP 5600MHz/OC+
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
LGA 1700
Mainboard
Memory
Memory Support DDR5 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Graphics
*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
Networking & Connectivity
Ports
1x PCIe 3.0 x4 slot
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2 x M.2 slots (Key-M)
3x SATA 6Gb/s ports
1x 2-Pin CLR_CMOS
1x 4-Pin BUZZER
1x Front Audio
1x COM_A Port
1x 2-Pin F_PANEL
1x TPM pin header(Support TPM 2.0)
1x 3-Pin SPDIF
1x 12V 4-Pin RGB
2x USB 3.2 Gen1 Type A
4x USB 2.0

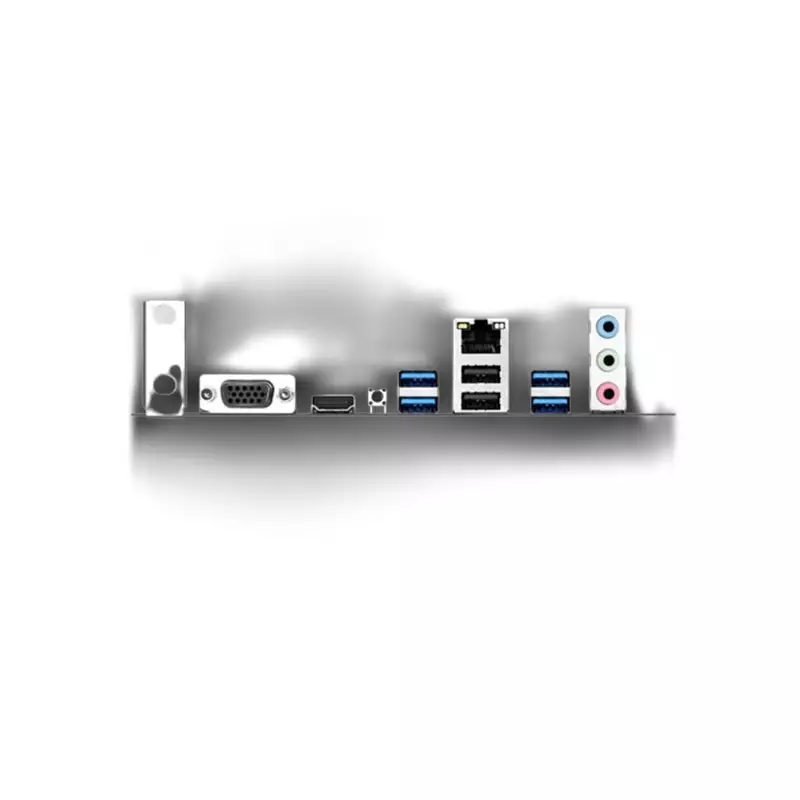

*Rear USB (Total 6 ports)
4x USB 3.2 Gen1 Type A
2x USB 2.0
Physical Specification
245mm x 190mm
Warranty Information
DESCRIPTION
MAXSUN Challenger B760M-N D5 Motherboard In BD
The MAXSUN Challenger B760M-N D5 12th/13th Gen Motherboard, a powerhouse designed to complement the latest Intel Core processors, Pentium Gold, and Celeron processors, available for enthusiasts and builders at TechLand BD. With the cutting-edge Intel B760 chipset and LGA 1700 compatibility, this motherboard ensures optimal performance and compatibility with 12th and 13th Gen Intel CPUs. The memory configuration is robust, supporting up to 96GB across two DDR5 slots with speeds ranging from 4800MHz to 6000MHz (OC), thanks to Intel XMP 3.0 OC support and Dual-Controller Dual-Channel mode. Graphics versatility is key with 1x VGA (supporting resolutions up to 2048x1536 50Hz) and 1x HDMI port (capable of 4K@30Hz), catering to various display needs. Expansion slots include 1x PCIe 4.0 x16 and 1x PCIe 3.0 x4, while storage options abound with dual M.2 slots (supporting PCIe 4.0 x4 mode) and 3x SATA 6Gb/s ports, supporting RAID configurations. Connectivity is seamless with a range of USB ports, including front and rear USB 3.2 Gen1 Type A and USB 2.0 ports. The Realtek RTL8111H 1G LAN ensures stable and fast network connectivity, while the Realtek ALC897 Codec delivers 5.1-Channel High Definition Audio for an immersive audio experience. The internal I/O is thoughtfully designed with multiple connectors, including power connectors, fan connectors, M.2 slots, SATA ports, and more. LED features include 4x Distributed Debug LED for easy troubleshooting. Operating system support extends to Windows 11 64-bit and Windows 10 64-bit. Compact and efficient, the MAXSUN Challenger B760M-N D5 motherboard comes in a Micro-ATX form factor (245mm x 190mm), making it versatile for various build sizes. Upgrade your system with this feature-rich motherboard, where performance, connectivity, and reliability converge.
