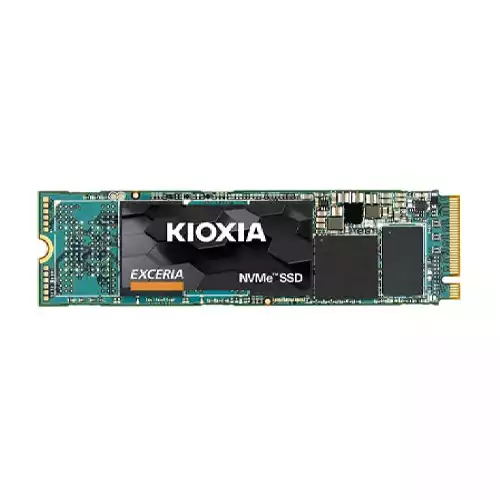

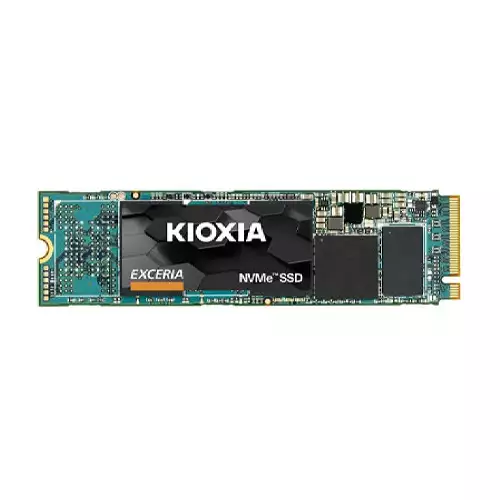

Kioxia Exceria 500GB NVME M.2 SSD Overview
Capacity
| 500GB
|
Form Factor
| M.2 Type 2280-S2-M
|
Interface
| PCI Express Base Specification Revision 3.1a (PCIe)
|
Flash Memory Type
| BiCS FLASH TLC
|
Interface Maximum Speed
| 32 GT/s (PCIe® Gen3x4L)
|
Max Sequential Read Speed
| 1,700 MB/s
|
Max Sequential Write Speed
| 1,600 MB/s
|
Max Random Read Speed
| 350,000 IOPS |
Max Random Write Speed
| 400,000 IOPS
|
Endurance: TBW (Total Bytes Written)
| 200 TB
|
Endurance: TBW (Total Bytes Written)
| 200 TB
|
MTTF
| 1.5 million hours
|
Operating Temperature
| 0 °C (Ta) to 85 °C (Tc)
|
Storage Temperature
| -40 °C to 85 °C
|
Shock Resistance
| 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
|
Vibration
| 196 m/s2 {20 G} Peak, 10~2000 Hz, (20 min / Axis) x 3 Axis
|
Supply Voltage
| 3.3 V ±5 %
|
Power Consumption
| PS3: 50mW
PS4: 5 mW
|
Power Consumption
| 3.9 W (typ.)
|
Weight
| 6.0 g (typ.)
|
Interface Command
| NVM Express
Revision 1.3c command set
|
Dimension
| 80.15 x 22.15 x 2.23 mm
|
| Warranty | 5 years |
Kioxia Exceria 250GB Nvme M.2 SSD in Bangladesh
Upgrading from a hard drive or SATA SSD should be easy and affordable and that’s where EXCERIA SSDs come in. KIOXIA EXCERIA SSD Series is built to boost your mobile or PC experience and deliver balanced performance and value that will transform your system. Leveraging BiCS FLASH™ 3D flash memory, this new mainstream-class SSD series offers up to 1TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.
Application Performance Maximized
KIOXIA EXCERIA SSD series redefine mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications.
Small and Compact for an Easy Upgrade
Featuring a slim and light M.2 2280 form factor, the EXCERIA SSD series plugs directly into thin notebooks’ motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.
NVMe Technology
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 1.3c technology, EXCERIA SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.
