Gigabyte Z490 AORUS MASTER Intel 10th Gen Motherboard
Gigabyte Z490 AORUS MASTER Intel 10th Gen Motherboard
Gigabyte Z490 AORUS MASTER Intel 10th Gen Motherboard - 1
Gigabyte Z490 AORUS MASTER Intel 10th Gen Motherboard - 2
Gigabyte Z490 AORUS MASTER Intel 10th Gen Motherboard - 3

Gigabyte Z490 AORUS MASTER Intel 10th Gen Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061745
Brand : Gigabyte
Model : Z490 AORUS Master
Warranty : 1 Year
  • Chipset: Intel Z490 Express Chipset
  • LAN: Realtek 2.5GbE LAN chip
  • Supports: 10th Gen Intel Core Series Processors
  • Audio: Realtek ALC1220-VB codec

SPECIFICATIONS

Processor

Supported CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)

Mainboard

Chipset Intel Z490 Express Chipset
BIOS 2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Intel® Core™ i9/i7 processors:
Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB

Networking & Connectivity

LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Audio & Microphone

Audio Realtek® ALC1220-VB codec
* The front panel line out jack supports DSD audio.
ESS ES9118EQ DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x Clear CMOS jumper
2 x BIOS switches

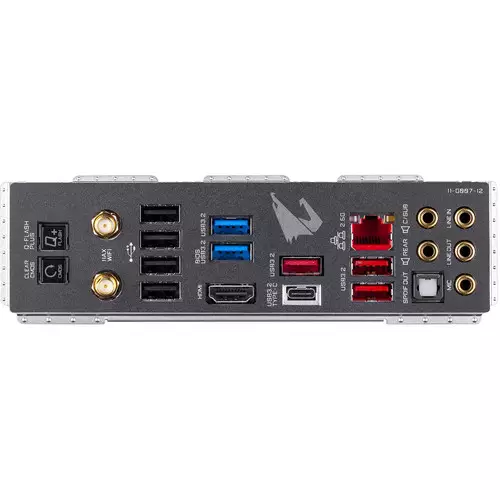

External I/O Ports 1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
USB 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte Z490 AORUS MASTER Motherboard

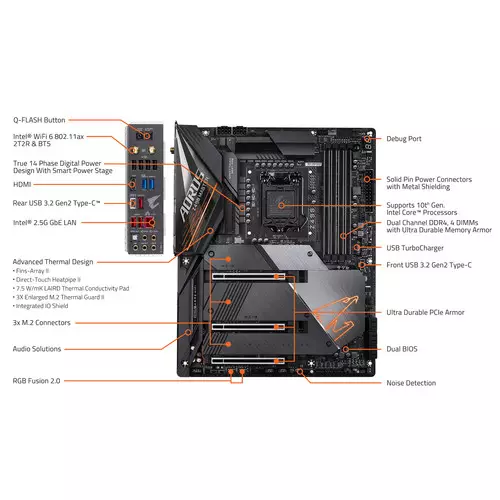

Features :

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • 14 Phase Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
  • Shielded Memory Routing for Better Memory Overclocking
  • Newly Invented Thermal Design with Fins-Array II Heatsink and Direct Touch Heatpipe II
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • 125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220, and WIMA Audio Capacitors
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • USB TurboCharger for Mobile Device Fast Charge Support
  • Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card
**03 Years Warranty


[product_table id="34" limit="10" type="filter" filter_category="139"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte Z490 AORUS MASTER Intel 10th Gen Motherboard Price in Bangladesh 2026 ?

The Gigabyte Z490 AORUS Master Price in BD is 29,999৳ . This Gigabyte Z490 AORUS MASTER Intel 10th Gen Motherboard Manufacturing by Gigabyte Comes With 1 Year Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z490 AORUS Master by 29,999৳ and its regular price is 35,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
