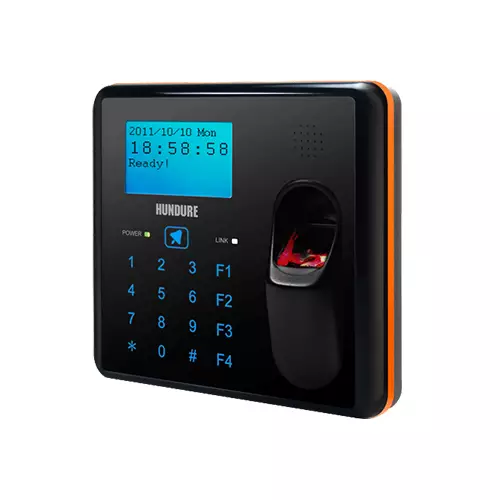

HUNDURE RAC-960PEF Standalone Fingerprint And RFID Card Access Controller
HUNDURE RAC-960PEF Standalone Fingerprint And RFID Card Access Controller

HUNDURE RAC-960PEF Standalone Fingerprint And RFID Card Access Controller

Stock : Discontinued
PID : P00025065113
SKU : RAC960PEF
Brand : Hundure
Model : RAC-960PEF
Warranty : 1 Year
★ ★ ★ ★ ★
0 Reviews
  • Read Format EM (125KHz)
  • Read Range 8-10 Cm(Max )
  • Slave Reader T2 Or Wiegand (1 Set )
  • Real Time Clock YES

    • HUNDURE RAC-960PEF Specification

    Read Format
    		EM (125KHz)
    Read Range
    		8-10 cm(max )
    Slave Reader
    		T2 or Wiegand (1 Set )
    Input Port

    3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1)

    Output Port (Built-in)
    		Relay x 1 (Door Lock or Bell )
    Output Port (External)
    		O.C. Output x 2 ( Door Lock / Alarm or Siren , external ACU-30 )
    Cardholders
    		18,000 (max)
    Events
    		18,000
    Fingerprint Capacity
    		950 user capacity. ( 2 fingerprint templates per person)
    Identification Mode
    		1：1 / 1：N
    Identification Time
    		1：1 <= 1 sec. 1：1,000 <= 1 sec.
    FAR
    		<=0.001%
    FRR
    		<=0.01%
    Fingerprint Sensor
    		Optical CMOS Sensor
    LED Indicator
    		Power / Comm
    LCD Display
    		128 x 64 Dot. Graphic Display with backlight
    Keypad
    		17 Key (F1-F4, 0-9, ＊, ＃, Bell) (Sensitive Touch Keypad)
    Real Time Clock
    		YES
    Beep Tone
    		Buzzer & Operating steps sound
    ID or IP Setting
    		Command setting by keypad
    Power Input
    		DC 12V / 1A
    Current Consumption
    		1A (max.)
    Comm. Interface
    		RS-485 / TCP/IP
    Comm. Baudrate
    		RS-485: 9,600/19,200 bps-N-8-1。TCP/IP: 10/100 Mbps
    Operating Temp.0℃~ 55℃ / 32℉~ 131℉
    Relative Humidity
    		20% ~ 80% (Non-condensing)
    Dimension
    		140mm(L) x 130mm(W) x 41mm(H)
    Weight (Device)
    		400g

    HUNDURE RAC-960PEF Access Controller in Bangladesh

    Features

    ● Bell key function design. Suit for various location.

    ● Casing tamper proof detection and door tamper alarm.

    ● Slim, stylish design, sensitive touch keypad with blue backlight.

    ● Dual card / fingerprint contrast function, improve system security.

    ● High security, using encryption with random code to saving finger characteristic.

    ● Large LCD display time, date, weekday and company name. And show cardholder

    Chinese / English name or card number after verification.

    ● The standard model can access 950 users with 2 fingerprint templates per each user (total

    1,900 fingerprint templates ). The storage event record is up to 18,000 events.

    ● The advanced model can access 4,750 users with 2 fingerprint templates per each user

    (total 9,500 fingerprint templates). Another model with 170,000 events storage is available

    for optional purchase.

    ● Quick and accurate fingerprint verification, supports 1:1 authentication & 1:N identification.

    And audible voice prompts guiding users during verification process.

    ● Provide 32 working shifts and 32 siren schedules. Able display current shift or active alarm. Provide 100 holiday schedules per year.

    ● Provide 128 time zones and time schedules, 8 time conditional unlock door schedules (per

    week).

    ● Duress card/code setting. When door opened in the emergency, controller will send signal

    to control center at the same time for tracing and rescue.

    ● Programmable disarm code.

    ● Unique ID or Block read format supported and programmable key value. (RAC-960PMF)

    ● RTC ensures to provide correct date and time. Watchdog function secures system free

    from halting.

    ● Built-in RS-485 & TCP/IP communication interface to PC.

    ● On-board lithium battery ensures data storage can reach up to 1 year upon power outage.

    ● Conforms to ISO 14443A standard; supporting Mifare card. (RAC-960PMF)

    What is the HUNDURE RAC-960PEF Standalone Fingerprint And RFID Card Access Controller Price in Bangladesh 2026 ?

    The Hundure RAC-960PEF Price in BD is 23,000৳ . This HUNDURE RAC-960PEF Standalone Fingerprint And RFID Card Access Controller Manufacturing by Hundure Comes With 1 Year Warranty & Based on 0 reviews. Tech Land BD Offers you Hundure RAC-960PEF by 23,000৳ and its regular price is 23,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
