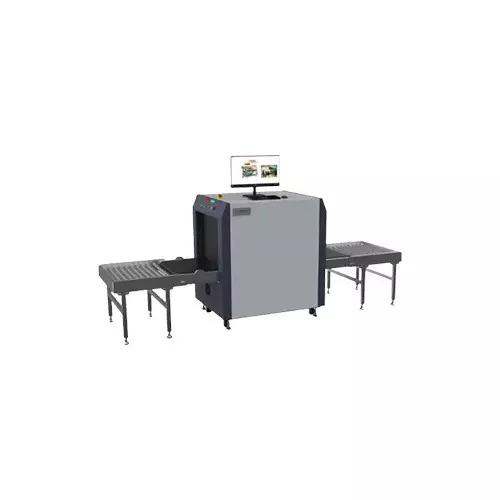

Hikvision ISD-SG6550SA-2CL X-ray Intelligent Security Inspection System

Hikvision ISD-SG6550SA-2CL X-ray Intelligent Security Inspection System In Bangladesh

Hikvision ISD-SG6550SA-2CL X-ray Intelligent Security Inspection System is a state-of-the-art security solution designed for reliable and intelligent screening of luggage, parcels, and cargo in high-security environments such as airports, transportation hubs, government buildings, and commercial facilities. With a tunnel size of 650 mm (W) × 500 mm (H), this system accommodates medium to large-sized items, while the sturdy conveyor can handle loads up to 165 kg. Operating at a speed of 0.2 m/s, the conveyor ensures smooth and efficient baggage flow. Equipped with a powerful 80 kV X-ray generator with oil cooling and continuous duty cycle, the device offers excellent imaging capabilities. Its wire resolution of 36 AWG (standard) and 38 AWG (typical), along with a steel penetration of up to 10 mm, allow for detailed image inspection, enhancing the identification of hidden threats or prohibited items. system integrates three high-resolution 1080p cameras with H.265/H.264/MJPEG video compression and 30+ days of video storage, enhancing monitoring accuracy. The 21.5-inch display provides crystal-clear imaging with a resolution of 1920×1080@60Hz, helping operators identify anomalies efficiently. Advanced intelligent functions include the detection of 7 categories with 15 types of prohibited items, along with alerts for organic materials, explosives, and non-intrusive anomalies. User-friendly features like password login, real-time image playback, image enhancements (color, B&W, absorption controls), and the ability to store over 100,000 images, offer a seamless user experience. Built with robust materials and advanced safety protocols, the device emits less than 1.0 µSv/h radiation and meets ASA/ISO1600 film safety standards. The system operates in a wide range of conditions with temperatures from 5 °C to 40 °C and humidity up to 95%, and stores safely between -20 °C to 60 °C. With a maximum power consumption of 0.6 kW and low noise level of 60 dB, the Hikvision ISD-SG6550SA-2CL offers a high-performance, intelligent, and safe screening experience for high-throughput security environments.

FAQs:

1: What is the tunnel size of the ISD-SG6550SA-2CL system?

The tunnel dimensions are 650 mm (W) × 500 mm (H).

2: How much weight can the conveyor support?

The conveyor can handle up to 165 kg.

3: How long does the system store video footage?

It can store video footage for not less than 30 days.
