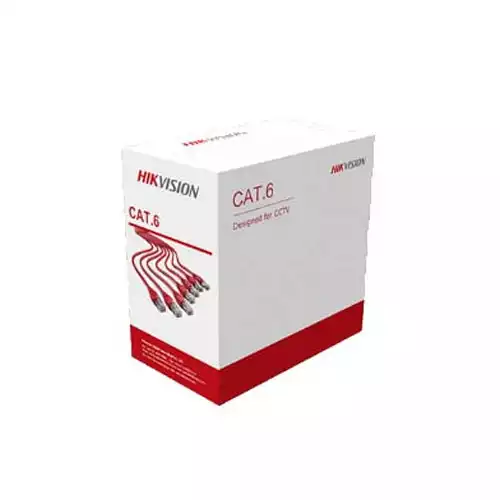

Hikvision Cat-6 305 Meter Solid Copper Network Cable

Hikvision Cat-6 305 Meter Solid Copper Network Cable

0 Reviews
Stock : Call For Price
PID : P0332506165
SKU : TEHVDS-1LN6U-SC0NC
Brand : Hikvision
Model : DS-1LN6U-SC0
  • Hikvision DS-1LN6U-W/CCA Cat-6,
  • Type - Network Cable,
  • Length - 305 Meter,
  • Colour: Orange
Call For Price

DESCRIPTION

Hikvision Cat-6 305 Meter Solid Copper Network Cable Overview

General
  • Rip-Cord: Yes
  • Category: Cat.6
  • Sheath Printing: HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
  • Reference Standard: ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
  • Fire Resistance: No
  • Separator: Yes
Conductor
  • Material: Solid-Bare Copper (99.95%)
  • Diameter: 0.55 ± 0.005 mm, 23 AWG
Insulation
  • Material: HDPE
  • Diameter: 0.98 ± 0.05 mm
Sheath Physical Properties
  • Before Aging: Tensile strength ≥ 13.5 Mpa; Elongation ≥ 150%
  • Aging Period: 100°C × 24h × 10d
  • After Aging: Tensile strength ≥ 12.5 Mpa; Elongation ≥ 125%
  • Cold Bend: -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics(20℃)
  • 1.0-250.0 MHz Impedance: 100 ± 15 Ω @ ≤ 100 MHz; 100 ± 25 Ω @100-250 MHz
  • 1.0-250.0 Mhz Delay Skew: ≤ 45 ns/100 m
  • DC Resistance: ≤ 9.38 Ω/100 m
  • DC Conductor Resistance Unbalance: ≤ 5.0%
  • Package Dimension: 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75" × 15.75" × 9.45"); 12.3 ± 0.5kg
  • Cable Length: (305 ± 1.5) m
  • Ambient Temperature: -20°C to 75°C (-4°F to 167°F)
  • Operating Voltage: 60 V
Sheath
  • Thickness: 0.50 ± 0.10 mm
  • Material: PVC
  • Color: Orange
  • Diameter: 6.00 ± 0.30 mm


Hikvision Cat-6 305 Meter Solid Copper Network Cable in Bangladesh


Features

  • Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801
  • Compliant with RoHS 2.0
  • Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project
  • Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature
  • Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)
  • Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance
