Product Information

Save : ৳ 400

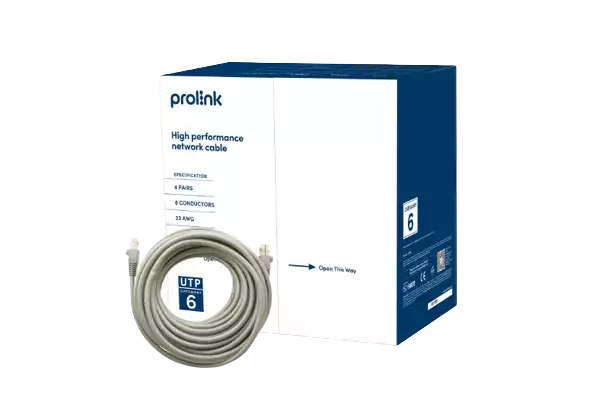

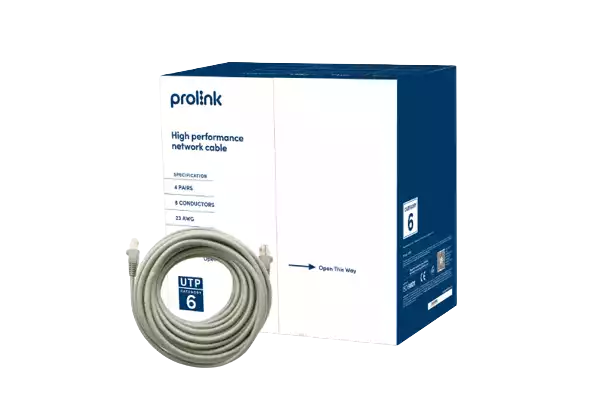

Prolink 23AWG UTP CAT6 Network Cable
Prolink 23AWG UTP CAT6 Network Cable

Prolink 23AWG UTP CAT6 Network Cable

Stock : In Stock
PID : P0812506026
Brand : PROLINK
Model : 23AWG
★ ★ ★ ★ ★
0 Reviews
  • TIA/EIA-568A/568B & ISO 11801
  • Shielding Connector UTP
  • Connector Type 23 AWG (4 pairs)
  • Category Connector Cat6

    • Product Pricing

    Discount Price

    ৳ 7,500 ৳ 7,900
    Available Payment Method

    EMI Start From*

    ৳ 264

    Prolink 23AWG UTP CAT6 Network Cable

    SPECIFICATIONS
    • Operating Temperature 75°C
    • Packing Easy-pull boxes/Cable length of 305M
    CONSTRUCTION
    • Conductor 23 AWG (4 pair)
    • Conductor Diameter 0.56±0.02mm
    • Insulation: High Density Polyethylene
    • Insulation Diameter 0.93±0.02mm
    • Pairs 2 Insulated conductors twisted together
    • Cable Diameter 5.6±0.15mm
    • Printing Each meter is printed with a sequential length counter
    • Jacket Nominal Wall Thickness 0.7±0.01mm
    • Insulation Nominal Wall Thickness 0.2mm
    ELECTRICAL PROPERTIES
    • Characteristic Impedance 64kHz: 125Ω±20%
    • 1~250MHz: 100Ω±15%
    • Conductor Resistance MAX 18Ω/100m at 20°C
    • Insulation Resistance MIN 150MΩ/KM
    • Mutual Capacitance MAX 5600pf/100M
    • Resistance Unbalance MAX 5%
    • Resistance Unbalance MAX 300pf/100M
    DIMENSION & WEIGHT
    • Dimension 390 x 390 x 235mm (L x W x H)
    • Weight 9.67kg/roll (Cable Only)
    • 10.53kg (With Box)

    Prolink 23AWG UTP CAT6 Network Cable in Bangladesh

    The Prolink 23AWG UTP CAT6 Network Cable. Designed for both home and professional environments, this cable supports high-speed data transmission with excellent signal integrity. Featuring 23 AWG (4-pair) copper conductors and high-density polyethylene insulation, it delivers stable performance across 1–250MHz frequency range with a characteristic impedance of 100Ω ±15%. The cable’s construction ensures durability and flexibility: each twisted pair is insulated to minimize interference, and the overall cable diameter of 5.6mm with a 0.7mm nominal wall jacket provides robust protection against wear and tear. Every meter is printed with a sequential length counter, simplifying installation and measurement. With a maximum operating temperature of 75°C and a total cable length of 305 meters per roll, the Prolink CAT6 cable is perfect for offices, data centers, and home networks. Electrical specifications include maximum conductor resistance of 18Ω/100m, insulation resistance ≥150MΩ/km, and mutual capacitance ≤5600pF/100m, ensuring reliable high-speed data transmission with minimal signal loss.

    What is the Prolink 23AWG UTP CAT6 Network Cable Price in Bangladesh 2026 ?

    The PROLINK 23AWG Price in BD is 7,500৳ . This Prolink 23AWG UTP CAT6 Network Cable Manufacturing by PROLINK Comes With Warranty & Based on 0 reviews. Tech Land BD Offers you PROLINK 23AWG by 7,500৳ and its regular price is 7,900৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
