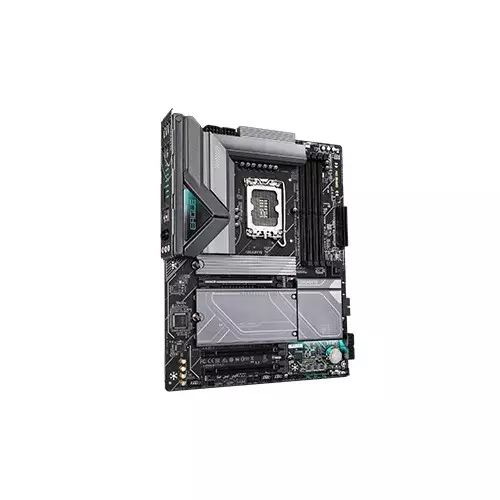

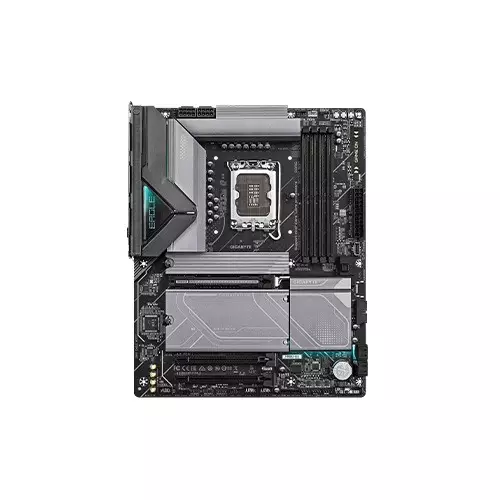

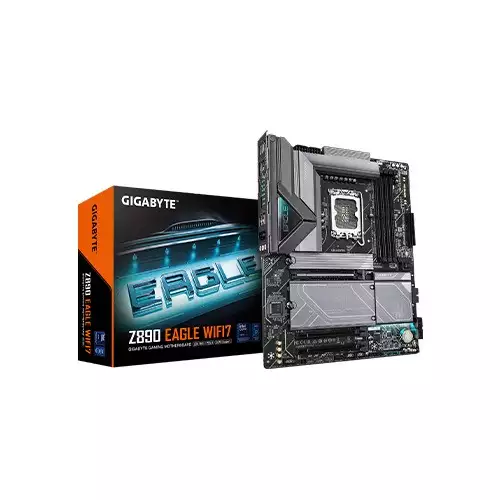

Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard
Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard
Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard - 1
Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard - 2
Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard - 3

Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506429
Brand : Gigabyte
Model : Z890 EAGLE
Warranty : 3-Years
  • ATX Form Factor
  • Intel Z890 Chipset
  • LGA 1851 Socket
  • 4 x Dual-Channel DDR5

SPECIFICATIONS

Processor

CPU Socket LGA1851

Mainboard

Chipset Intel Z890 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) /

8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) /

7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) /

6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Support CUDIMM memory module

(The CPU and memory configuration may affect the supported memory types,

data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Storage

Storage CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)


Chipset:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors


RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

- 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort

video outputs and a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version




- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version




(Graphics specifications may vary depending on CPU support.)

Networking & Connectivity

Wireless Connectivity MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands


- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands


- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software.

To configure 7.1-channel audio, access the audio software for audio settings.

Ports

I/O Port 1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x power button

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

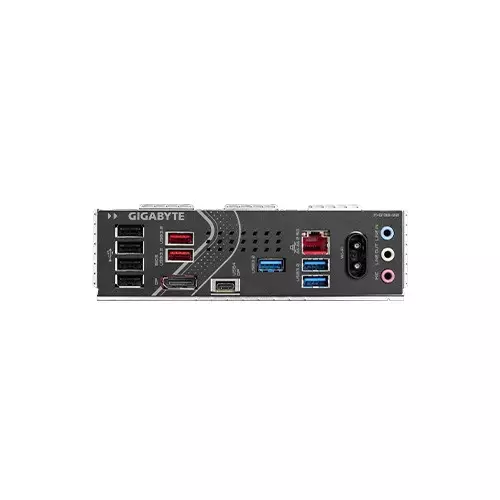

Connector 1 x USB4 USB Type-C port (DisplayPort (Note))

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x DisplayPort (Note)

2 x antenna connectors (2T2R)

1 x RJ-45 port

3 x audio jacks
USB CPU:

- 1 x USB4 USB Type-C port on the back panel


Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)


Chipset+2 USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Software

Bundled Software Norton Internet Security (OEM version)

LAN bandwidth management software
Operating System Support for Windows 11 64-bit

Special Features

Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model.

Supported functions of each application may also vary depending on motherboard specifications.



Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Others

Controller iTE I/O Controller Chip
Other Features H/W Monitoring:

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install

Physical Specification

Color Black
Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.




Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Form Factor ATX Form Factor; 30.5cm x 24.4cm

Technical Info

Model Z890 EAGLE

Warranty Information

Warranty 3 Years

DESCRIPTION

Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard in Bangladesh

Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard is a high-performance motherboard designed to support the latest Intel Core Ultra Processors. Equipped with the advanced Intel Z890 Express Chipset and DDR5 memory support, it ensures top-tier gaming and productivity. It also features Wi-Fi 7 and Bluetooth 5.4 for wireless connectivity, making it a reliable choice for both enthusiasts and professionals.


Technical Details

Gigabyte Z890 EAGLE WIFI7 DDR5 ATX motherboard comes with an LGA1851 socket supporting Intel Core Ultra Processors. It offers up to 256GB of DDR5 memory at impressive speeds of up to 8800MT/s. With a PCIe 5.0 x16 slot and additional PCIe 4.0 slots, it provides ample expansion opportunities. The motherboard supports multiple storage options, including four M.2 connectors and four SATA connectors, allowing for efficient NVMe and SATA SSD configurations. Its onboard Wi-Fi 7 and Bluetooth 5.4 modules ensure fast, stable wireless communication. Additionally, it features integrated Intel HD Graphics with support for high-resolution displays through USB4 and DisplayPort connectors.


Availability and Usability

Gigabyte Z890 EAGLE WIFI7 DDR5 ATX motherboard is readily available at Tech Land BD. Its cutting-edge features make it ideal for gaming, content creation, and demanding multitasking. With support for PCIe 5.0 and DDR5 memory, it is designed to future-proof your system. The built-in Wi-Fi 7 and multiple connectivity options ensure that this motherboard remains relevant as technology evolves. To check the Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard Price in BD, visit Tech Land BD for competitive pricing.


Highlights

  • Supports Intel Core Ultra Processors
  • DDR5 memory support up to 256GB at 8800MT/s
  • PCIe 5.0 x16 slot for cutting-edge GPUs
  • Integrated Wi-Fi 7 and Bluetooth 5.4
  • Four M.2 slots for high-speed storage options


Grab Your Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard from Tech Land BD Now!

Gigabyte Z890 EAGLE WIFI7 DDR5 ATX motherboard offers exceptional performance and advanced features at a competitive price point. Whether you’re upgrading your gaming rig or building a powerful workstation, this motherboard is the perfect foundation. Don’t miss out on the latest technology! Visit Tech Land BD today and secure yours. To find the Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard Price in Bangladesh, check out their online store and make your purchase before stock runs out!
