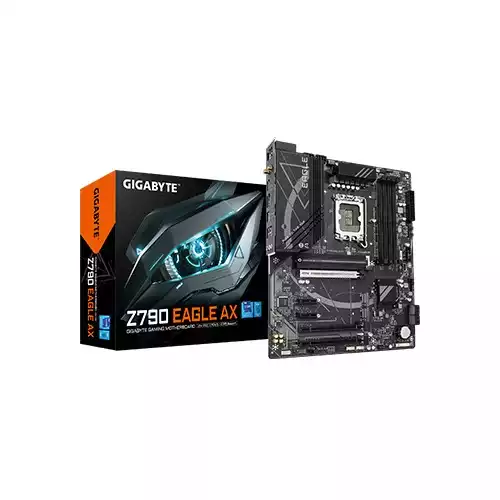

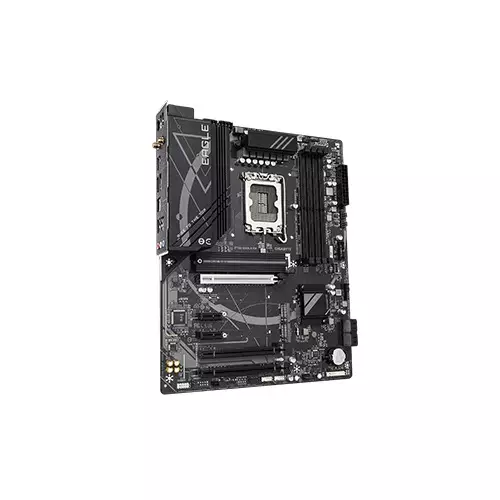

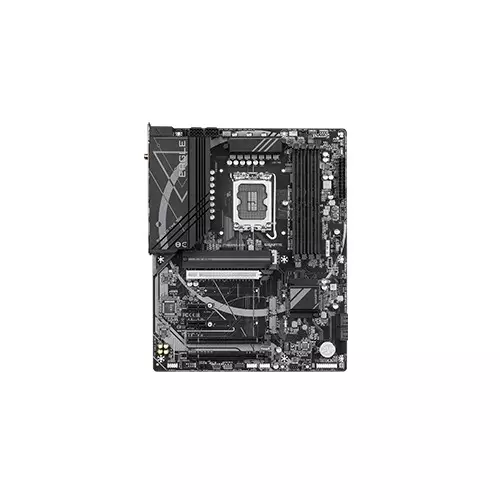

GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard
GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard
GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard - 1
GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard - 2
GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard - 3

GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506386
Brand : Gigabyte
Model : Z790 EAGLE AX
Warranty : 3 Years
  • Chipset: Intel Z790 Express Chipset
  • CPU: LGA1700 socket Support for the 14th, 13th, and 12th Gen
  • Memory: 14th and 13th Generation Intel
  • LAN: Realtek 2.5GbE LAN chip

SPECIFICATIONS

Processor

CPU Socket LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Mainboard

Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 14th and 13th Generation Intel Core i9/i7 Pocessors:

- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /

7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/
4800/4400 MT/s memory modules

13th Generation Intel® Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:

- Support for DDR5 4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of
DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Storage

Storage CPU:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics

GPU Chipset Integrated Graphics Processor-Intel HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Networking & Connectivity

Wireless Connectivity ntel® Wi-Fi 6E AX211 (PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

Realtek Wi-Fi 6E RTL8852CE(PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Ports

Internal I/O Ports 1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper
USB Chipset:

- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports, available through the internal USB headers

Software

Software Features
Norton Internet Security (OEM version)

LAN bandwidth management software

Others

Controller
iTE I/O Controller Chip

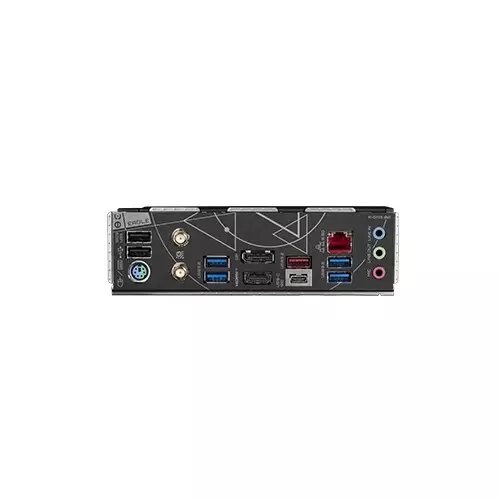

Other Features Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x USB Type-C port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

2 x SMA antenna connectors (1T1R)

1 x HDMI port

1 x DisplayPort

1 x RJ-45 port

3 x audio jacks

Physical Specification

Expansion Slots - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed,
be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Technical Info

OS Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty Information

Warranty 3 Years

DESCRIPTION

GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard in Bangladesh

GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard, now available at TechLand BD in Bangladesh. Designed to support the latest 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors, this motherboard boasts cutting-edge technology and robust features for gaming and professional use alike. With an LGA1700 socket and Intel® Z790 Express Chipset, enjoy seamless compatibility and exceptional performance for your computing needs. The motherboard supports up to 192GB of DDR5 memory across 4 DIMM sockets, offering incredible speed and multitasking capabilities. Integrated with Intel® HD Graphics support, including HDMI and DisplayPort outputs, immerse yourself in stunning visuals and vibrant colors. The Realtek® Audio CODEC delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations, ensuring an immersive audio experience. Connectivity options include Realtek® 2.5GbE LAN, Intel® Wi-Fi 6E AX211, and Realtek® Wi-Fi 6E RTL8852CE, providing fast and reliable network connectivity. Expansion slots include PCIe 5.0 and PCIe 4.0 for future-proof compatibility with the latest peripherals and graphics cards. Storage options abound with multiple M.2 connectors and SATA 6Gb/s ports, supporting RAID configurations for both NVMe SSDs and SATA storage devices. USB connectivity includes USB Type-C® ports, USB 3.2 Gen 2 support, and USB 2.0/1.1 ports for seamless connectivity to external devices. The motherboard also features a range of internal I/O connectors, including fan headers, RGB headers, and Thunderbolt™ add-in card connectors, offering flexibility and customization options. With advanced features such as GIGABYTE Control Center (GCC) support, Q-Flash, and Smart Backup, streamline your computing experience and enhance productivity. Compatible with Windows 11 and Windows 10 64-bit operating systems, the GIGABYTE Z790 EAGLE AX motherboard offers reliability, performance, and versatility for your computing needs.


GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard  at Tech Land BD

Tech Land BD is your go-to place for the authentic GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard . Our wide range of the most recent GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard is available for purchase. Order online or visit the closest Tech Land BD shop to get yours at the best price. Plus, the GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard includes a 03 year warranty.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte Z790 EAGLE AX Price in BD is 31,800৳ . This GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z790 EAGLE AX by 31,800৳ and its regular price is 32,500৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
