GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD
GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD

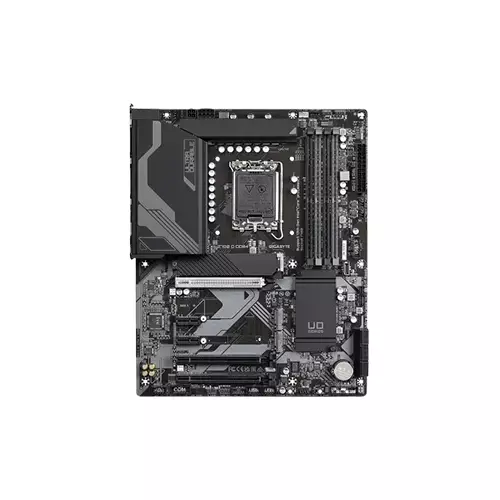

GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD - 1
GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD - 2

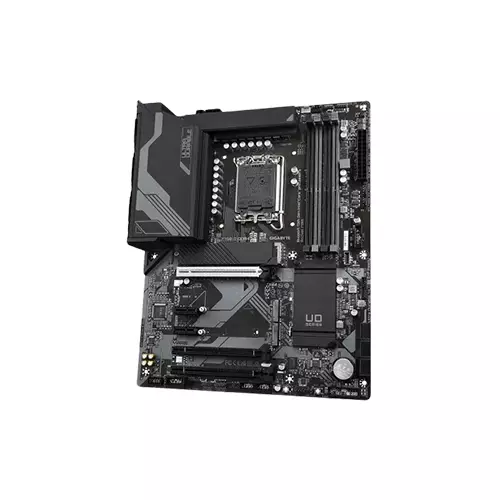

GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD - 3

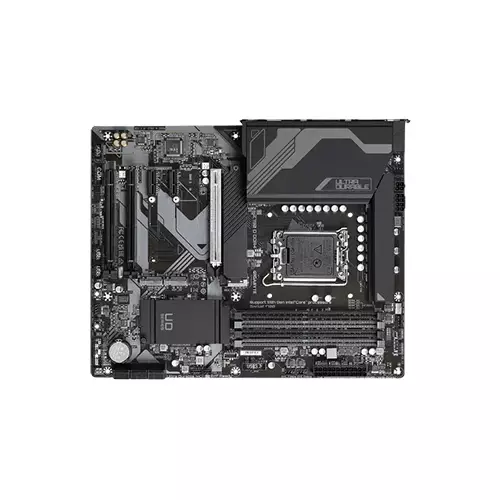

GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD - 4
GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD - 5

GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD

1 Reviews
Stock : In Stock
PID : P0392506288
Brand : Gigabyte
Model : Z790 D
Warranty : 3 Years
  • Supported CPU: 13th Gen & 12th Gen Series (LGA1700 Socket)
  • Supported RAM: 4 x DDR4 DIMMs, up to 5333(O.C.)
  • Graphics Output: 1 x HDMI, 1 x DisplayPort
  • Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors

Product Pricing

Discount Price

৳28,800 ৳29,500
+ Available Payment Method

EMI Start From*

৳1,014

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

L3 cache varies with CPU

Mainboard

Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Type:
DDR4

Slots:
4 x DIMM sockets

Supported Memory:
5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/
4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) /
3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory
modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory:

128GB (32 GB single DIMM capacity)

Storage

Supported Storage CPU:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)

6 x SATA 6Gb/s connectors


RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Networking & Connectivity

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Ports

Slots Expansion Slots:

PCI

CPU:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)

2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

2 x Thunderbolt add-in card connectors

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper


TPM (Trusted Platform Module ):

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

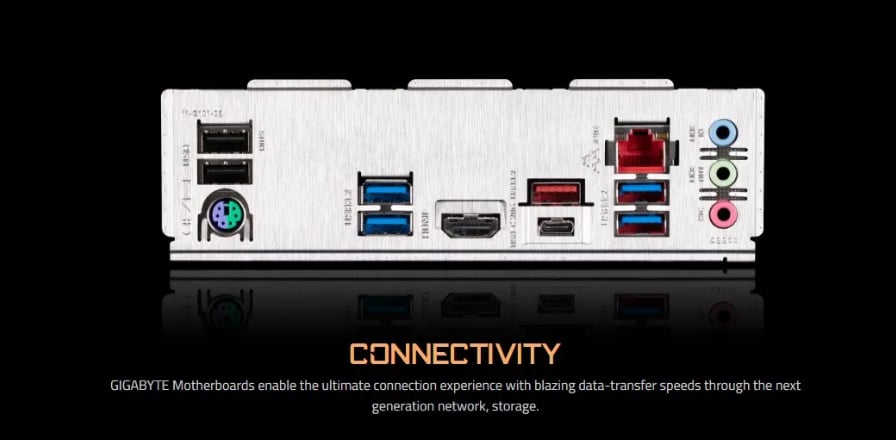

External I/O Ports Display Port (s)

1 x DisplayPort

Audio:

3 x audio jacks
USB 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+1 USB 2.0 Hub:

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
HDMI 1 x HDMI

Special Features

Special Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Others

Other Features Bundled Software:

Norton Internet Security (OEM version)

LAN bandwidth management software

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD IN BANGLADESH

The Gigabyte Z790 D DDR4 (Rev. 1.0) 12th & 13th Gen ATX Motherboard is a powerful motherboard that supports the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors with an LGA1700 socket. It features an Intel Z790 Express Chipset and a BIOS with 1 x 256 Mbit flash and licensed AMI UEFI BIOS.




The ATX form factor of the motherboard measures 30.5cm x 24.4cm, and it supports high-definition audio with a Realtek Audio CODEC with 2/4/5.1/7.1-channel audio. For expansion, the motherboard has a PCI Express x16 slot that supports PCIe 5.0 and runs at x16 (PCIEX16) for optimum performance with a single PCI Express graphics card installed. It also has a PCI Express x16 slot that supports PCIe 4.0 and runs at x4 (PCIEX4), a PCI Express x16 slot that supports PCIe 3.0 and runs at x1 (PCIEX1_4), and two PCI Express x1 slots that support PCIe 3.0 and run at x1 (PCIEX1_2, PCIEX1_3). The motherboard also supports AMD CrossFire technology (PCIEX16 and PCIEX4).




For memory, the motherboard has four DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory with a dual-channel memory architecture. It supports various memory modules ranging from 2133 MHz to 5333 MHz, including Extreme Memory Profile (XMP) memory modules. It also supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) and non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.



The motherboard also features an integrated Graphics Processor-Intel HD Graphics support with a maximum resolution of 4096x2160@60 Hz through the HDMI port and 4096x2304@60 Hz through the DisplayPort. For connectors and ports, it has USB Type-C, USB 3.2 Gen 2x2, USB 3.2 Gen 2 Type-A, and USB 3.2 Gen 1 ports, as well as a Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) and six SATA 6Gb/s connectors for storage. It also supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD and SATA storage devices. Order from Techland BD to get the original product.

REVIEWS

Login to write a review.

Overall Rating

5 out of 5 stars
1
Total Reviews
5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
Zerin

The GIGABYTE Z790 D DDR4 motherboard is a great choice for anyone looking to build a high-performance PC. It has plenty of features, including multiple M.2 slots, and the BIOS is easy to navigate. The build quality is excellent, and I haven't experienced any issues so far.

13 March, 2023

What is the GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte Z790 D Price in BD is 28,800৳ . This GIGABYTE Z790 D DDR4 (REV. 1.0) 12TH & 13TH GEN ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 1 reviews. Tech Land BD Offers you Gigabyte Z790 D by 28,800৳ and its regular price is 29,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
