product price | 31,000৳ |
special price | 30,200৳ |
Stock Status | In Stock |
Product ID | 36552 |
Brand | Gigabyte |
Product model | Z790 D AC |
Warranty | 3 Years |
Total Reviews | Based on 0 reviews. - Write a review |
Cash Discount Price
EMI Price*
Click here to view 27 banks EMI Plans
- Stock availability is subject to change. Please confirm availability before shopping by calling us.
- The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
- Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
- We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor | |
CPU Socket | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
Mainboard | |
Chipset | Intel Z790 Express Chipset |
Memory | |
Memory Platform | 14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) / 6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
Storage | |
Storage Type | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
Graphics | |
Graphics Chipset | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
Audio & Microphone | |
Audio Technology | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
Networking & Connectivity | |
Wireless Connectivity | Intel Wireless- AC 9560 (PCB rev. 1.0) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.1 - Support 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Ports | |

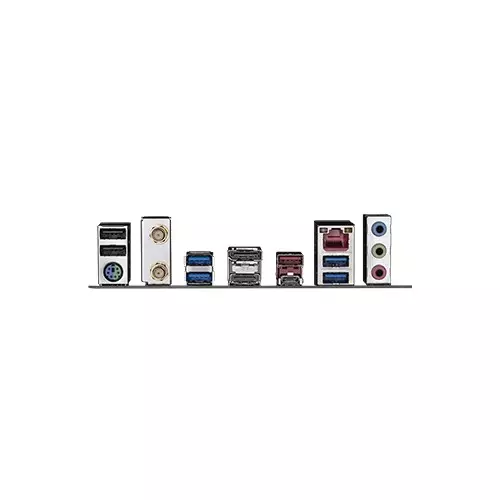

Connector | Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
USB | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers |
Technical Info | |
Supported OS |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
Controller | I/O Controller iTE I/O Controller Chip |
BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Special Features | |
Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
Software | Norton Internet Security (OEM version) LAN bandwidth management software |
Physical Specification | |
Form Factor | ATX |
Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4) - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_3) |
Dimension | 30.5cm x 24.4cm |
Warranty Information | |
Warranty | 3 Years |

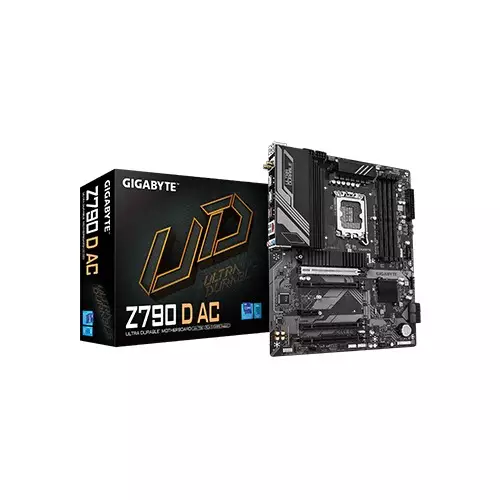

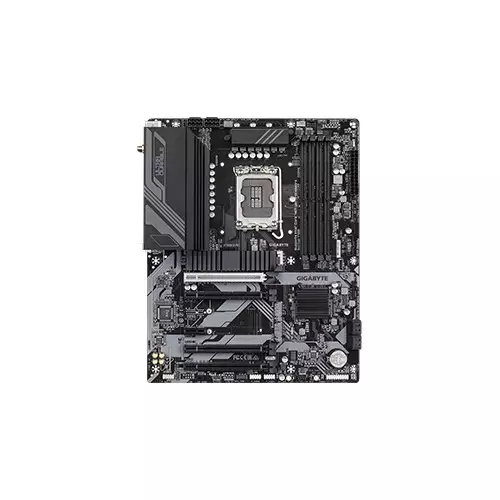

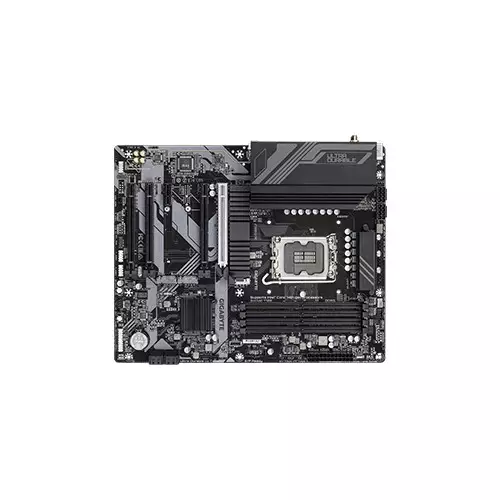

GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard in Bangladesh
GIGABYTE Z790 D AC 14th, 13th, and 12th Gen ATX Motherboard, now available at TechLand BD in Bangladesh. Engineered to support the latest 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors, this motherboard offers exceptional performance and versatility for both gaming and professional applications. Featuring an LGA1700 socket and Intel Z790 Express Chipset, this motherboard delivers unparalleled compatibility and reliability. With support for up to 192GB of DDR5 memory across 4 DIMM sockets, dual-channel memory architecture, and Extreme Memory Profile (XMP) support, unleash the full potential of your system with blazing-fast memory speeds. Integrated with Intel HD Graphics support, including HDMI and DisplayPort outputs, immerse yourself in stunning visuals and vibrant colors for an unparalleled gaming and multimedia experience. The Realtek Audio CODEC provides high-definition audio with support for 2/4/5.1/7.1-channel configurations, ensuring crystal-clear sound for your entertainment needs. Stay connected with Realtek 2.5GbE LAN and Intel® Wireless-AC 9560, offering fast and reliable network connectivity. Expansion slots include PCIe 5.0 and PCIe 4.0 for seamless compatibility with the latest peripherals and graphics cards. Storage options abound with multiple M.2 connectors and SATA 6Gb/s ports, supporting RAID configurations for both NVMe SSDs and SATA storage devices. USB connectivity includes USB Type-C ports, USB 3.2 Gen 2 support, and USB 2.0/1.1 ports for seamless connectivity to external devices. With advanced features such as GIGABYTE Control Center (GCC) support, Q-Flash, and Smart Backup, streamline your computing experience and enhance productivity. Compatible with Windows 11 and Windows 10 64-bit operating systems, the GIGABYTE Z790 D AC motherboard offers reliability, performance, and versatility for your computing needs.
GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard at Tech Land BD
Tech Land BD is your go-to place for the authentic GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard . Our wide range of the most recent GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard is available for purchase. Order online or visit the closest Tech Land BD shop to get yours at the best price. Plus, the GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard includes a 03 year warranty.
