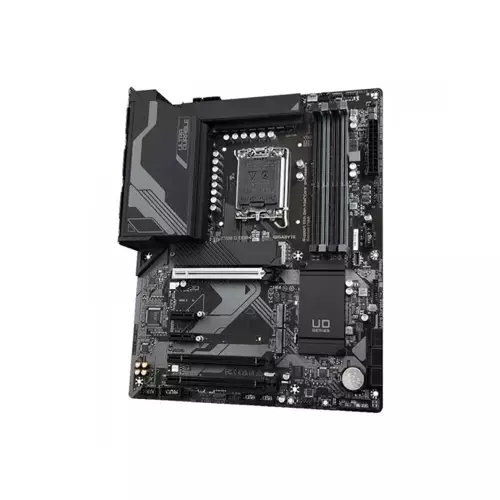

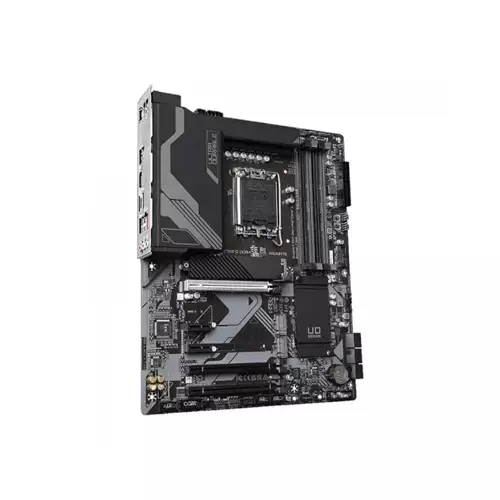

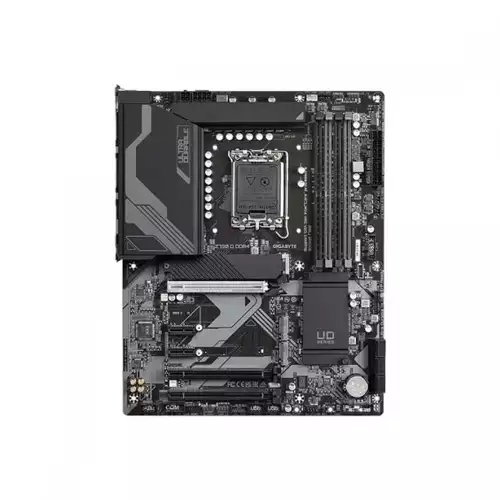

GIGABYTE Z790 UD AX 13TH & 12TH GEN DDR5 ATX MOTHERBOARD
- Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMMs, up to 5333(O.C.)
- Graphics Output: 1 x HDMI, 1 x DisplayPort
- Features: 2.5GbE LAN
SPECIFICATIONS
Processor
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
L3 cache varies with CPU
Mainboard
Chipset
Intel® Z790 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.)
/6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) /
5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
/6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) /
5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Networking & Connectivity
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio & Microphone
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Ports
Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
USB
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+1 USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+1 USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
HDMI
1 x HDMI port
Special Features
Special Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Others
Other Features

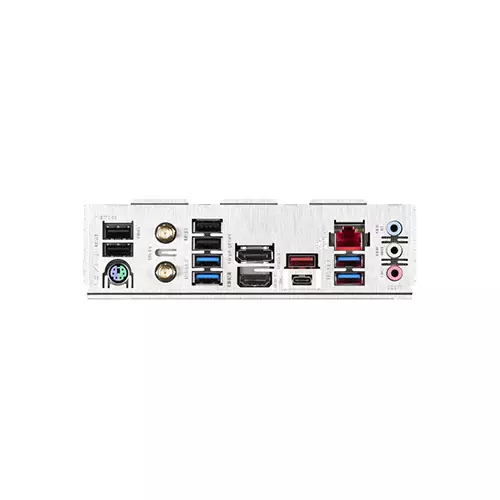

Back Panel Connectors:
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x RJ-45 port
3 x audio jacks
I/O Controller:
iTE® I/O Controller Chip
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x RJ-45 port
3 x audio jacks
I/O Controller:
iTE® I/O Controller Chip
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Physical Specification
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
Warranty
3 Years
DESCRIPTION
GIGABYTE Z790 UD AX 13TH & 12TH GEN DDR5 ATX MOTHERBOARD
GIGABYTE Z790 UD AX 13th & 12th Gen DDR5 ATX Motherboard. This is a description of a motherboard that supports 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors with an LGA1700 socket. The motherboard features the Intel Z790 Express Chipset and has a maximum memory capacity of 128GB (32GB single DIMM capacity). It also has 4 DDR DIMM sockets supporting up to 128GB of system memory with dual channel memory architecture, and supports Extreme Memory Profile (XMP) memory modules.
The audio is provided by Realtek Audio CODEC and is high definition audio with 2/4/5.1/7.1-channel support. The audio software can be used to configure 7.1-channel audio. The motherboard has integrated graphics support for Intel HD Graphics, with 1 HDMI port and 1 DisplayPort, both supporting high resolutions. Special features of the motherboard include support for GIGABYTE Control Center, Q-Flash, Q-Flash Plus, and Smart Backup. The motherboard comes with bundled software including Norton Internet Security and LAN bandwidth management software. The motherboard has a manufacturing warranty of 3 years. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Gigabyte Z790 UD AX DDR5 Motherboard available at Techland BD is well recognized. The large selection of Gigabyte Z790 UD AX DDR4 Motherboard available at Techland BD is well recognized.
REVIEWS
Login to write a review.
Overall Rating
2
Total Reviews
5 star
2
4 star
0
3 star
0
2 star
0
1 star
0
Arju moni
"I have been using this motherboard for a while now, and it has exceeded my expectations. It's a great value for money and offers everything you need for a high-end gaming PC."
13 March, 2023
Alamin
I would highly recommend the GIGABYTE Z790 UD AX DDR5 motherboard to anyone building a high-performance PC. The DDR5 memory support and multiple M.2 slots make it a great investment, and the build quality is excellent. The only downside is the lack of Thunderbolt 4 support, but it's a minor issue.
13 March, 2023
What is the GIGABYTE Z790 UD AX 13TH & 12TH GEN DDR5 ATX MOTHERBOARD Price in Bangladesh 2026 ?
The Gigabyte Z790 UD AX Price in BD is 31,400৳ . This GIGABYTE Z790 UD AX 13TH & 12TH GEN DDR5 ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 2 reviews. Tech Land BD Offers you Gigabyte Z790 UD AX by 31,400৳ and its regular price is 32,000৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
