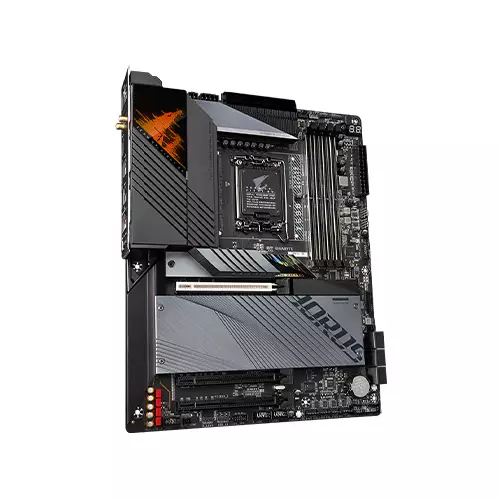

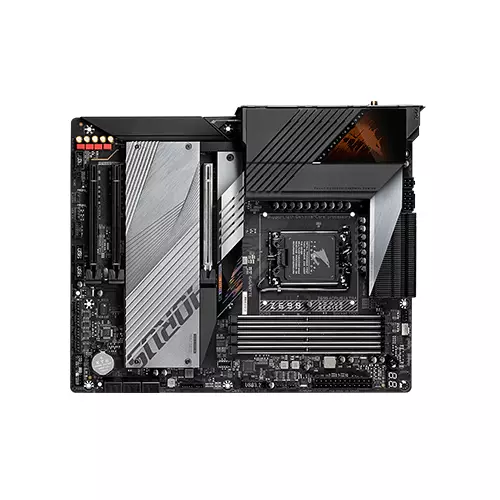

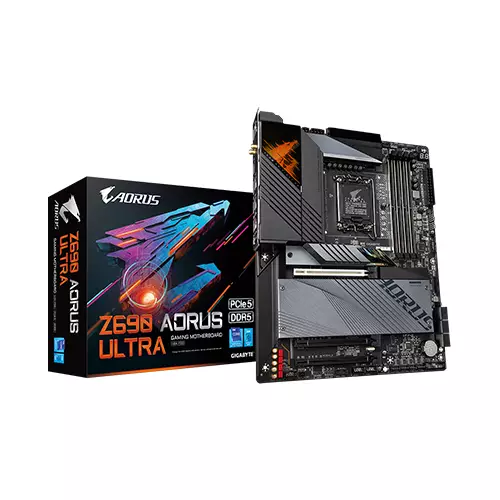

GIGABYTE Z690 AORUS ULTRA DDR5 ATX 12TH GEN INTEL MOTHERBOARD
GIGABYTE Z690 AORUS ULTRA DDR5 ATX 12TH GEN INTEL MOTHERBOARD
GIGABYTE Z690 AORUS ULTRA DDR5 ATX 12TH GEN INTEL MOTHERBOARD - 1
GIGABYTE Z690 AORUS ULTRA DDR5 ATX 12TH GEN INTEL MOTHERBOARD - 2
GIGABYTE Z690 AORUS ULTRA DDR5 ATX 12TH GEN INTEL MOTHERBOARD - 3

GIGABYTE Z690 AORUS ULTRA DDR5 ATX 12TH GEN INTEL MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506229
Brand : Gigabyte
Model : Z690 AORUS ULTRA
Warranty : 3 years
  • Supported CPU: LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Proce...
  • Memory: Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C...
  • Supported Storage: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support)...
  • LAN: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Product Pricing

Discount Price

৳44,600 ৳45,200
+ Available Payment Method

EMI Start From*

৳1,570

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for 12th Generation
Intel® Core™, Pentium® Gold and Celeron® Processors*

L3 cache varies with CPU

Mainboard

Chipset Intel Z690 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) /
5200(O.C.) / 4800 / 4000 MHz memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage
CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)

2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

6 x SATA 6Gb/s connectors

Graphics

Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Networking & Connectivity

LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5.2

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.
Bluetooth BLUETOOTH 5.2

Audio & Microphone

Audio Realtek® ALC4080 CODEC

Support for DTS:X® Ultra

High Definition Audio

2-channel analog output

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 5.0 standard.)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x power button

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

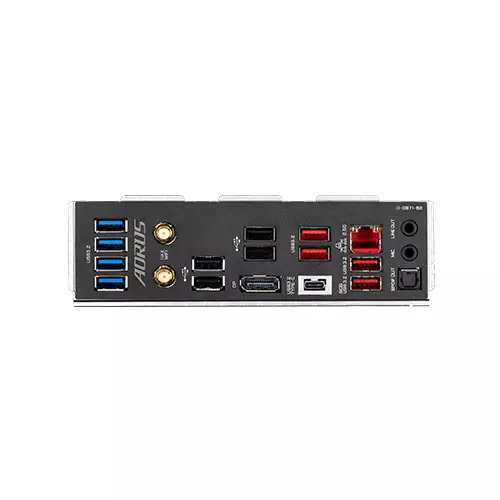

External I/O Ports 2 x SMA antenna connectors (2T2R)

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

4 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks
USB
Chipset:

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor ATX Form Factor
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

Gigabyte Z690 AORUS ULTRA DDR5 Motherboard in Bangladesh

Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platforms continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory.

UNPARALLELED PERFORMANCE

With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solutions, the latest storage standards and outstanding connectivity to enable optimized performance for gaming.​

XTREME MEMORY

GIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. ​

IMPRESSIVE PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. ​

Q-FLASH PLUS

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! ​

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE Z690 AORUS ULTRA DDR5 ATX 12TH GEN INTEL MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte Z690 AORUS ULTRA Price in BD is 44,600৳ . This GIGABYTE Z690 AORUS ULTRA DDR5 ATX 12TH GEN INTEL MOTHERBOARD Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z690 AORUS ULTRA by 44,600৳ and its regular price is 45,200৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
