GIGABYTE Z590 UD LGA 1200 Intel ATX Motherboard
GIGABYTE Z590 UD LGA 1200 Intel ATX Motherboard

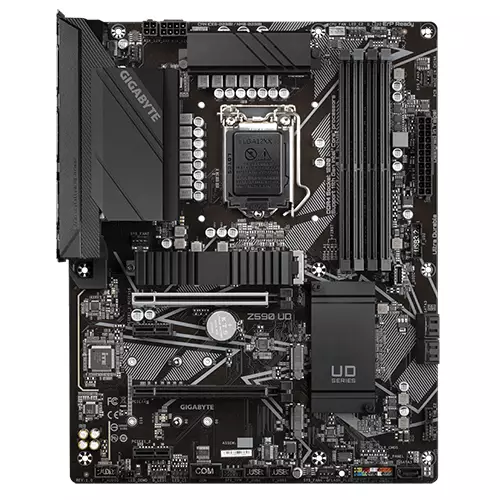

GIGABYTE Z590 UD LGA 1200 Intel ATX Motherboard - 1
GIGABYTE Z590 UD LGA 1200 Intel ATX Motherboard - 2

GIGABYTE Z590 UD LGA 1200 Intel ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506119
Brand : Gigabyte
Model : Z590 UD
Warranty : 3 years
  • Supported CPU: processors 11th Gen, 10th Gen
  • Chipset: Intel Z590 Express Chipset
  • LAN: ChipsetRealtek 2.5GbE LAN LAN Speed
  • Audio: Realtek audio CODEC Audio Channel

Product Pricing

Discount Price

৳20,500 ৳21,000
+ Available Payment Method

EMI Start From*

৳722

SPECIFICATIONS

Processor

Supported CPU LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU

Mainboard

Chipset Intel Z590 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Memory TypeDDR4
Memory MHz5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Memory ChannelDual
Memory Slot4
Memory Max.128GB
Optane Memory SupportYes

Storage

Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
*Supported by 11th Generation processors only.
Chipset:
2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready

Graphics

Graphics GraphicsIntel HD Graphics
Multi-GPU SupportAMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
PCI Express Slot1 x PCI Express x16 running at x16 (PCIEX16), 1 x PCI Express x16 running at x4 (PCIEX4), 2 x PCI Express x1

Networking & Connectivity

LAN LAN ChipsetRealtek 2.5GbE LAN
LAN Speed (Mbps)2.5 Gbit/1 Gbit/100 Mbit

Audio & Microphone

Audio Audio Chipset.Realtek audio CODEC
Audio Channel2/4/5.1/7.1

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x Q-Flash Plus button
5 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
External I/O Ports 1 x PS/2 keyboard/mouse port
1 x DisplayPort
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB Chipset:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte Z590 UD Motherboard

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact
  • Fast 2.5GbE LAN with Bandwidth Management
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
  • USB 3.2 Gen2 and Front USB Type-C® for Fast and Versatile Connections
  • Pre-installed IO Shield for Easy and Quick Installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    •  STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card



[product_table id="34" limit="10" type="filter" filter_category="139"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE Z590 UD LGA 1200 Intel ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte Z590 UD Price in BD is 20,500৳ . This GIGABYTE Z590 UD LGA 1200 Intel ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z590 UD by 20,500৳ and its regular price is 21,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
