Gigabyte Z590 GAMING X LGA 1200 ATX Motherboard
- Chipset: Intel Z590 Express Chipset
- Supported CPU: 11th Gen, 10th Gen Processor
- LAN: Realtek 2.5GbE LAN chip
- Audio: Realtek Audio codec High Definition Audio
Product Pricing
EMI Start From*
৳690
SPECIFICATIONS
Processor
Supported CPU
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU
Mainboard
Chipset
Intel Z590 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
Storage
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
*Supported by 11th Generation processors only.
Chipset:
2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
*Supported by 11th Generation processors only.
Chipset:
2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz.
*Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz.
*Support for DisplayPort 1.2 version and HDCP 2.3
Networking & Connectivity
LAN
Realtek 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)
Audio & Microphone
Audio
Realtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Ports
Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

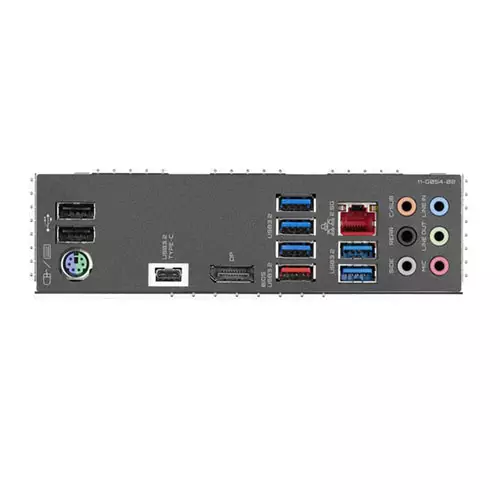

External I/O Ports
1 x PS/2 keyboard/mouse port
1 x USB Type-C® header, with USB 3.2 Gen2 support
1 x DisplayPort
1 x USB 3.2 Gen 2 Type-A port (red)
5 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
1 x USB Type-C® header, with USB 3.2 Gen2 support
1 x DisplayPort
1 x USB 3.2 Gen 2 Type-A port (red)
5 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
USB
1 x USB Type-C® port on the back panel, with USB 3.2 Gen2 support
1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
1 x USB 3.2 Gen2 Type-A port (red) on the back panel
7 x USB 3.2 Gen1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
Chipset+ 2 USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
1 x USB 3.2 Gen2 Type-A port (red) on the back panel
7 x USB 3.2 Gen1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
Chipset+ 2 USB 2.0 Hub:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Physical Specification
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
Warranty
03 Years
DESCRIPTION

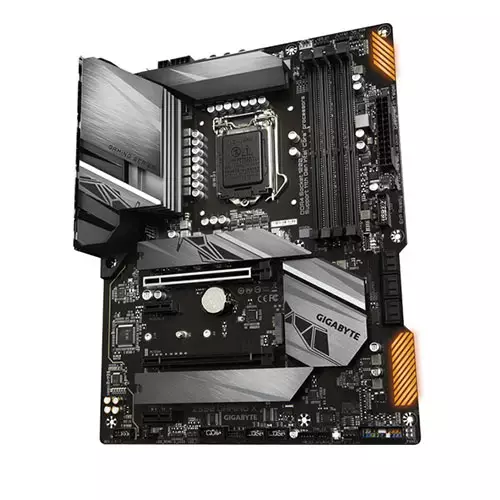

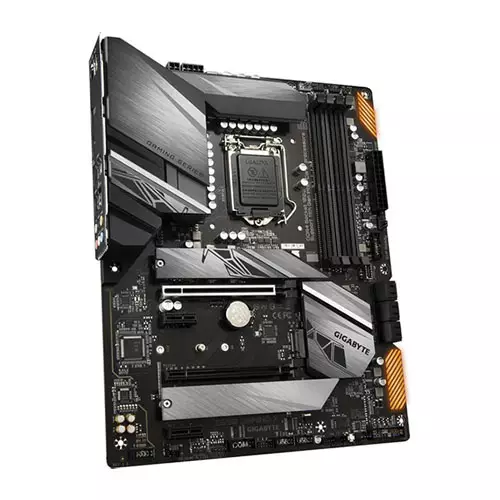

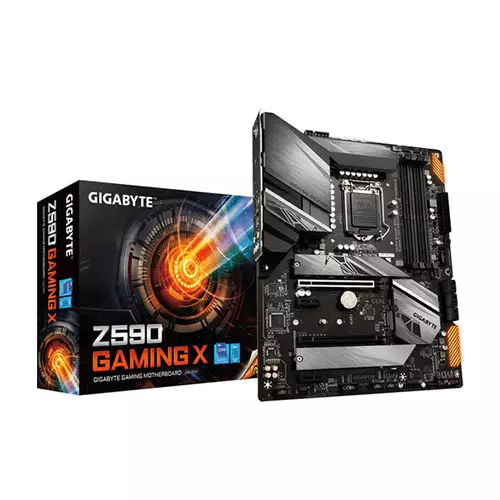

Gigabyte Z590 GAMING X Motherboard
The Z590 GAMING X LGA 1200 ATX Motherboard from GIGABYTE. Whether you are upgrading or starting a fresh build, you will find a wide range of capabilities within the Z590 GAMING X, making this ideal for any builder focusing on gaming-based components. The Z590 chipset gives you access to an Intel LGA 1200 socket, suitable for a variety of processors. Four dual-channel DDR4 RAM slots can handle memory modules up to 5333 MHz (O.C.) for enhanced multitasking capabilities. Six SATA III and three M.2 storage interfaces allow you to install various storage drives including PCIe 3.0 and 4.0 NVMe solid-state drives for enhanced system performance. You can use various graphics and utility cards with one PCIe 4.0 x16, one PCIe 3.0 x16, and two PCIe 3.0 x1 slots. USB 3.2 Gen 1 and Gen 2 ports allow you to experience enhanced transfer speeds for external storage devices as well as resource-demanding peripherals. A 2.5 GbE RJ-45 port is available for enhanced network performance, essential for competitive online gaming. Various addressable RGB headers allow you to set up custom lighting effects for a truly unique style.
[product_table id="34" limit="10" type="filter" filter_category="139"]
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the Gigabyte Z590 GAMING X LGA 1200 ATX Motherboard Price in Bangladesh 2026 ?
The Gigabyte Z590 GAMING X Price in BD is 19,600৳ . This Gigabyte Z590 GAMING X LGA 1200 ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z590 GAMING X by 19,600৳ and its regular price is 20,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
