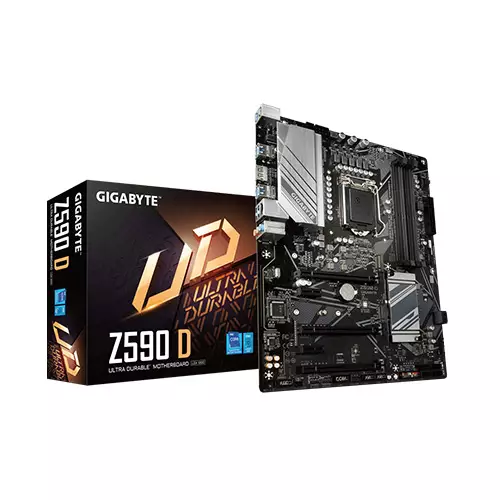

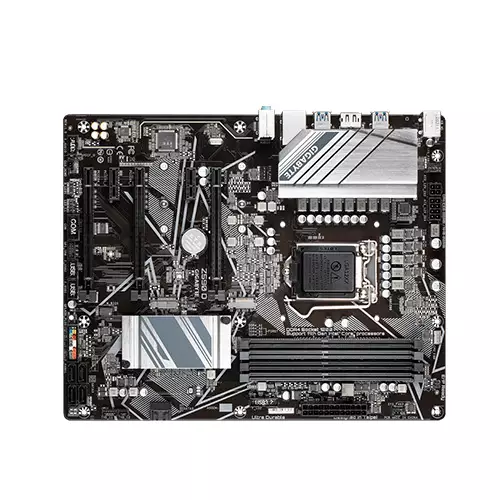

Gigabyte Z590 D LGA1200 10th and 11th Gen ATX Motherboard
Gigabyte Z590 D LGA1200 10th and 11th Gen ATX Motherboard
Gigabyte Z590 D LGA1200 10th and 11th Gen ATX Motherboard - 1
Gigabyte Z590 D LGA1200 10th and 11th Gen ATX Motherboard - 2

Gigabyte Z590 D LGA1200 10th and 11th Gen ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506174
SKU : Z590-D
Brand : Gigabyte
Model : Z590 D
Warranty : 3 years
  • Supports 10th and 11th Gen Processors
  • Dual Ultra-Fast NVMe SSD Slots
  • Direct 12+1 Phases Digital VRM
  • Exclusive 8118 Gaming LAN

Product Pricing

Discount Price

৳18,499 ৳19,000
+ Available Payment Method

EMI Start From*

৳651

SPECIFICATIONS

Processor

Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
L3 cache varies with CPU

Mainboard

Chipset Intel Z590 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 11th Generation Intel Core i9/i7/i5 processors:

Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/i3/Pentium/Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual-channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel Optane Memory Ready

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbit/100 Mbit)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)

(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

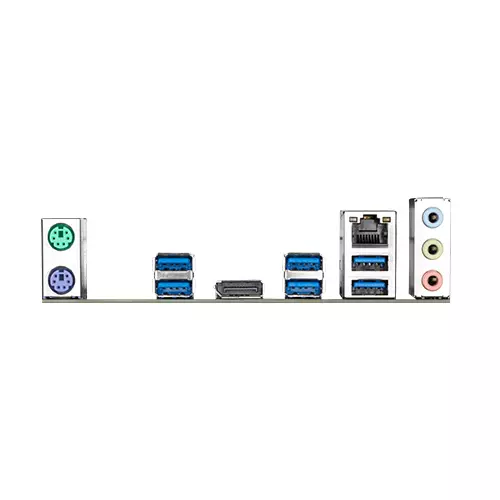

External I/O Ports 1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x DisplayPort

6 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks
USB 8 x USB 3.2 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports are available through the internal USB headers

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Features

  • Supports 11th and 10th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Shielded Memory Routing for Better Memory Overclocking
  • Enlarged VRM Heatsink with Multi-Cut to increase surface contact
  • Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card

Gigabyte Z590 D 11th Gen ATX Motherboard in Bangladesh

Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte Z590 D Motherboard. To squeeze every ounce of performance from the new 11th Generation Intel CPUs this ultra-durable motherboard boasts an updated digital power design, access to PCIe 4.0 technology, a comprehensive cooling solution with enlarged VRM heatsinks to enhance heat dissipation, Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2, a super-fast GbE Gaming LAN, and support for Gigabytes RGB Fusion 2.0 Software to control and synchronize lighting across compatible products. The Gigabyte Z590 D is perfect for daily users and mainstream enthusiasts looking to push the modern boundaries of performance. So start with a strong foundation; now is your chance.

PURE DIGITAL POWER DESIGN

The Z590 D motherboard uses a 12+1 phase digital CPU power design that includes a digital PWM Controller. These 100% digital controllers and additional 8+4 Solid-pin CPU Power Connectors offer cleaner and more efficient power delivery to the CPU with more extraordinary thermal performance ensuring stability under high frequencies and heavy loads.

SUPPORT FOR DDR4 XMP UP TO 4800MHZ AND BEYOND

Gigabyte Z590 D Motherboard Price offers a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. To attain this performance boost, all users need to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

A Fully Comprehensive Thermal Solution

A comprehensive cooling solution is needed to get the highest possible performance from the latest high-core Intel processors. The Z590 D uses an Advanced Thermal Design with an enlarged Mosfet heatsink that incorporates grooves to increase the total contact surface while still managing to maintain a beautiful aesthetic this also includes Smart Fan 6 technology which provides for several unique cooling features that ensure gaming PC maintain its performance while staying calm and quiet. In addition, multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via the intuitive user interface.
