Gigabyte Z590 Aorus Xtreme Lga 1200 Eatx Motherboard
Gigabyte Z590 Aorus Xtreme Lga 1200 Eatx Motherboard
Gigabyte Z590 Aorus Xtreme Lga 1200 Eatx Motherboard - 1
Gigabyte Z590 Aorus Xtreme Lga 1200 Eatx Motherboard - 2

Gigabyte Z590 Aorus Xtreme Lga 1200 Eatx Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506132
Brand : Gigabyte
Model : Z590 Aorus Xtreme
Warranty : 3 years
  • Supported CPU: GA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors /...
  • Memory: 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5400 (O.C) / DDR4 5333(...
  • Supported Storage: CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support)...
  • LAN: 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) 1 x Intel® 2....

SPECIFICATIONS

Processor

Supported CPU GA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU

Mainboard

Chipset Intel Z590 Express Chipset
BIOS 2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel® Core™ i9/i7 processors
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
* Supported by 11th Generation processors only.
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors

Graphics

Graphics 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp (via single display output)
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Networking & Connectivity

LAN 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)

Audio & Microphone

Audio Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
6 x system fan headers
2 x system fan/water cooling pump headers
1 x noise detection header
2 x integrated extension cable headers for addressable and RGB LED strips
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 headers
2 x temperature sensor headers
1 x power button
1 x reset button
1 x OC Ignition button
2 x BIOS switches
Voltage Measurement Points

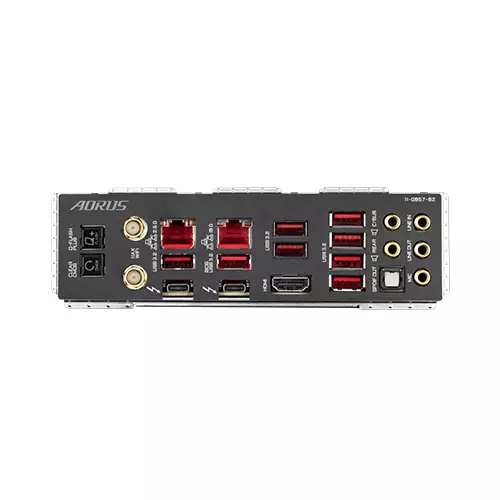

External I/O Ports 1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt™ 4 connector (USB Type-C® port, with USB 3.2 Gen 2 support)
8 x USB 3.2 Gen 2 Type-A ports (red)
1 x HDMI port
2 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
USB Chipset+Intel® Thunderbolt™ 4 Controller:
2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+2 USB 3.2 Gen 2 Hubs:
6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extension cable)

Physical Specification

Form Factor E-ATX Form Factor; 30.5cm x 27cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte Z590 Aorus Xtreme Motherboard

UNPARALLELED PERFORMANCE

To unleash the full potential of the new Intel 11th Gen CPU, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, Z590 AORUS XTREME is a true beast among motherboards.

THERMAL REACTIVE ARMOR

Z590 AORUS XTREME uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming.

CONNECTIVITY
A Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Z590 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
PERSONALIZATION
Z590 AORUS XTREME provides full lighting effect and customization settings with outstanding aesthetics, enable enthusiasts to build gaming PC differently.

ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z590 AORUS XTREME and reinforce every slot to make each of them solid and durable.

Related Video:


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte Z590 Aorus Xtreme Lga 1200 Eatx Motherboard Price in Bangladesh 2026 ?

The Gigabyte Z590 Aorus Xtreme Price in BD is 65,829৳ . This Gigabyte Z590 Aorus Xtreme Lga 1200 Eatx Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z590 Aorus Xtreme by 65,829৳ and its regular price is 67,829৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
