Name: Gigabyte Z590 AORUS PRO AX LGA 1200 ATX Motherboard
Brand: Gigabyte
Availability: OutOfStock

Gigabyte Z590 AORUS PRO AX LGA 1200 ATX Motherboard

-100 % Out Of Stock

Gigabyte Z590 AORUS PRO AX LGA 1200 ATX Motherboard
Stock Status	Out Of Stock
Product ID	16460
Brand	Gigabyte
Product model	Z590 AORUS PRO AX
Warranty	3 years
Total Reviews	Based on 0 reviews. - Write a review

Based on 0 reviews. - Write a review

Out Of Stock

Add to Wish List Compare this Product

Short Description

Chipset: Intel Z590 Express Chipset

LAN: Intel 2.5GbE LAN chip

Supported CPU: 11th Gen/10th Gen

ATX Form Factor; 30.5cm x 24.4cm

View details

Product Information Declaimer

Stock availability is subject to change. Please confirm availability before shopping by calling us.
The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.

Processor
Supported CPU	LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Mainboard
Chipset	Intel Z590 Express Chipset
Memory
Memory	11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) * 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU) Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Audio & Microphone
Audio	Realtek® ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Networking & Connectivity
LAN	Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Ports
Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. * The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.)
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button

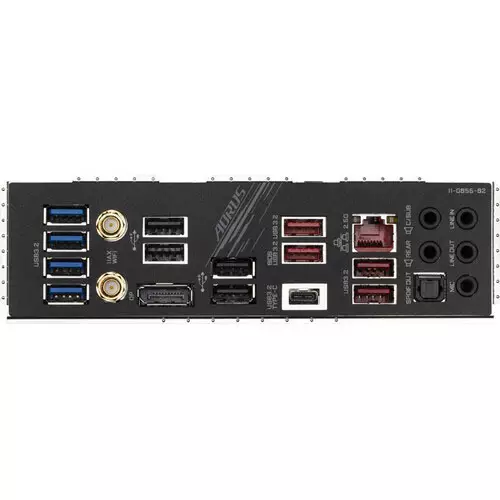

External I/O Ports	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
USB	Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header) Chipset+USB 3.2 Gen1 Hubs: 4 x USB 3.2 Gen1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Technical Info
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Physical Specification
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
Warranty	03 Years

Gigabyte Z590 AORUS PRO AX Motherboard

The Z590 AORUS PRO AX LGA 1200 ATX Motherboard from GIGABYTE. Whether you are upgrading or starting a fresh build, you will find a wide range of capabilities within the Z590 AORUS PRO AX, making this ideal for any builder focusing on gaming-based components. The Z590 chipset gives you access to an Intel LGA 1200 socket, suitable for a variety of processors. Four dual-channel DDR4 RAM slots can handle memory modules up to 3200 MHz for enhanced multitasking capabilities. Six SATA III and four M.2 storage interfaces allow you to install various storage drives including PCIe 3.0 and 4.0 NVMe solid-state drives for enhanced system performance. You can use various graphics and utility cards with one PCIe 4.0 x16 and two PCIe 3.0 x16 slots. USB 3.2 Gen 2x2 and Gen 2 ports allow you to experience enhanced transfer speeds for external storage devices as well as resource-demanding peripherals. Wi-Fi 6 (802.11ax) connectivity allows you to connect to your wireless network for fast cable-free access. If you prefer a wired connection, a 2.5G Gigabit Ethernet port provides enhanced network performance, essential for competitive online gaming. Various addressable RGB headers allow you to set up custom lighting effects for a truly unique style.
