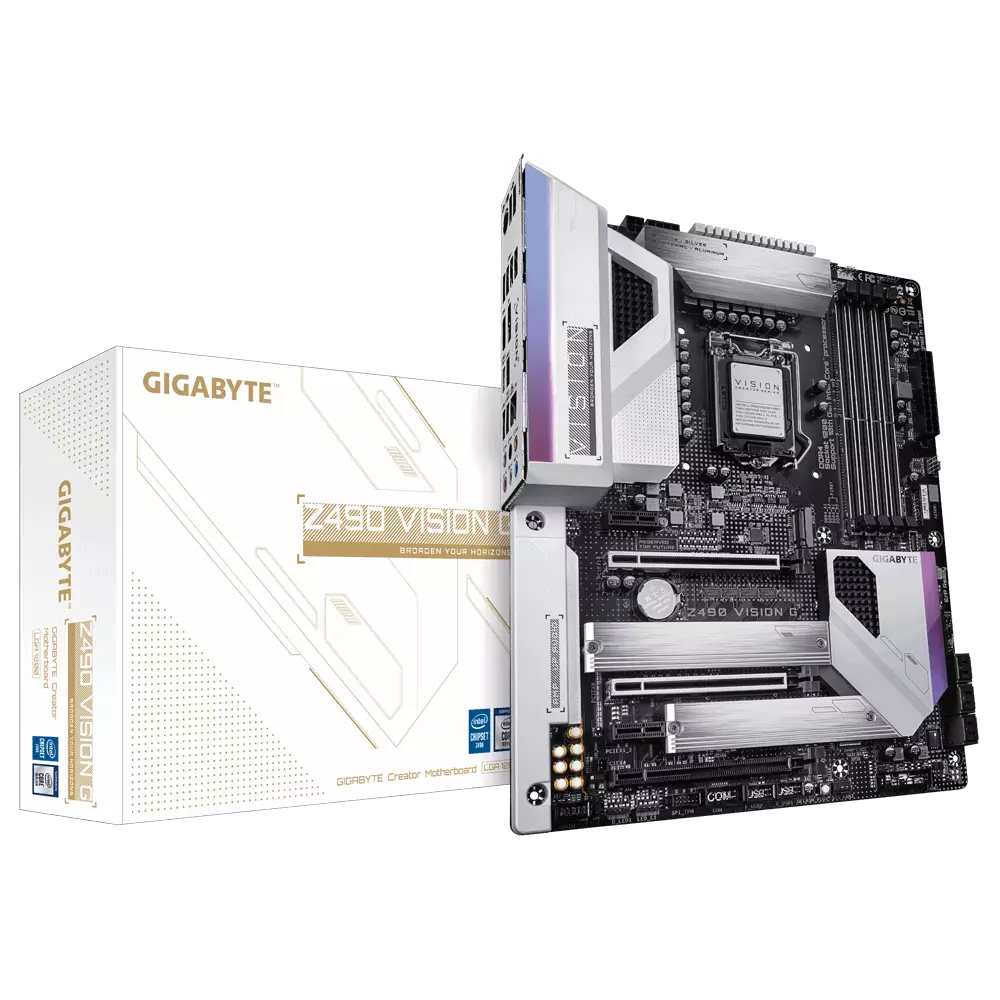

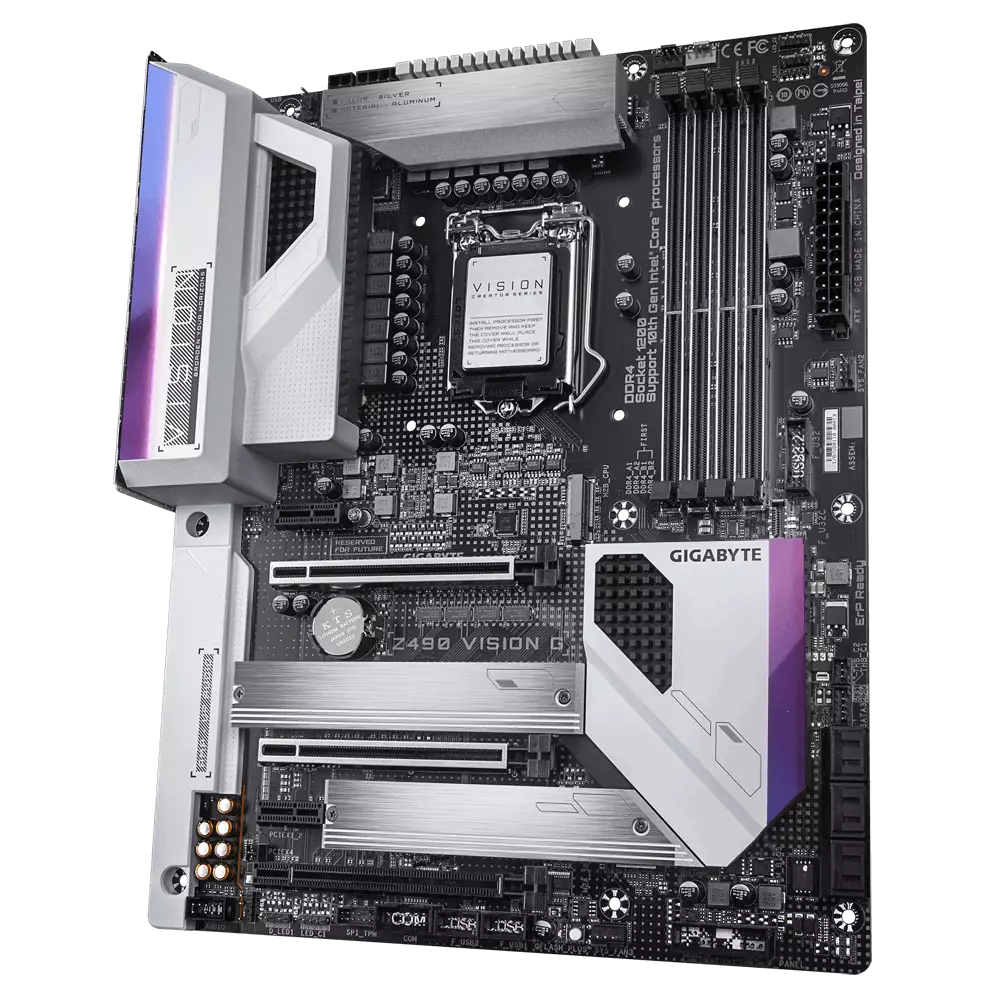

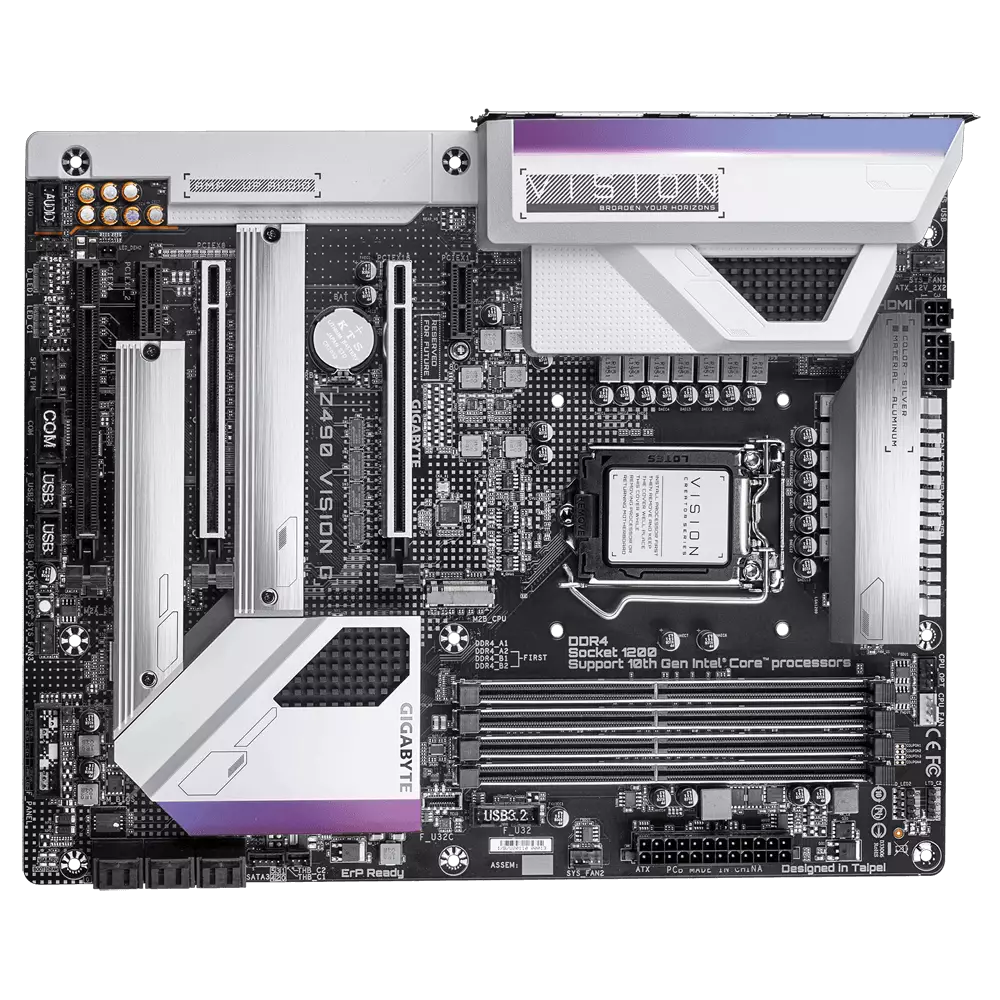

Gigabyte Z490 Vision G 10th Gen ATX Motherboard
Gigabyte Z490 Vision G 10th Gen ATX Motherboard
Gigabyte Z490 Vision G 10th Gen ATX Motherboard - 1
Gigabyte Z490 Vision G 10th Gen ATX Motherboard - 2
Gigabyte Z490 Vision G 10th Gen ATX Motherboard - 3

Gigabyte Z490 Vision G 10th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061812
Brand : Gigabyte
Model : Z490 Vision G
Warranty : 3 Years
  • Intel Z490 Express Chipset
  • Support for 10th Generation Intel
  • Realtek ALC1220-VB codec
  • ATX Form Factor; 30.5cm x 24.4cm

SPECIFICATIONS

Processor

Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package

Mainboard

Chipset Intel Z490 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Networking & Connectivity

LAN Intel 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit)

Audio & Microphone

Audio Realtek ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper

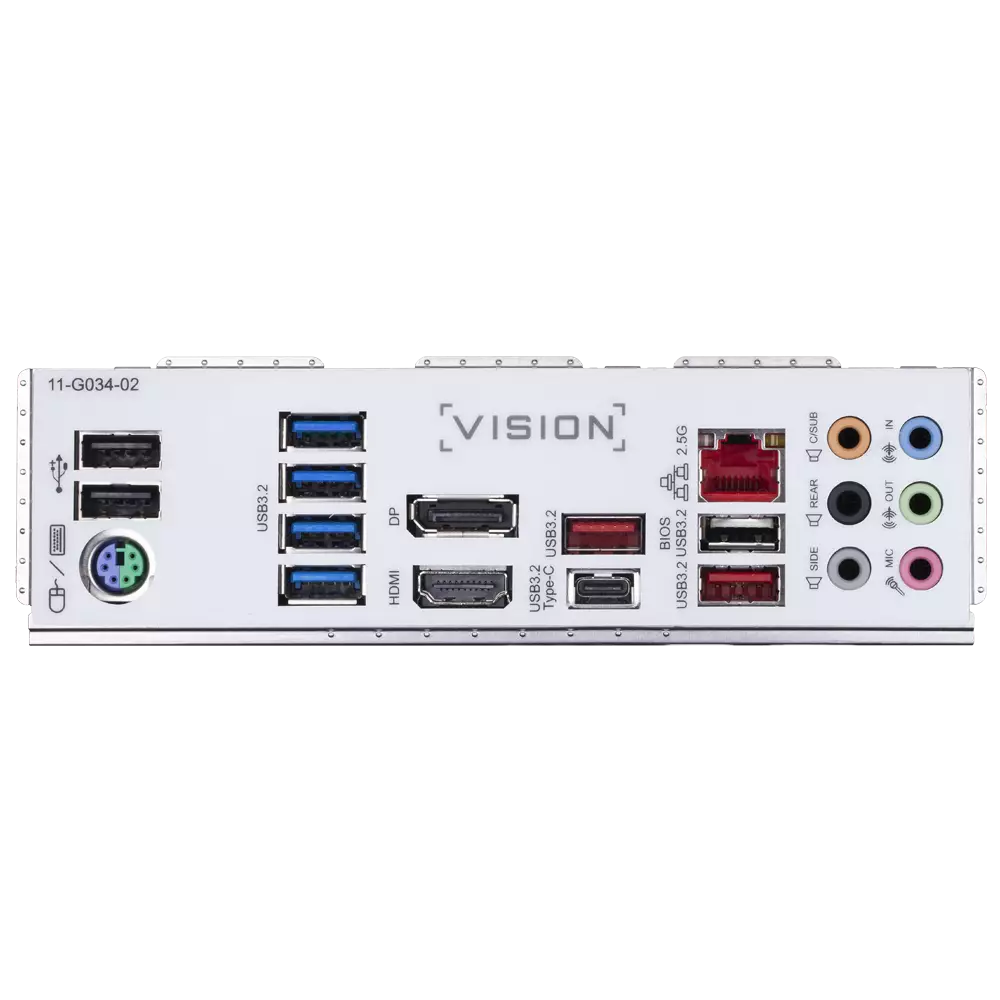

External I/O Ports 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
4 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 2 Type-A ports
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x RJ-45 port
6 x audio jacks
USB 3 x USB 3.2 Gen 2 ports on the back panel
2 x USB Type-C™ ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte Z490 Vision G Motherboard

Features :

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs with Ultra Durable™ Memory Armor
  • Intel® Optane™ Memory Ready
  • Direct 12+1 Phases Digital VRM Solution with DrMOS
  • Micro-Block Thermal Design with Direct Touch Heatpipe II
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® 2.5GbE LAN with cFosSpeed Internet Accelerator Software
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • ALC1220-VB Enhance 114dB(Rear)/110dB(Front) SNR in Microphone with High-End Audio Capacitors
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface with Thermal Guards
  • Front USB 3.2 Gen2 Type-C™ Header
  • RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  • CEC 2019 Ready, Save the Power as Easy as One Click
**03 Years Warranty

Gigabyte Z490 Vision G Motherboard

The Gigabyte Z490 Vision G Motherboard is 128GB. After Intel updates the memory reference code, single-slot support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on the High-End Desktop (HEDT) platform. For users who always run out of memory capacity, there is more bandwidth now. Easier and smoother for those memory-intensive applications such as rendering and video editing. NVIDIA QUADRO 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA, and SOLIDWORKS, Siemens NX, PTC Creo, and many more. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with the latest utilities and drivers version. GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one-click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte Z490 Vision G 10th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte Z490 Vision G Price in BD is 45,500৳ . This Gigabyte Z490 Vision G 10th Gen ATX Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z490 Vision G by 45,500৳ and its regular price is 48,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
