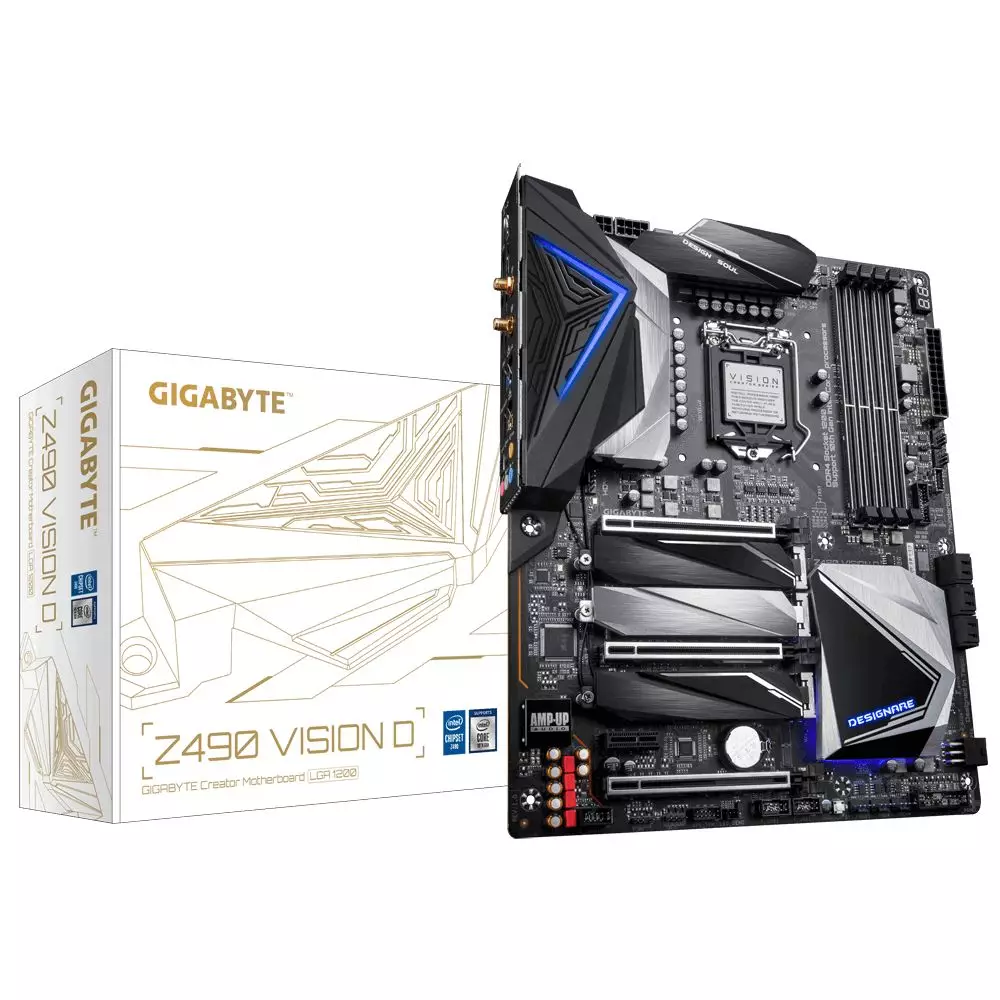

Gigabyte Z490 Vision D 10th Gen ATX Motherboard
Gigabyte Z490 Vision D 10th Gen ATX Motherboard

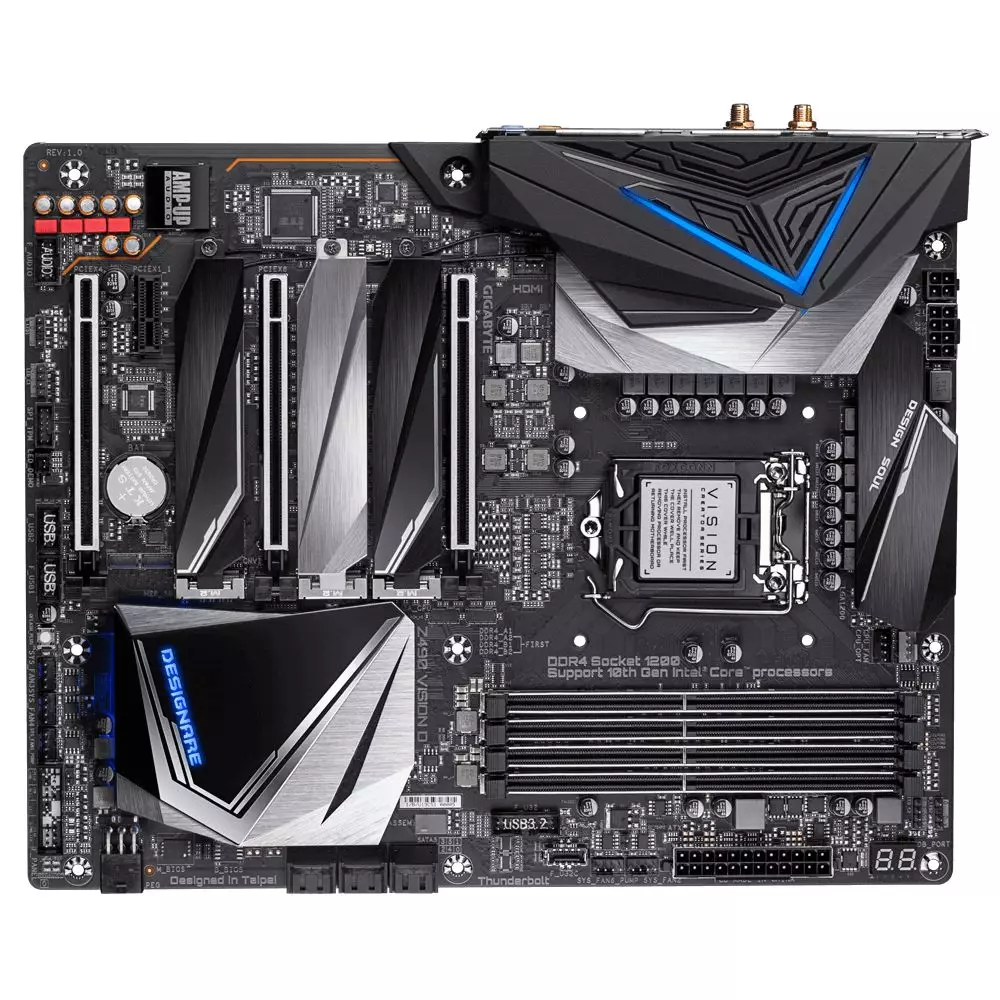

Gigabyte Z490 Vision D 10th Gen ATX Motherboard - 1

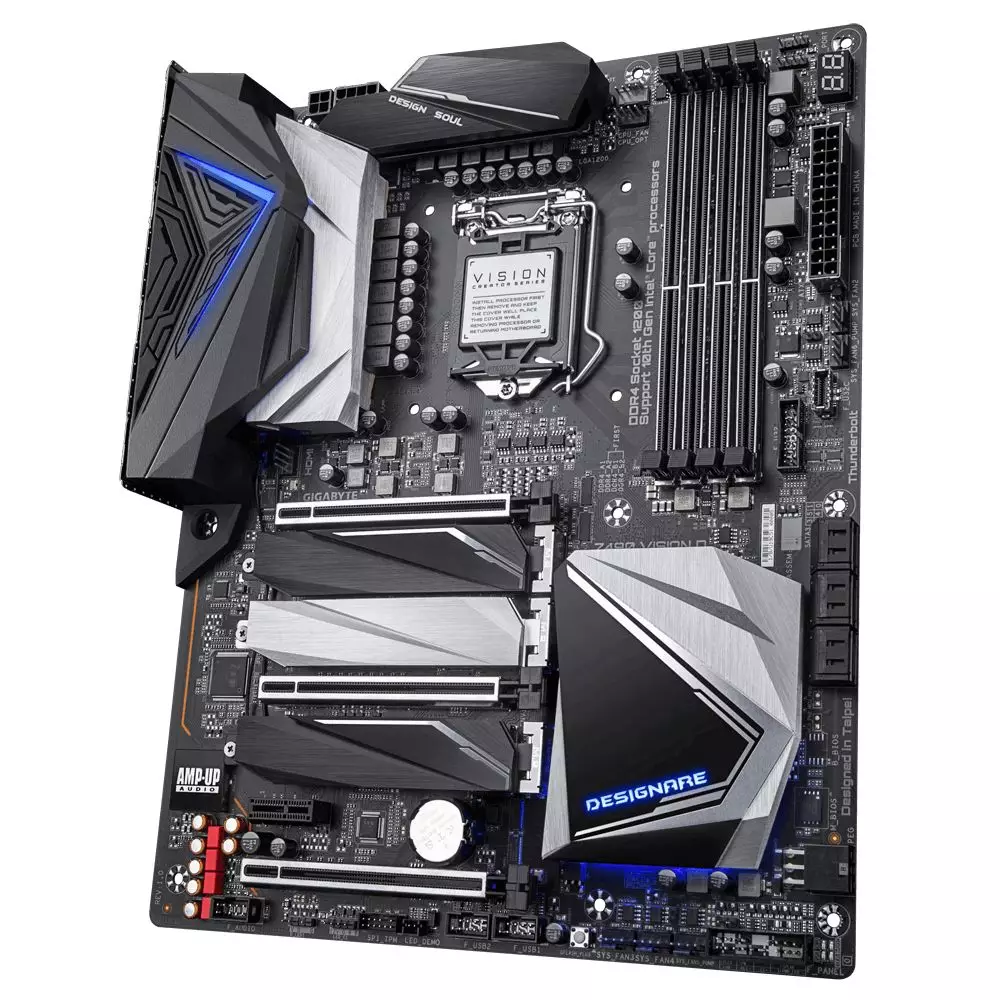

Gigabyte Z490 Vision D 10th Gen ATX Motherboard - 2
Gigabyte Z490 Vision D 10th Gen ATX Motherboard - 3

Gigabyte Z490 Vision D 10th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061811
Brand : Gigabyte
Model : Z490 Vision D
Warranty : 3 Years
  • Chipset: Intel Z490 Express Chipset
  • Supported CPU: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i...
  • LAN: 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1) 1 x Intel GbE LAN chip (1 Gbit/...
  • Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one...

SPECIFICATIONS

Processor

Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package

Mainboard

Chipset Intel Z490 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Intel Core i9/i7 processors:
Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready

Graphics

Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Networking & Connectivity

LAN 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1)
1 x Intel GbE LAN chip (1 Gbit/100 Mbit) (LAN2)

Audio & Microphone

Audio Realtek ALC1220-VB codec
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
1 x Q-Flash Plus button

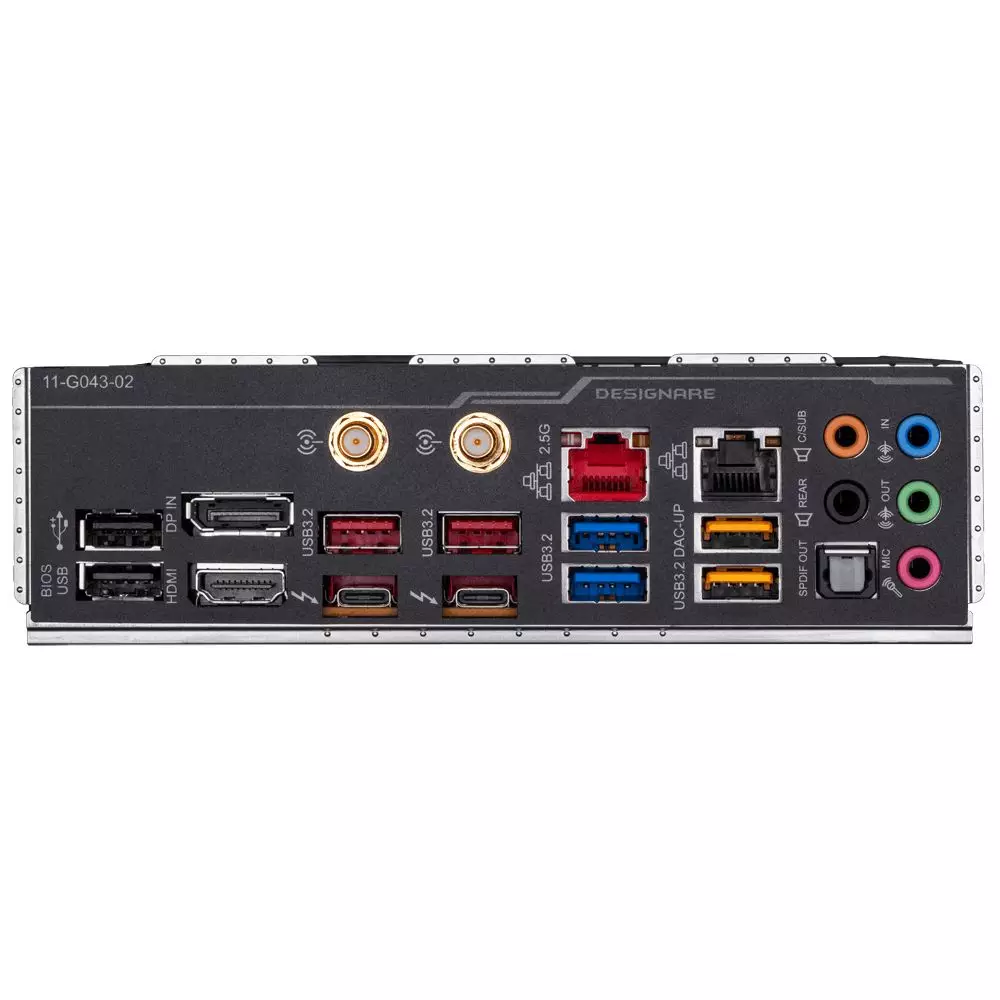

External I/O Ports 1 x DisplayPort In port
2 x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
USB 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
Chipset+Intel Thunderbolt 3 Controller:
2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte Z490 Vision D Motherboard

Features :

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 12+1 Phases Digital VRM Solution with DrMOS
  • Advanced Thermal Design with Direct Touch Heatpipe
  • Intel® Thunderbolt™ 3 Onboard - The USB-C that Does it All
  • Onboard Intel® Wi-Fi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Intel® 2.5GbE + GbE Dual LAN with cFosSpeed
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • USB DAC-UP 2 with Adjustable Voltage
  • Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Thermal Guards
  • Front USB 3.2 Gen 2 Type-C™ Header
  • RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  • CEC 2019 Ready, Save the Power as Easy as One Click
**03 Years Warranty

Gigabyte Z490 Vision D Motherboard

The Gigabyte Z490 Vision D Motherboard is 128GB. After Intel updates the memory reference code, single-slot support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on the High-End Desktop (HEDT) platform. For users who always run out of memory capacity, there is more bandwidth now. Easier and smoother for those memory-intensive applications such as rendering and video editing. NVIDIA QUADRO 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA, and SOLIDWORKS, Siemens NX, PTC Creo, and many more. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with the latest utilities and drivers version. GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one-click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
