Product Information

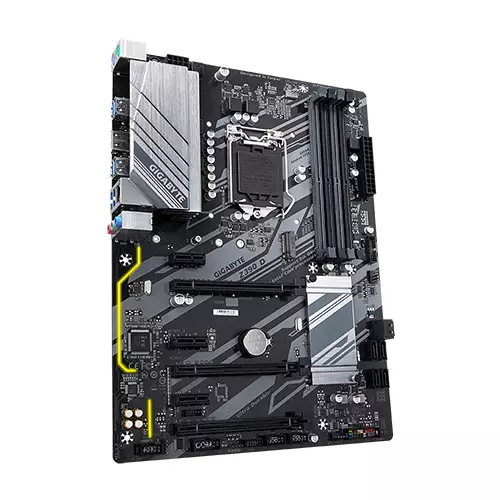

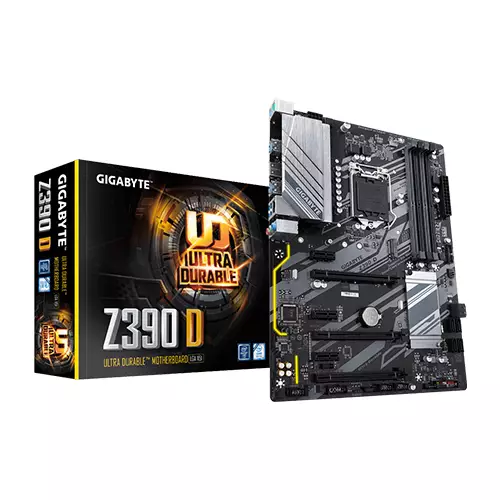

Gigabyte Intel Z390 D Advanced Thermal Design ATX Intel Motherboard
Gigabyte Intel Z390 D Advanced Thermal Design ATX Intel Motherboard
Gigabyte Intel Z390 D Advanced Thermal Design ATX Intel Motherboard - 1
Gigabyte Intel Z390 D Advanced Thermal Design ATX Intel Motherboard - 2

Gigabyte Intel Z390 D Advanced Thermal Design ATX Intel Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061497
Brand : Gigabyte
Model : GIGABYTE Z390 D
Warranty : 3 Years
  • Supports 9th and 8th Gen Intel Core Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • Advanced Thermal Design
  • Intel Optane Memory Ready

PRODUCT SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset intel Z390 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
Dual channel memory architecture
Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Graphics

Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Networking & Connectivity

LAN Realtek GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
pport for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
3 x PCI Express x1 slots
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

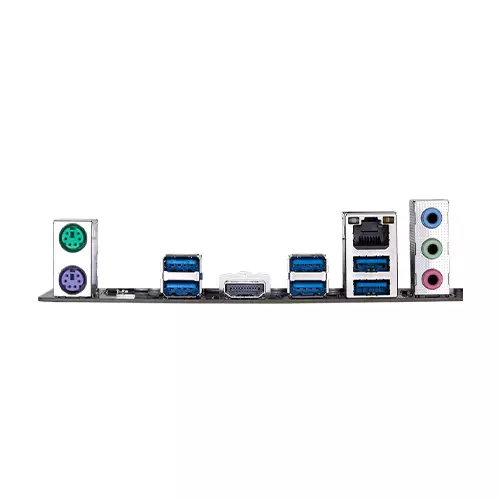

External I/O Ports 1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x HDMI port
6 x USB 3.1 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
USB 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 23.0cm

Warranty Information

Warranty 03 Years

PRODUCT DESCRIPTION

GIGABYTE Z390 D Motherboard

Features :
  • Supports 9th and 8th Gen Intel Core Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • Advanced Thermal Design
  • NVMe PCIe Gen3 x4 22110 M.2 Connector
  • Multi-Way Graphics Support
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Ultra Durable 25KV ESD and 15KV Surge LAN Protection
  • Support RGB Light Strip in Full Colors
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Lightning-Fast Intel Thunderbolt 3 AIC Support
  • Intel Optane Memory Ready
**03 Year Warranty.

GIGABYTE Z390 D Motherboard


Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Intelligent Fan Control Design

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.




CONNECTIVITY

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management



The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

NVMe PCIe Gen3 x4 22110 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Support for DDR4 to 4133MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility to 4133MHz and beyond.

2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Support RGB Lighting Effect in Full Color

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Save power with a simple click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

XSplit Gamecaster   Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster   Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!


[product_table id="34" limit="10" type="filter" filter_category="139"]

CUSTOMER REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte Intel Z390 D Advanced Thermal Design ATX Intel Motherboard Price in Bangladesh 2026 ?

The Gigabyte GIGABYTE Z390 D Price in BD is 23,500৳ . This Gigabyte Intel Z390 D Advanced Thermal Design ATX Intel Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte GIGABYTE Z390 D by 23,500৳ and its regular price is 25,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
