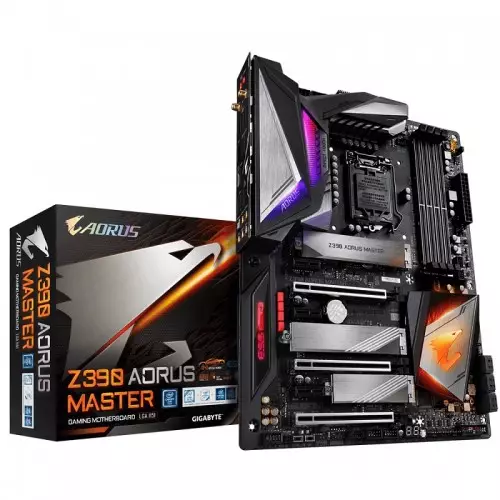

Gigabyte Z390 Aorus Master 9th Gen RGB Motherboard
Gigabyte Z390 Aorus Master 9th Gen RGB Motherboard

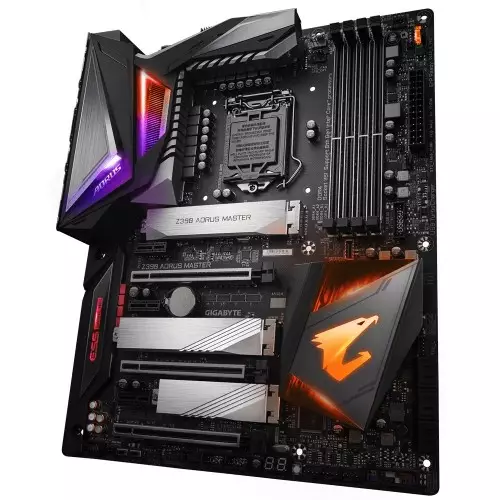

Gigabyte Z390 Aorus Master 9th Gen RGB Motherboard - 1

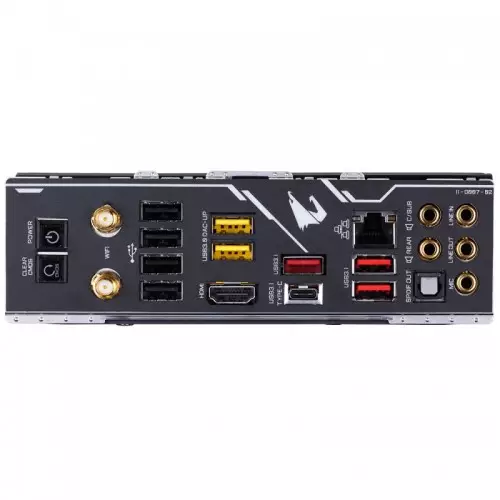

Gigabyte Z390 Aorus Master 9th Gen RGB Motherboard - 2

Gigabyte Z390 Aorus Master 9th Gen RGB Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061009
Brand : Gigabyte
Model : Z390 Aorus master
Warranty : 3 Years
  • Support for 9th and 8th Generation Intel
  • Intel® Z390 Express Chipset
  • max. resolution of 4096x2160@30 Hz
  • Intel® GbE LAN chip

SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset Intel® Z390 Express Chipset
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed.
Dual channel memory architecture
Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Graphics

Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Networking & Connectivity

LAN Intel® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC1220-VB codec
* The front panel line out jack supports DSD audio.
ESS SABRE 9118 DAC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)
Internal I/O Ports 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Z390 AORUS Master

●︎ Supports 9th and 8th Gen Intel Core Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

●︎ Intel Optane Memory Ready

●︎ 12 Phases IR Digital VRM Solution with PowIRstage

●︎ Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe

●︎ Onboard Intel CNVi 802.11ac 2x2 Wave 2 Wi-Fi

●︎ 125dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9118 DAC with WIMA audio capacitors

●︎ USB TurboCharger for Mobile Device Fast Charge Support

●︎ Intel Gigabit LAN with cFosSpeed

●︎ RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ Front USB 3.1 Gen 2 Type-C™ Header

●︎ Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard

●︎ USB DAC-UP 2 with Adjustable Voltage

●︎ CEC 2019 Ready, Save Power With a Simple Click

**3 years warranty.



Triple NVMe M.2 PCIe SSDs in RAID 0 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs

Z390 AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.


GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Support for DDR4 to 4400MHz and Beyond

AORUS is offering a tested and proven platform that ensures proper compatibility to 4400MHz and beyond.


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte Z390 Aorus Master 9th Gen RGB Motherboard Price in Bangladesh 2026 ?

The Gigabyte Z390 Aorus master Price in BD is 22,500৳ . This Gigabyte Z390 Aorus Master 9th Gen RGB Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z390 Aorus master by 22,500৳ and its regular price is 25,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
