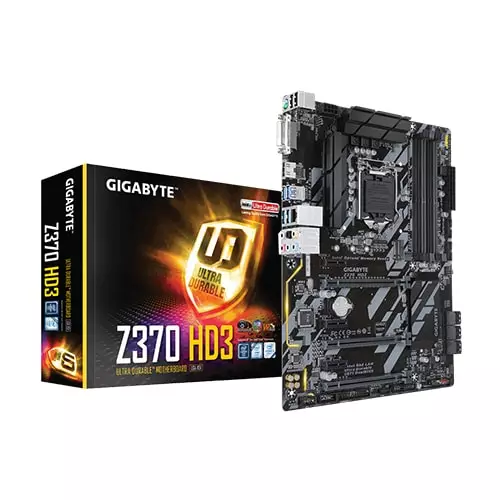

GIGABYTE Z370 HD3 ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD
GIGABYTE Z370 HD3 ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD

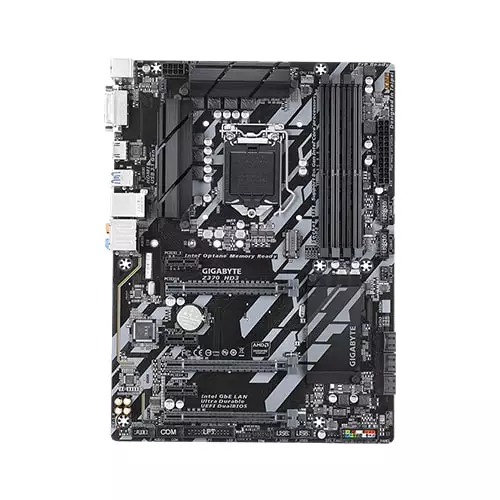

GIGABYTE Z370 HD3 ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD - 1
GIGABYTE Z370 HD3 ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD - 2

GIGABYTE Z370 HD3 ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025061168
Brand : Gigabyte
Model : GIGABYTE Z370 HD 3
Warranty : 3 Years
  • Chipset: Intel® Z370 Express Chipset
  • Supported CPU: Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Co...
  • LAN: Intel® GbE LAN chip (10/100/1000 Mbit)
  • Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x16 slots, running at x...

PRODUCT SPECIFICATIONS

Processor

Supported CPU Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset Intel® Z370 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Graphics

Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Networking & Connectivity

LAN Intel® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
3 x PCI Express x1 slots
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x parallel port header
1 x serial port header
1 x Clear CMOS jumper

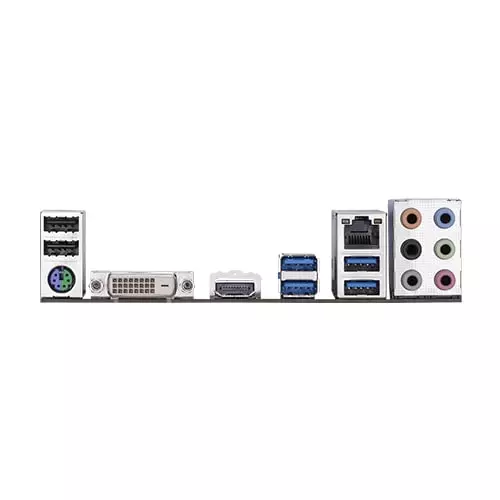

External I/O Ports 1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
USB 8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 22.5cm

Warranty Information

Warranty 03 Years

PRODUCT DESCRIPTION

GIGABYTE Z370 HD 3 ULTRA DURABLE MOTHERBOARD

Specifications :

●︎ Supports 8th Gen Intel® Core™ Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

●︎ Intel® Optane™ Memory Ready

●︎ 2-Way CrossFire™ Multi-Graphics

●︎ Intel® Gigabit LAN with cFosSpeed Internet Accelerator Software

●︎ Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

●︎ High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

●︎ Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface

●︎ RGB FUSION supports RGB LED strips in 7 colors

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ Anti-Sulfur Resistors Design

●︎ APP Center Including EasyTune™ and Cloud Station™ Utilities

**03 Year Warranty


GIGABYTE ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD

The Z370 HD 3 LGA1151 ATX Motherboard from Gigabyte is built on the Intel Z370 chipset and has a LGA 1151 socket designed for 9th and 8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support up to 64GB of 2666 MHz RAM. For storage, it has five SATA III ports and a single M.2 slot, which also supports Intel Optane Memory. As a gaming-focused board, the Z370 Gaming Plus has two PCIe 3.0 x 16 slots, ideal for graphics cards, and four PCIe 3.0 x 1 slots for other PCIe-based hardware. Other integrated features include Intel Gigabit LAN, DVI-D and DisplayPort outputs, and Realtek ALC892 7.1-channel high-definition audio. Moreover, this motherboard is equipped with RGB lighting that you can customize using MSI's downloadable software.

CUSTOMER REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE Z370 HD3 ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte GIGABYTE Z370 HD 3 Price in BD is 14,500৳ . This GIGABYTE Z370 HD3 ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte GIGABYTE Z370 HD 3 by 14,500৳ and its regular price is 18,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
