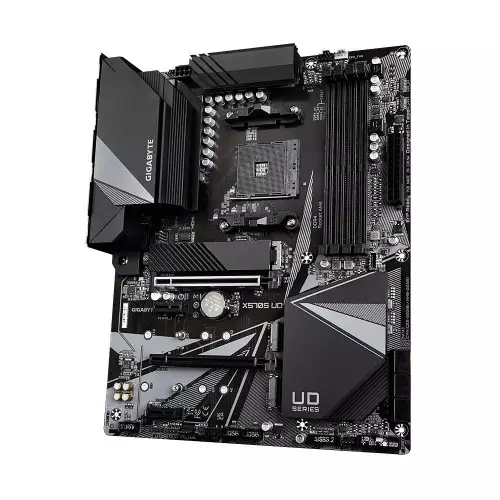

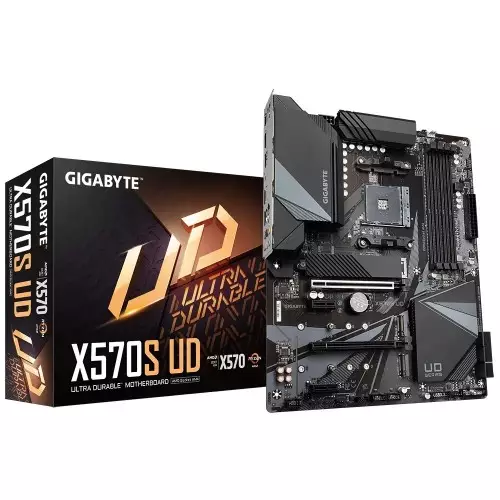

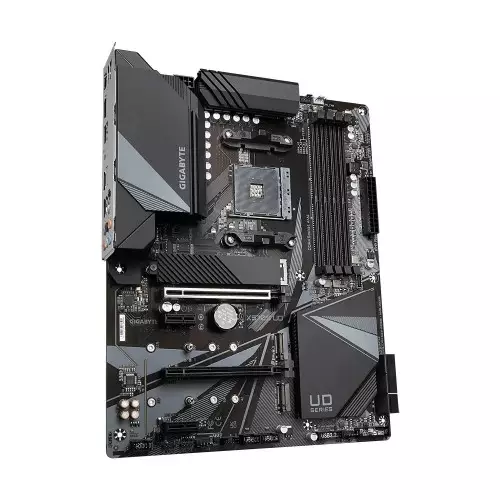

Gigabyte X570S UD AMD Motherboard
Gigabyte X570S UD AMD Motherboard
Gigabyte X570S UD AMD Motherboard - 0
Gigabyte X570S UD AMD Motherboard - 0
Gigabyte X570S UD AMD Motherboard - 1

Gigabyte X570S UD AMD Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506205
Brand : Gigabyte
Model : X570S UD
Warranty : 3 years
  • Supported CPU: AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-...
  • Memory: Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C...
  • Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242...
  • LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Product Pricing

Discount Price

৳22,800 ৳23,000
+ Available Payment Method

EMI Start From*

৳803

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)

Mainboard

Chipset AMD X570
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules . Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Storage

Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242 /2260/ 2280/ 22110 SSDs:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.

Graphics

Graphics Integrated Graphics Processor:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Networking & Connectivity

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Ports

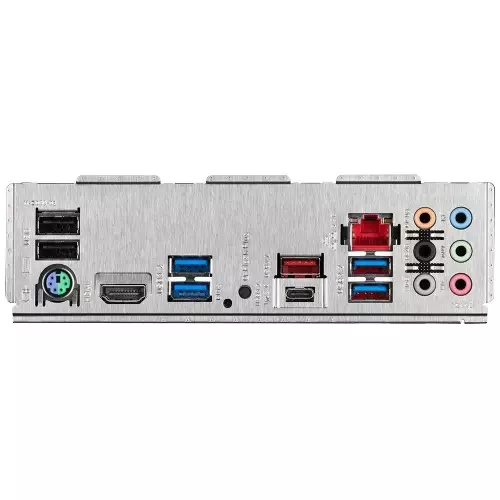

Internal I/O Ports Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper
HDMI 1 x HDMI port

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

Gigabyte X570S UD AMD Motherboard in Bangladesh

Gigabyte X570S UD Motherboard Supports with AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors, Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. This motherboard comes with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x 4 M.2 with Thermal Guard, Fast 2.5GbE LAN with Bandwidth Management and Rear and Front USB3.2 Type-C for Fast and Versatile Connections. In this X570S UD motherboard uses an unprecedented and innovative thermal design, that ensures the best CPU, Chipset, SSD stability, and low temperatures under full loading application and gaming. The X570S UD provides all next-generation network, storage, and connectivity to keep you up to speed. This motherboard has High-Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. In this Gigabyte X570S UD motherboard, the RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips, Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, we use the best components we can find for the Gigabyte X570S UD motherboard and reinforce every slot to make each of them solid and durable.

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 Series/ Ryzen 3000 G-Series/ Ryzen 2000 Series/ Ryzen 2000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Fast 2.5GbE LAN with Bandwidth Management
  • Rear and Front USB3.2 Type-C for Fast and Versatile Connections
  • High-Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card
