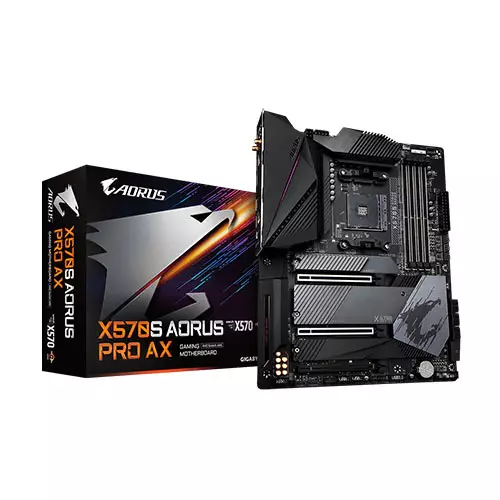

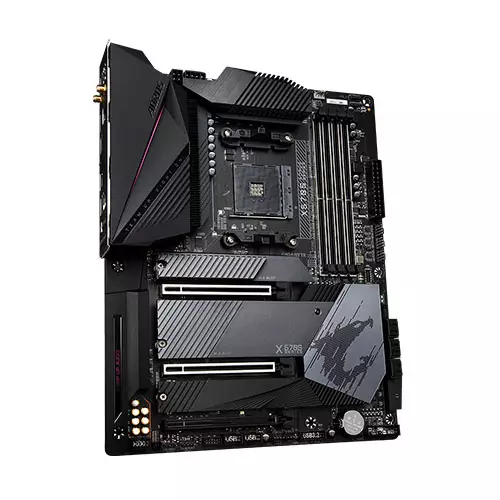

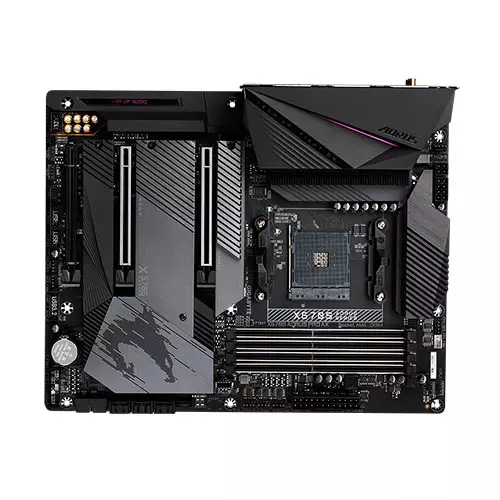

Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard
Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard
Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard - 1
Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard - 2

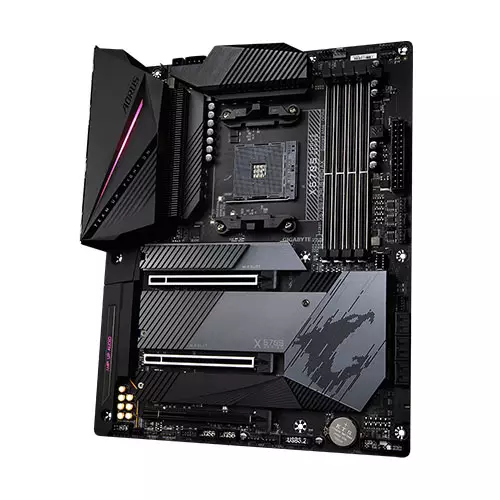

Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard - 3
Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard - 4

Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506219
Brand : Gigabyte
Model : X570S AORUS PRO AX
Warranty : 3 years
  • ATX Form Factor
  • AMD X570 Chipset
  • AM4 Socket
  • 4 x Dual-Channel DDR4

Product Pricing

Discount Price

৳25,500 ৳26,000
+ Available Payment Method

EMI Start From*

৳898

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors

Mainboard

Chipset AMD X570
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

AMD Ryzen™ 5000-Series/3000 Series Processors
support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors

support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:

Supporting PCIe 4.0*/3.0 x4/x2 SSDs
* For AMD Ryzen™ 5000 Series/3000 Series Processors only.

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0*/3.0 x4/x2 SSDs

* For AMD Ryzen™ 5000 Series/3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Graphics

Multi-GPU Support forAMDQuad-GPU CrossFire™ and 2-WayAMD CrossFire™ technologies
Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Networking & Connectivity

LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
Bluetooth BLUETOOTH 5.2

Audio & Microphone

Audio Realtek® ALC1220-VB Audio CODEC
* The back panel line out jack supports DSD audio..

Support for DTS:X® Ultra.

High Definition Audio.

2/4/5.1/7.1-channel.

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 5000 Series/3000 Series Processors
support PCIe 4.0 x16 mode

AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
support PCIe 3.0 x16 mode

AMD Ryzen™ 3000 G-Series/2000 G-Series Processors
support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

AMD Ryzen™ 5000 Series/3000 Series Processors
support PCIe 4.0 x8 mode

AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
support PCIe 3.0 x8 mode

AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 4.0*/3.0 x4 mode

* For AMD Ryzen™ 5000 Series/3000 Series Processors only.
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water
cooling pump headers
2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Thunderbolt™ add-in card connector

1 x Clear CMOS jumper

2 x temperature sensor headers

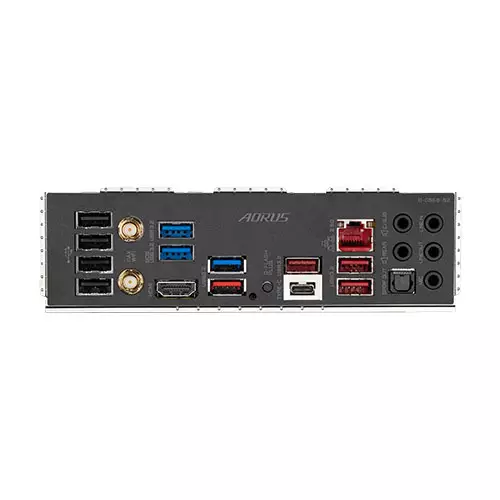

External I/O Ports 4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)

1 x HDMI port

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

4 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks
USB 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

3 x USB 3.2 Gen 1 ports on the back panel

Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
1 x USB Type-C® port on the back panel, with USB
3.2 Gen 2x2 support
Chipset:

1 x USB Type-C® port with USB 3.2 Gen 2 support, available
through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel,
4 ports available through the internal USB headers)
HDMI 1 x HDMI port

Software

Software Features Norton® Internet Security (OEM version)

cFosSpeed

Special Features

Special Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.
@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Others

Other Features I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Physical Specification

Form Factor ATX
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard


UNPARALLELED PERFORMANCE

To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS PRO AX is a true beast among motherboards.


1. Fins-Array II

Fins-Array II uses brand new louvered stacked-fins design which not only increases surface area by 300% compared to traditional heatsinks, but also improves thermal efficiency with better airflow and heat dissipation.

2. 2X Copper PCB

2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.

3. Direct-Touch Heatpipe II

With an extra large 8mm heatpipe and made by a new manufacturing process which has narrowed down the gap between the heatpipe and heatsink. The new Direct-Touch Heatpipe II greatly helps to dissipate the heat on MOSFETs.

4. 9 W/mK Thermal Conductivity Pad

By using 1.5mm thicker 9 W/mK thermal conductivity pads, it can transfer 4x more of heat dissipation compared to traditional thermal pads in same time.

5. M.2 Thermal Guard III

M.2 Thermal Guard III constructed with 2.6X optimized heat dissipation surface and double-sided M.2 heatsinks to prevent throttling and bottlenecks on high-speed/ large capacity of PCIe 4.0 M.2 SSDs.

ADVANCED THERMAL SOLUTION

X570S AORUS PRO AX uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming.

NEXT GENERATION CONNECTIVITY

A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS PRO AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

DEFINITIVE AESTHETICS

X570S AORUS PRO AX features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte X570S AORUS PRO AX Price in BD is 25,500৳ . This Gigabyte X570S AORUS PRO AX AM4 ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte X570S AORUS PRO AX by 25,500৳ and its regular price is 26,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
