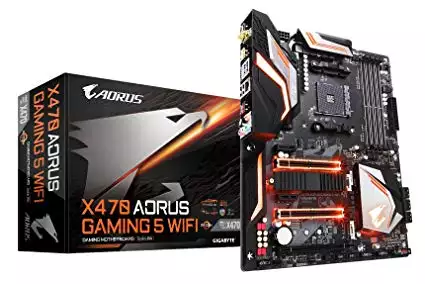

Gigabyte X470 AORUS GAMING 5 WIFI Motherboard
- Chipset: AMD X470
- Supported CPU: AMD Ryzen™ processor AMD 7th Generation A-series/Athlon™ processors
- LAN: Intel® GbE LAN chip (10/100/1000 Mbit)
- Slots: PCI: 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running...
SPECIFICATIONS
Processor
AMD 7th Generation A-series/Athlon™ processors
Mainboard
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Storage
* Actual bandwidth may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Graphics
Networking & Connectivity
Audio & Microphone
Ports
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
Graphics Slot: No
M.2 Socket: 2 x M.2 Socket 3 connectors
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x RGB (RGBW) LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x temperature sensor header
4 x USB 3.1 Gen 1 ports, available through the internal USB headers
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 3.1 Gen 1 ports on the back panel
Others
Physical Specification
Warranty Information
DESCRIPTION
AORUS GAMING 5 WIFI Motherboard
●︎ Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
●︎ Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
8+3 Phase Hybrid Digital PWM Design
●︎ 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design
●︎ Intel® 802.11ac Wave2 2T2R WIFI & BT 5
●︎ ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
●︎ Dual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal Guard
●︎ RGB FUSION with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips
●︎ Intel® Ethernet LAN with cFOS Speed Internet Accelerator
●︎ USB DAC-UP 2 with Adjustable Voltage
●︎ Anti-Sulfur Resistors Design
●︎ Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
●︎ CEC 2019 Ready, Save Power with a Simple Click
**3 years warranty.
GIGABYTE X470 AORUS Gaming motherboards are based on the AMD X470 Chipset, and support 2nd Gen AMD Ryzen™ Processors. These selections of boards come with new ID design and covers a wide spectrum of price points and features including Gen3 PCIe lanes, future proof connectivity with USB Type-C™ as well as improved Audio and WIFI capabilities while providing all the performance and novelties of the new chipset. The motherboards represent the 2nd Gen AMD Ryzen™ Processors' performance on this new AMD X470 platform by means of an updated power design, offering the best experience to the users who care about performance.
