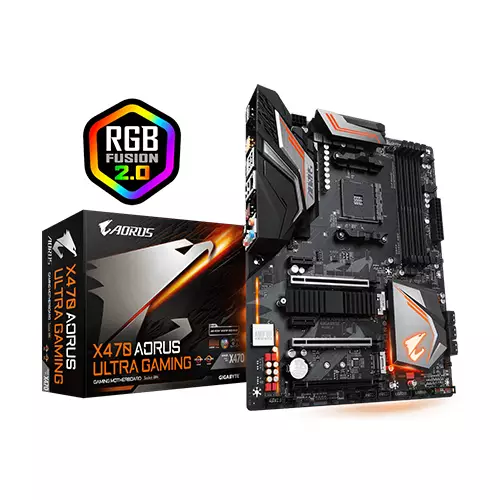

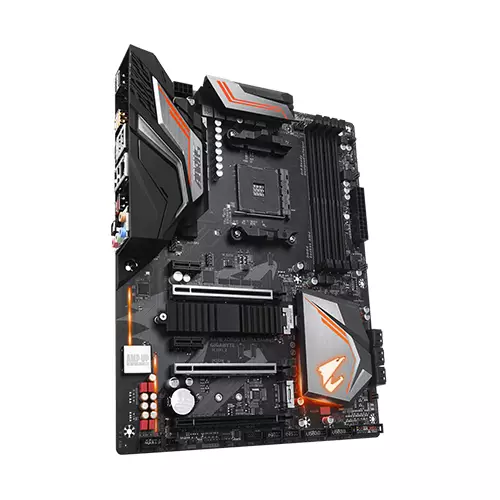

Gigabyte X470 AORUS ULTRA GAMING RGB MotherBoard
Gigabyte X470 AORUS ULTRA GAMING RGB MotherBoard
Gigabyte X470 AORUS ULTRA GAMING RGB MotherBoard - 1
Gigabyte X470 AORUS ULTRA GAMING RGB MotherBoard - 2

Gigabyte X470 AORUS ULTRA GAMING RGB MotherBoard

0 Reviews
Stock : Discontinued
PID : P00025061010
Brand : Gigabyte
Model : Gigabyte X470 AORUS ULTRA GAMING
Warranty : 3 Years
  • Chipset: AMD X470
  • LAN: Intel® GbE LAN chip (10/100/1000 Mbit)
  • Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16)*
  • Audio: Realtek® ALC1220-VB codec High-Definition Audio

SPECIFICATIONS

Mainboard

Chipset AMD X470
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2* SSD support) (M2A_SOCKET)
* Actual bandwidth may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz*
* Support for HDMI 2.0 version and HDCP 2.2.*
* Actual support may vary by CPU.

Networking & Connectivity

LAN Intel® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)*
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)*
* Actual support may vary by CPU.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2B_SOCKET connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Internal I/O Ports ASMedia® USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
4 x USB 3.1 Gen 1 ports available through the internal USB headers
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Others

Other Features Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors

Physical Specification

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 3 years warranty

DESCRIPTION

Gigabyte X470 AORUS ULTRA

●︎ Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

●︎ 8+3 Phase Hybrid Digital PWM Design

●︎ 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design

●︎ ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors

●︎ Dual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal Guard

●︎ RGB FUSION 2.0 with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips

●︎ Intel® Ethernet LAN with cFOS Speed Internet Accelerator

●︎ USB DAC-UP 2 with Adjustable Voltage

●︎ Anti-Sulfur Resistors Design

●︎ Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

●︎ CEC 2019 Ready, Save Power with a Simple Click

**3 years warranty..



Design Concept

AORUS X470 Gaming Motherboards feature a design concept inspired by the wings of an eagle. The sleek design of the I/O armor resembles the shape of the wing while the claw marks and airflow design are inspired by the wing’s impressive aerodynamic features.

GIGABYTE X470 AORUS Gaming motherboards based on the AMD X470 Chipset, support 2nd Gen AMD Ryzen™ Processors. These selections of boards come with new ID design and covers a wide spectrum of price points and features including Gen3 PCIe lanes, future proof connectivity with USB Type-C™ as well as improved Audio capability while providing all the performance and novelties of the new chipset. The motherboards represent the 2nd Gen AMD Ryzen™ Processors' performance on this new AMD X470 platform by means of an updated power design, offering the best experience to the users who care about performance.


[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte X470 AORUS ULTRA GAMING RGB MotherBoard Price in Bangladesh 2026 ?

The Gigabyte Gigabyte X470 AORUS ULTRA GAMING Price in BD is 17,500৳ . This Gigabyte X470 AORUS ULTRA GAMING RGB MotherBoard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Gigabyte X470 AORUS ULTRA GAMING by 17,500৳ and its regular price is 19,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
