GIGABYTE H610M S2H DDR5 mATX Motherboard
GIGABYTE H610M S2H DDR5 mATX Motherboard
GIGABYTE H610M S2H DDR5 mATX Motherboard - 1
GIGABYTE H610M S2H DDR5 mATX Motherboard - 2

GIGABYTE H610M S2H DDR5 mATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506481
Brand : Gigabyte
Model : H610M S2H
Warranty : 3 years
  • Chipset - Intel H610 Express
  • Supported RAM - 2x DDR5, Max 64GB 5600
  • Graphics Output - 2x HDMI, 1x DisplayPort
  • Features - Realtek GbE LAN Chip

Product Pricing

Discount Price

৳11,900 ৳13,500
+ Available Payment Method

EMI Start From*

৳419

SPECIFICATIONS

Processor

Supported CPU Support for 12th/ 13th/ 14th Generation

Intel Core i9/ i7/ i5/ i3 processors and

Intel Pentium processors/ Intel Celeron

processors in the LGA1700 package

L3 cache varies with the CPU
Chipset Intel H610 Express Chipset

Mainboard

BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0,

SM BIOS 2.7, ACPI 5.0

Memory

Memory Type DDR5
Memory 13th Generation Intel Core i9/i7 processors:

Support for DDR5 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel Core i5/i3 and 12th Generation Intel Core,

Pentium Gold and Celeron Processors:

Support for DDR5 4800/4400 MT/s memory modules

2 x DDR DIMM sockets supporting up to 64 GB (32 GB

single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8

memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM

1Rx8/2Rx8/1Rx16 memory modules

support for Extreme Memory Profile (XMP) memory modules

Storage

Storage Chipset:

1 x M.2 connector (Socket 3, M key,

type 2280/2260 PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using

the audio software. To configure 7.1-channel audio,

access the audio software for audio settings.

Ports

PSU Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Slots 2 x DDR DIMM sockets
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

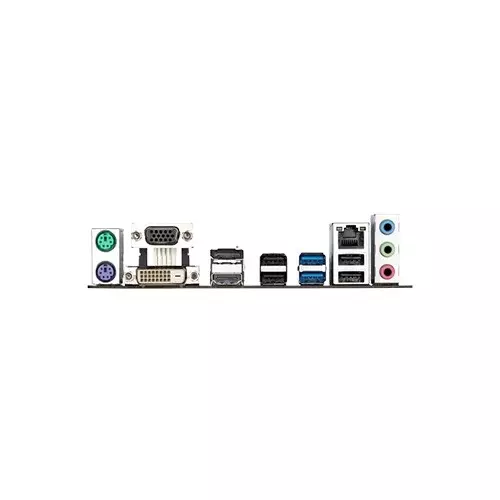

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

1 x DisplayPort

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
HDMI 1 x HDMI port
Ports & Connectors D-Sub (s) - 1 x D-Sub port

DVI-D (s) - 1 x DVI-D port

USB (s)

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel,

2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

Software

Bundled Software Norton Internet Security

(OEM version)

cFosSpeed

Special Features

Speacial Features Support for APP Center

* Available applications in the APP Center may vary by

motherboard model. Supported functions of each

application may also vary depending on the motherboard

specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Physical Specification

Color Black
Expansion Slots 1 x PCI Express x16 slot,

supporting PCIe 4.0 and running at x16


Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Technical Info

Model H610M S2H

Warranty Information

Warranty 3 years

DESCRIPTION

GIGABYTE H610M S2H DDR5 mATX Motherboard in Bangladesh


GIGABYTE H610M S2H DDR5 mATX  Motherboard is a versatile and high-performance motherboard designed to support 12th, 13th, and 14th Generation Intel Core processors, including i9, i7, i5, and i3, as well as Intel Pentium and Celeron processors in the LGA1700 package. Available at Tech Land BD, this motherboard is built with the Intel H610 Express Chipset and features DDR5 memory support, offering speeds of up to 5600 MT/s for enhanced performance. With two DDR5 DIMM slots supporting up to 64GB of system memory, it ensures smooth multitasking and gaming experiences. The board includes a range of connectivity options, such as 1 x M.2 slot for PCIe 3.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, and multiple USB ports (USB 3.2 Gen 1 and USB 2.0). For graphics, it supports integrated Intel HD Graphics with HDMI, DisplayPort, DVI-D, and D-Sub ports, delivering stunning visuals up to 4K resolution. Additional features include Realtek GbE LAN for fast networking, high-definition audio, and RGB Fusion for customizable lighting. The compact Micro ATX form factor makes it ideal for small to medium-sized builds, while its robust design ensures durability. Backed by GIGABYTE's reliable engineering, this motherboard is perfect for gamers, content creators, and professionals seeking a balance of performance and affordability.

Does the GIGABYTE H610M S2H support DDR5 memory?

Yes, it supports DDR5 memory with speeds of up to 5600 MT/s for 13th Gen Intel Core i9/i7 processors.

What processors are compatible with this motherboard?

It supports 12th, 13th, and 14th Gen Intel Core i9/i7/i5/i3, Pentium, and Celeron processors in the LGA1700 package.

Does this motherboard support 4K resolution?

Yes, it supports 4K resolution via its HDMI and DisplayPort outputs.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE H610M S2H DDR5 mATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte H610M S2H Price in BD is 11,900৳ . This GIGABYTE H610M S2H DDR5 mATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte H610M S2H by 11,900৳ and its regular price is 13,500৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
