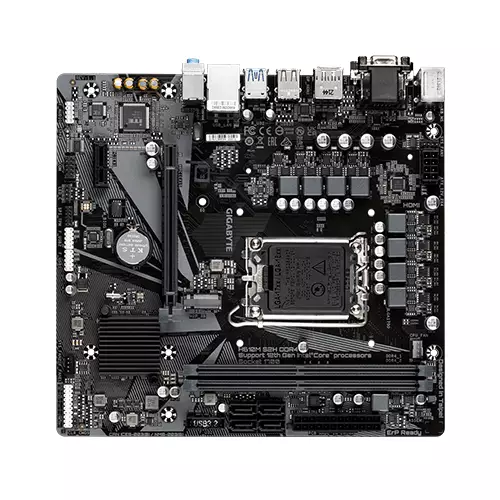

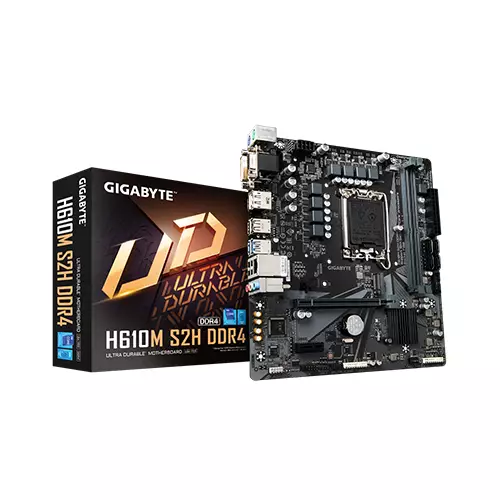

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard
Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard - 1
Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard - 2

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506185
Brand : Gigabyte
Model : H610M S2H DDR4
Warranty : 3 years
  • CPU Socket Type: LGA 1700
  • Motherboard Chipset: H610
  • Audio : Realtek Audio CODEC
  • Form Factor : Micro ATX

Product Pricing

Discount Price

৳10,500 ৳11,200
+ Available Payment Method

EMI Start From*

৳370

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors

L3 cache varies with CPU

Mainboard

Chipset Intel H610 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

Networking & Connectivity

LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 3.0 standard
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

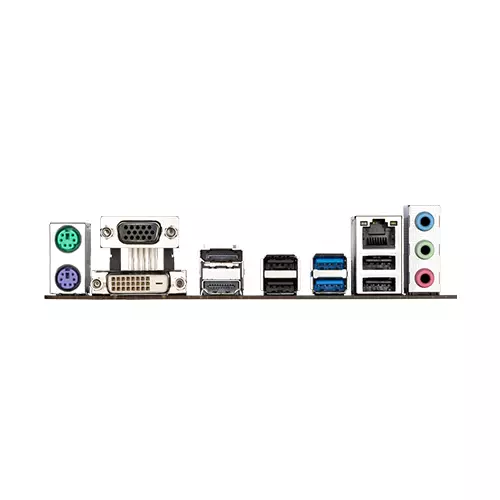

External I/O Ports 1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

1 x DisplayPort

1 x HDMI 2.0 port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
USB
Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte H610M S2H Motherboard

The Gigabyte H610M S2H Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Realtek Gaming LAN, HDMI / DVI-D/ D-Sub Ports for Multiple Display , Anti-Sulfur Resistor,  Smart Fan 6.The maximum memory capacity on the H610 motherboard is 64 GB. The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.



REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte H610M S2H DDR4 Price in BD is 10,500৳ . This Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte H610M S2H DDR4 by 10,500৳ and its regular price is 11,200৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
