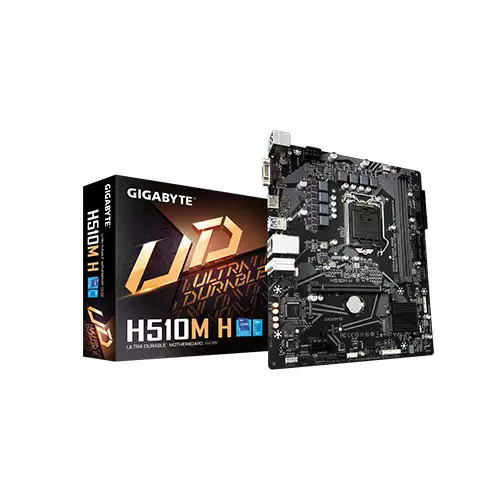

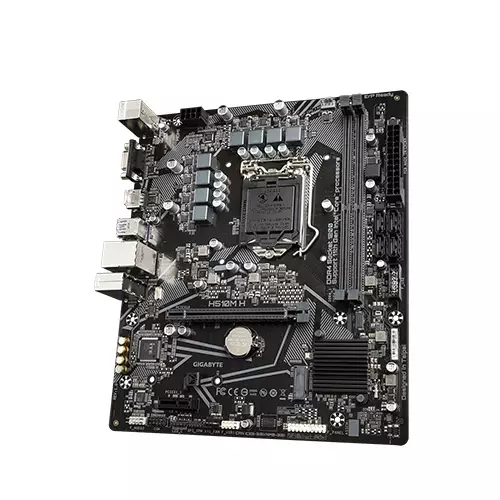

Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard - 1
Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard - 2

Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506126
Brand : Gigabyte
Model : H510M H
Warranty : 3 years
  • Supports 11th and 10th Gen Processors
  • Dual-Channel DDR4, 2 DIMMs
  • Ultra-Fast M.2 with PCIe Gen3 x4 & SATA
  • GIGABYTE Exclusive 8118 Gaming LAN

Product Pricing

Discount Price

৳9,700 ৳10,300
+ Available Payment Method

EMI Start From*

৳342

SPECIFICATIONS

Processor

Supported CPU LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU

Mainboard

Chipset Intel H510 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage Chipset
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

Graphics

Graphics Integrated Graphics Processor - Intel HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.3.

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbit/100 Mbit)

Audio & Microphone

Audio Realtek audio codec
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
Supported by 11th Generation processors only.
1 x PCI Express x1 slot (PCIEX1_1)
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumpe

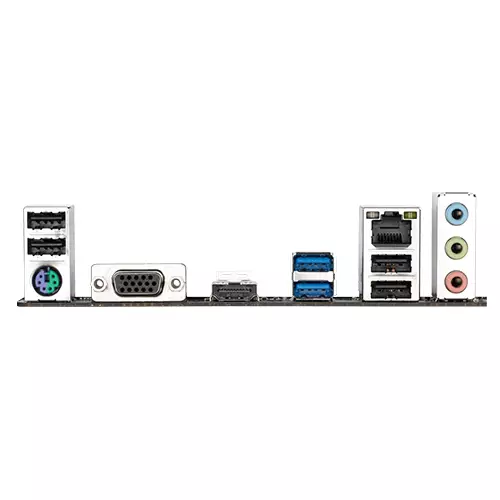

External I/O Ports 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB Chipset
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 24.4cm x 21.0cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte H510M H Micro ATX Motherboard in Bangladesh

Get gaming-level performance and DisplayPort connectivity with the H510M H Micro-ATX Motherboard from Gigabyte. Utilizing the Intel H510 Express Chipset chipset, this motherboard is meant to be used with CPUs that support the intel socket. Install up to 64GB of dual-channel DDR4 RAM across four slots. Storage drives are often installed using four SATA III connectors or an M.2 slot.

A rear I/O panel sports four USB 3.2 Gen 1 and two USB 2.0 ports, also as a PS/2 combo port for connecting legacy mice or keyboards. DisplayPort, HDMI, and DVI-D outputs accommodate displays, while an RJ45 port supports Gigabit Ethernet. Three 3.5mm audio ports also are present on the rear panel. The Gigabyte H510M H  Micro-ATX Motherboard utilizes the Realtek audio codec and supports Windows 10 64-bit operating systems.

Gigabyte H510M H Motherboard

BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. Gigabyte H510M H  With a new GUI and easier-to-use functionalities, Gigabyte H510M H has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Gigabyte H510M H Motherboard



[product_table id="34" limit="10" type="filter" filter_category="139"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte H510M H Price in BD is 9,700৳ . This Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte H510M H by 9,700৳ and its regular price is 10,300৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
