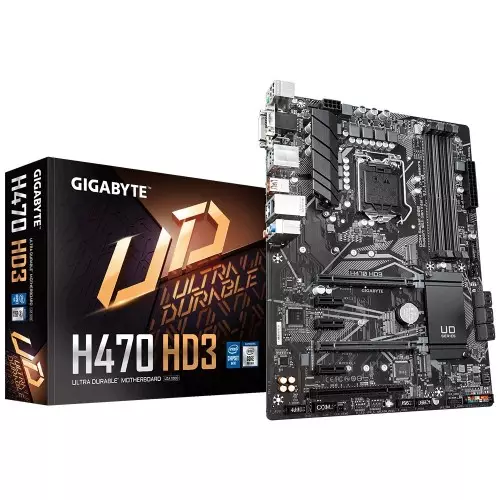

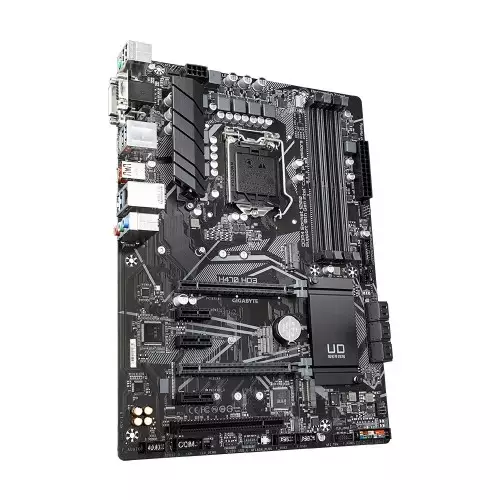

GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard
GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard
GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard - 1
GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard - 2

GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061815
SKU : RF7K2HE
Brand : Gigabyte
Model : H470 HD3
Warranty : 3 Years
  • Chipset: Intel H470 Express Chipset
  • Support for 10th Generation Intel®
  • Intel GbE LAN chip (1000 Mbit/100 Mbit)
  • maximum resolution of 4096x2160@30 Hz

SPECIFICATIONS

Processor

Supported CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU

Mainboard

Chipset Intel H470 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready

Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

Networking & Connectivity

LAN Intel GbE LAN chip (1000 Mbit/100 Mbit)

Audio & Microphone

Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x PCI slot
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
External I/O Ports 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 22.5cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte H470 HD3 Motherboard

Features :

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Dual NVMe PCIe Gen3 X4 M.2 Connectors
  • Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
  • Intel® Optane™ Memory Ready
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel® USB 3.2 Gen 1 Type-C™ Support
  • 3 Display Interfaces Support
  • M.2 E-key Slot for PCIe WIFI Module Upgradable
  • Anti-Sulfur Resistors Design
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
**03 Years Warranty

Gigabyte H470 HD3 Motherboard

GIGABYTE 400 series motherboards use a 6+2 phase digital PWM + Lower RDS(on) MOSFETs design to support the latest 10-core Inte Core CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. With two NVMe PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE Gigabyte H470 HD3 Motherboard bring to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, dual M.2 provides an ideal storage solution as it also supports RAID modes. Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. GIGABYTE Gigabyte H470 HD3 Motherboard use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the Gigabyte H470 HD3 Motherboard and its components against potential damage caused by static electricity. Gigabyte H470 HD3 Motherboard also feature special anti-surge ICs that protect your Gigabyte H470 HD3 Motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. WIFI module Upgrade kit offers an easy way to upgrade WIFI Upgradeable motherboards with new and faster Gigabit WIFI connectivity without having to upgrade to a whole new system. With H470 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on H470 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. Gigabyte H470 HD3 Motherboard use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Dual NVMe PCIe Gen3 x4 M.2 Connectors

With two NVMe PCIe Gen3 x4 M.2 connectors onboard, Gigabyte H470 HD3 Motherboard bring to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

The Industry's Leading LAN Static-Electricity & Surge Protection

Gigabyte H470 HD3 Motherboard use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. This Gigabyte H470 HD3 Motherboard also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the Gigabyte H470 HD3 Motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

RGB FUSION 2.0

With Gigabyte H470 HD3 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on H470 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte H470 HD3 Price in BD is 42,500৳ . This GIGABYTE H470 HD3 10th Gen Ultra Durable ATX Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte H470 HD3 by 42,500৳ and its regular price is 45,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
