GIGABYTE H310M S2H Ultra Durable LGA1151 RGB INTEL MOTHERBOARD
GIGABYTE H310M S2H Ultra Durable LGA1151 RGB INTEL MOTHERBOARD
GIGABYTE H310M S2H Ultra Durable LGA1151 RGB INTEL MOTHERBOARD - 1
GIGABYTE H310M S2H Ultra Durable LGA1151 RGB INTEL MOTHERBOARD - 2

GIGABYTE H310M S2H Ultra Durable LGA1151 RGB INTEL MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025061169
Brand : Gigabyte
Model : GIGABYTE H310M S2H
Warranty : 3 Years
  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • Chipset Intel® H310 Express Chipset
  • Realtek® GbE LAN chip

PRODUCT SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset Intel® H310 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors

Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Networking & Connectivity

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

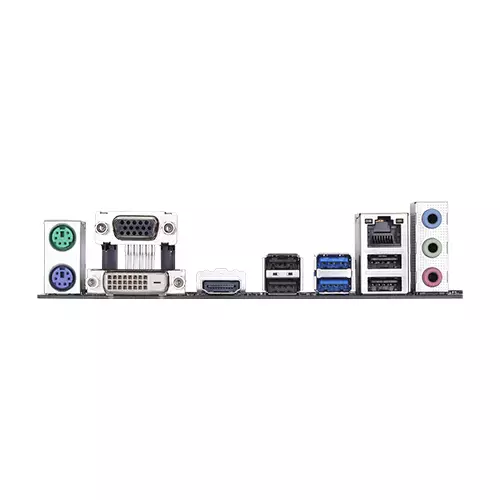

External I/O Ports 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Physical Specification

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

Warranty Information

Warranty 03 Year Warranty

PRODUCT DESCRIPTION

GIGABYTE H310M S2H Ultra Durable MOTHERBOARD

Specifications :

●︎ Supports 9th and 8th Gen Intel® Core™ Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4

●︎ 8-Channel HD Audio with High-Quality Audio Capacitors

●︎ Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface

●︎ GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

●︎ HDMI 1.4, DVI-D, D-Sub Ports for Multiple Display

●︎ CEC 2019 Ready, Save Power With a Simple Click

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ All new GIGABYTE™ APP Center, simple and easy use

●︎ Anti-Sulfur Resistors Design

**03 Year Warranty


GIGABYTE Ultra Durable LGA1151 RGB INTEL MOTHERBOARD

The H310M S2H LGA 1151 Micro-ATX Motherboard from MSI is built on the Intel H310 chipset and has an LGA 1151 socket designed for 8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with two DDR4 memory slots that support up to 32GB of 2666 MHz RAM. For storage, it has four SATA III ports and a single M.2 slot, which can deliver speeds of up to 20 Gb/s with a compatible SSD. Graphics can be handled by your processor's integrated GPU, or you can use its PCIe 3.0 x 16 slot for more powerful dedicated graphics cards. Other integrated features include Intel Gigabit LAN, DVI-D, HDMI outputs, and Realtek ALC887 7.1-channel high-definition audio. Moreover, this motherboard is equipped with RGB lighting that you can customize using MSI's downloadable software.
