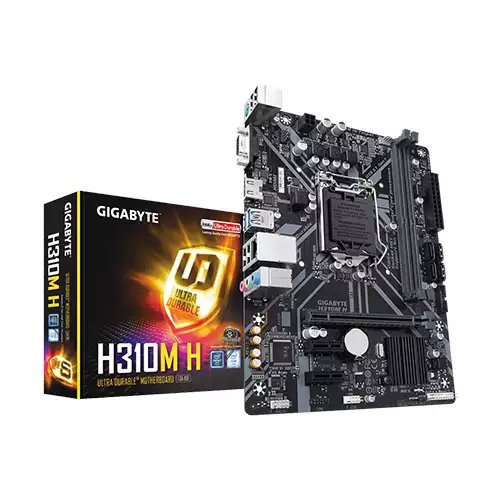

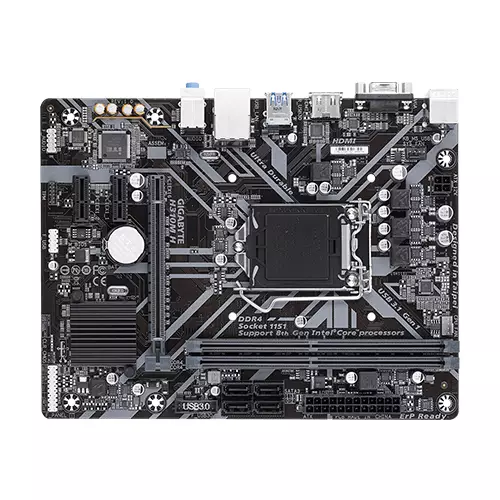

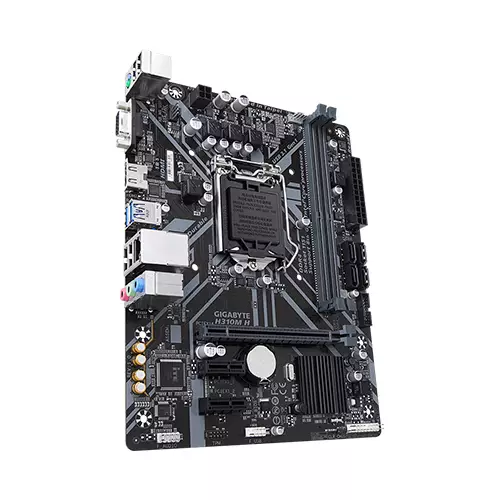

Gigabyte H310M H 8th Gen Micro ATX Motherboard
Gigabyte H310M H 8th Gen Micro ATX Motherboard
Gigabyte H310M H 8th Gen Micro ATX Motherboard - 1
Gigabyte H310M H 8th Gen Micro ATX Motherboard - 2
Gigabyte H310M H 8th Gen Micro ATX Motherboard - 3

Gigabyte H310M H 8th Gen Micro ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506221
SKU : TEGBH310M-HMB
Brand : Gigabyte
Model : H310M H
Warranty : 3 years
  • Chipset: Intel H310 Express Chipset
  • Support for 8th Generation Intel®
  • Slots: 2 x DIMM sockets
  • 3 x PCIe slot

Product Pricing

Discount Price

৳8,300 ৳9,500
+ Available Payment Method

EMI Start From*

৳292

SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

Mainboard

Chipset Intel H310 Express Chipset
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

Storage

Supported Storage 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Networking & Connectivity

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

1 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

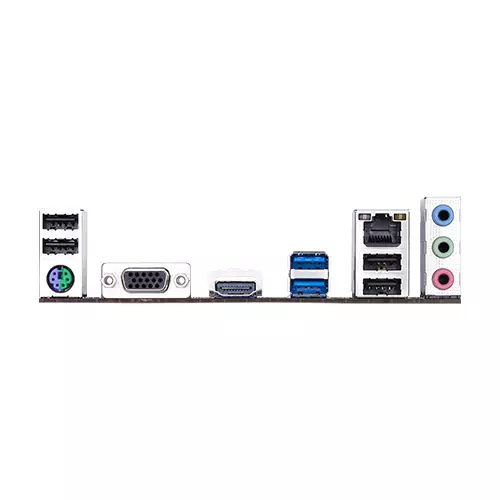

External I/O Ports 1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.1 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
USB 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
HDMI 1 x HDMI port

Physical Specification

Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte H310M H Motherboard

Features :

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • All new GIGABYTE™ APP Center, simple and easy use
  • Anti-Sulfur Resistors Design
**03 Year Warranty

Gigabyte H310M H Motherboard

Gigabyte H310M H 8th Gen Micro ATX motherboard for Intel (Socket LGA1151) i3, i5, and i7 processors (Socket LGA1151). This 8-Channel HD Audio with High Quality Audio Capacitor board features dual channel DDR4 memory with a maximum capacity of 32GB, as well as Ultra-Fast SATA 6Gb/s connectors and a USB 3.1 Gen 1 interface. This Anti-Sulfur Resistors Design board supports Intel HD graphics with a maximum resolution of 4096x2160@30 Hz for HDMI and 1920x1200@60 Hz for D-Sub connection.This audio board contains 3 PCIe slots, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, Smart Fan 5 with Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, and the all-new GIGABYTETM APP Center, which is straightforward and easy to use.
