Gigabyte GA-H81M-S2PH 4th Gen Micro ATX Motherboard

Gigabyte GA-H81M-S2PH 4th Gen Micro ATX Motherboard

0 Reviews

Stock : Discontinued

PID : P00025064918

Brand : Gigabyte

Model : GA-H81M-S2PH

Warranty : 3 Years

Chipset: Intel® H81 Express Chipset
Supported CPU: Support for Intel® Core™ i7
LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
Slots: 1 x PCI Express x16 slot, running at x16 1 x PCI Express

SPECIFICATIONS

Processor

Supported CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package

L3 cache varies with CPU

Mainboard

Chipset Intel® H81 Express Chipset

BIOS 2 x 64 Mbit flash

Use of licensed AMI EFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR3 1600/1333 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices

2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200

1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

* Support for HDMI 1.4a version.
Maximum shared memory of 1 GB

Networking & Connectivity

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16

1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 2.0 standard.)

2 x PCI slots

Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 2.0/1.1 header

1 x serial port header

1 x Clear CMOS jumper

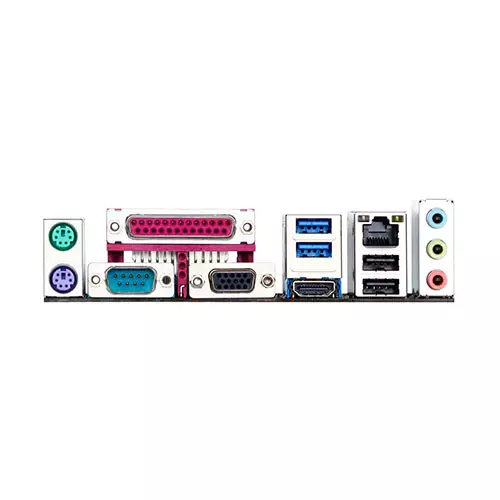

External I/O Ports 1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

1 x HDMI port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

USB Up to 2 USB 3.0/2.0 ports on the back panel

Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Software

Software Features Norton® Internet Security (OEM version)

Special Features

Special Features Support for Q-Flash

Support for Xpress Install

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS

EasyTune

EZ Setup

USB Blocker

Support for ON/OFF
Charge

Others

Other Features H/W Monitoring

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

I/O Controller

iTE® I/O Controller Chip

Physical Specification

Form Factor Micro ATX

Dimension 24.4cm x 18.0cm

Warranty Information

Warranty 3 Years

DESCRIPTION

Gigabyte GA-H81M-S2PH 4th Gen Micro ATX Motherboard in Bangladesh

Features :

Supports 4th Generation Intel® Core™ processors
GIGABYTE Ultra Durable™ 4 Plus Technology
GIGABYTE UEFI DualBIOS™
USB 3.0 ports with GIGABYTE 3x USB power
GIGABYTE On/Off Charge™ for USB devices
LAN with high ESD Protection
HDMI, D-SUB, LPT, COM port on rear panel
All solid capacitors design

**03 Years Warranty

GIGABYTE 8 Series Motherboards

GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel® 8 Series Platform

The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles.

GIGABYTE Ultra Durable™ 4 Plus

GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

Ultra Performance

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Ultra Safe

GIGABYTE UEFI DualBIOS™

GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process
