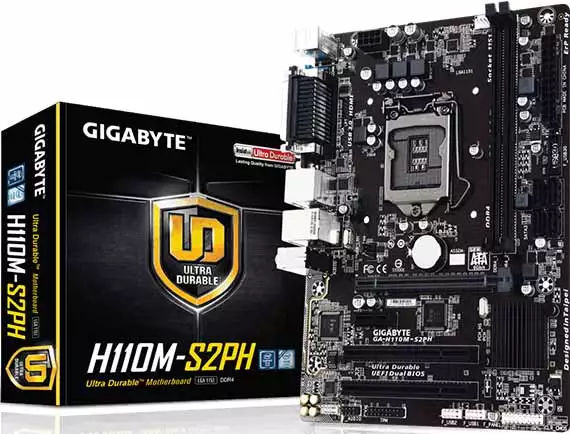

Gigabyte GA-H110M S2PH-DDR4 6th Gen Motherboard

Key Features

*Supports 6th Generation Intel® Core™ Processor

*Dual Channel DDR4, 2 DIMMs

*8-channel HD Audio with High Quality Audio Capacitors

*Audio Noise Guard with LED Trace Path Lighting

*HDMI 1.4, D-Sub ports for multiple display

*Realtek® GbE LAN with cFosSpeed Internet Accelerator Software

*All new GIGABYTE™ APP Center, simple and easy use

*GIGABYTE UEFI DualBIOS™ Technology

*Support Intel® Small Business Basics

Product Details Of Gigabyte GA-H110M S2PH-DDR4

>Model-   GA-H110M S2PH-DDR4

>Chipset-   Intel® H110 Express Chipset

>Supported Processors-   Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU

>Max Memory-   2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

>Onboard Video-   Integrated Graphics Processor - Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 1024 MB

>Onboard Audio-   Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

>Onboard LAN-   Realtek® GbE LAN chip (10/100/1000 Mbit)

>Storage Interface-  Chipset: 4 x SATA 6Gb/s connectors

>Warranty-   3 Years
