Gigabyte GA-H110M-H Micro ATX Motherboard
- Supports 7th/ 6th Gen ProcessorsChipset: Intel H110 Express
- 2 x DDR4 DIMM
- 3 x PCI Express slot
Product Pricing
EMI Start From*
৳327
SPECIFICATIONS
Processor
Supported CPU
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
Mainboard
Chipset
Intel H110 Express Chipset
BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
Type
Dual channel DDR4 memory architecture
Slots
2 x DIMM
Supported Memory
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory
32 GB
Dual channel DDR4 memory architecture
Slots
2 x DIMM
Supported Memory
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory
32 GB
Storage
Supported Storage
Chipset:
4 x SATA 6Gb/s connectors
4 x SATA 6Gb/s connectors
Graphics
Graphics
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Max Shared Memory
1024 MB
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Max Shared Memory
1024 MB
Networking & Connectivity
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Audio & Microphone
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Ports
Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

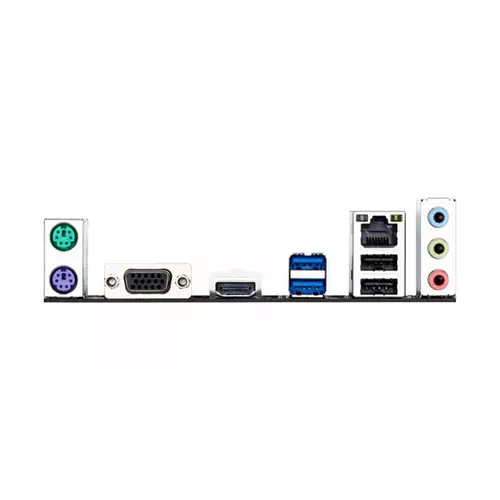

External I/O Ports
1 x D-Sub
USB
Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
HDMI
1 x HDMI
Physical Specification
Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
Warranty Information
Warranty
03 Years
DESCRIPTION

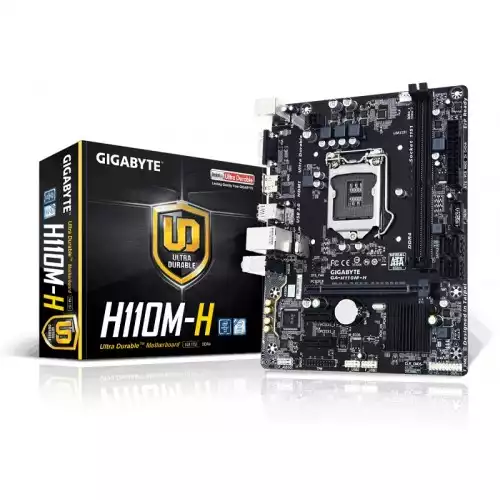

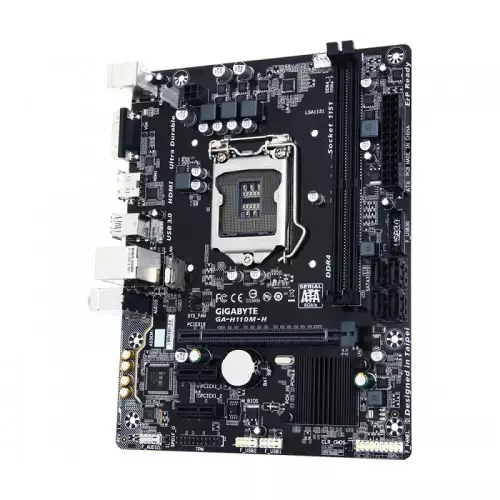

Gigabyte GA-H110M-H Motherboard
The Gigabyte GA-H110M-H Motherboard supports 7./6. i3, i5 and i7 processors. This Gigabyte GA-H110M-H Motherboard also supports dual-channel DDR4 memory with a maximum of 32 GB and an ultra-fast dual SATA interface. It focuses on the graphics and has integrated Intel HD graphics with 1 GB of shared graphics memory with a resolution of 1920 x 1200 @ 60 Hz for DSub and 4096 x 2160 @ 24 Hz for the HDMI connection. This entry-level Gigabyte GA-H110M-H Motherboard features Audio Noise Guard with high quality audio capacitors and Realtek® GbE LAN with cFosSpeed Internet Accelerator software. It also includes the new GIGABYTE ™ APPLICATION Center for simple and straightforward use and supports the fundamentals of Intel® Small Business.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the Gigabyte GA-H110M-H Micro ATX Motherboard Price in Bangladesh 2026 ?
The Gigabyte GA-H110M-H Price in BD is 9,300৳ . This Gigabyte GA-H110M-H Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte GA-H110M-H by 9,300৳ and its regular price is 10,500৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
