Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard
Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard
Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard - 1
Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard - 2
Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard - 3

Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard

1 Reviews
Stock : In Stock
PID : P0392506497
Brand : Gigabyte
Model : B860M D3HP
Warranty : 3-Years
  • CPU - LGA1851 socket
  • Chipset - Intel B860 Express Chipset
  • Form Factor - Micro ATX
  • Operating System - Support for Windows 11 64-bit / 10 64-bit
🎮 FREE LOGITECH F310 WITH PC BUILD

Product Pricing

Discount Price

৳21,300 ৳22,500
+ Available Payment Method

EMI Start From*

৳750

SPECIFICATIONS

Processor

Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Mainboard

Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) /
7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s
memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.





- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version.

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Ports

Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan/water cooling pump header

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header

(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Clear CMOS jumper

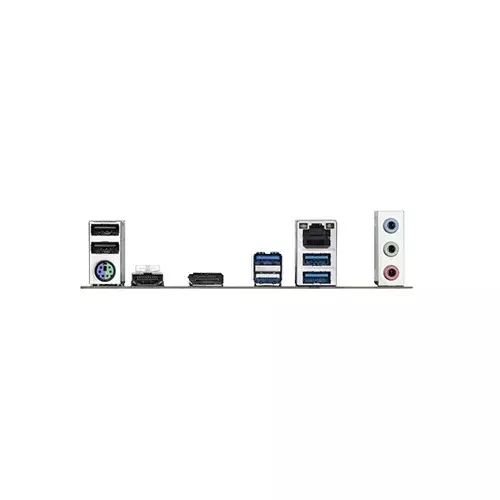

External I/O Ports 3 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x DisplayPort*

1 x HDMI port*

3 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks



* Actual support may vary by CPU.
USB Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

- 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Software

Bundled Software Norton Internet Security (OEM version)

LAN bandwidth management software
Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit

Special Features

Features Support for GIGABYTE Control Center (GCC)

Others

Controller iTE I/O Controller Chip
Other Features Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Physical Specification

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.





Chipset:

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 3-Years

DESCRIPTION

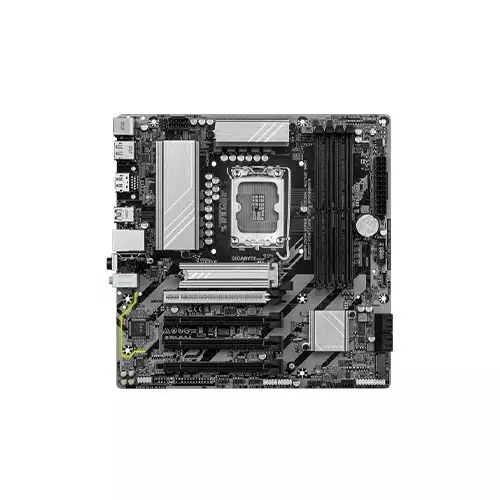

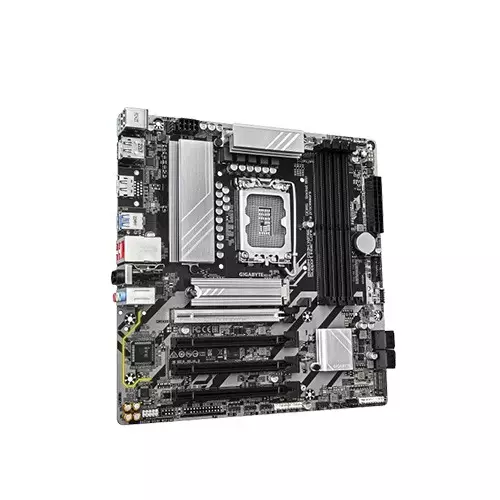

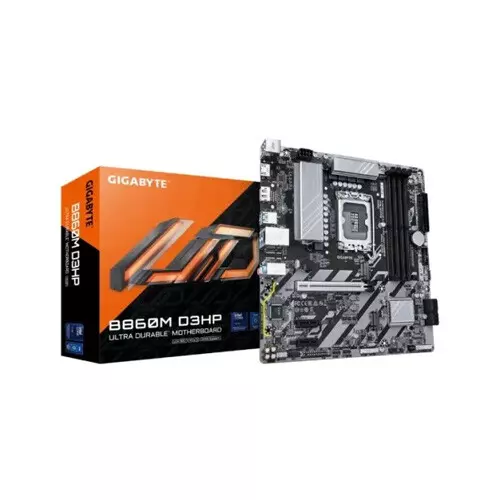

GIGABYTE B860M D3HP – Ultra Durable Micro ATX Motherboard

GIGABYTE B860M D3HP is a Micro ATX motherboard built with Intel B860 Express Chipset, supporting Intel Core Ultra Processors on the LGA1851 socket. Designed for performance and durability, it offers next-gen DDR5 memory support with speeds up to 9066 MT/s (O.C.), and a maximum capacity of 256GB across four DIMM slots. For visual output, the motherboard includes HDMI 2.1 and DisplayPort 2.1 for 4K resolution support, making it ideal for gaming, content creation, and office setups. Storage flexibility is enhanced with dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations.

Expansion options include a PCIe 5.0 x16 slot for GPUs or NVMe SSDs and two PCIe 3.0 x1 slots for additional peripherals. For networking, it features Realtek Gigabit LAN, ensuring stable and high-speed wired connections. With USB 3.2 Gen 1, USB Type-C, and customizable RGB headers, this motherboard is well-equipped for modern PC builds. GIGABYTE Control Centre (GCC), Q-Flash, and Smart Backup ensure easy system management. Compatible with Windows 11 and Windows 10, the B860M D3HP is an excellent choice for gamers, professionals, and system builders.



Gigabyte B860M D3HP DDR5 Motherboard Price in BD

Buy the Gigabyte B860M D3HP DDR5 Motherboard from Tech Land BD for an official warranty, a genuine product, a competitive price, and fast delivery across Bangladesh. Enjoy trusted after-sales support and build your Intel Core Ultra PC with confidence.

What processors are compatible with the GIGABYTE B860M D3HP?

This motherboard supports Intel Core Ultra Processors using the LGA1851 socket. Check GIGABYTE’s official website for the latest CPU support list.

How much RAM does this motherboard support?

It supports up to 256GB of DDR5 memory across four DIMM slots, with speeds up to 9066 MT/s (overclocked).

Does this motherboard have built-in Wi-Fi and Bluetooth?

No, this model does not include built-in Wi-Fi or Bluetooth. It uses Realtek Gigabit LAN for wired network connections.

REVIEWS

Login to write a review.

Overall Rating

3 out of 5 stars
1
Total Reviews
5 star
0
4 star
0
3 star
1
2 star
0
1 star
0
Imran

Budget-friendly and surprisingly capable. It has all the essential ports, and the M.2 slot is a nice bonus at this price. The board feels a bit light, but it’s held up fine for daily gaming. Recommended for tight budgets.

18 June, 2026

What is the Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard Price in Bangladesh 2026 ?

The Gigabyte B860M D3HP Price in BD is 21,300৳ . This Gigabyte B860M D3HP Intel B860 DDR5 Micro ATX Ultra Durable Motherboard Manufacturing by Gigabyte Comes With 3-Years Warranty & Based on 1 reviews. Tech Land BD Offers you Gigabyte B860M D3HP by 21,300৳ and its regular price is 22,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
