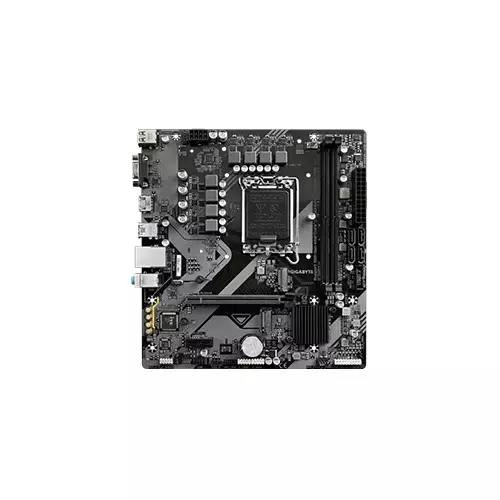

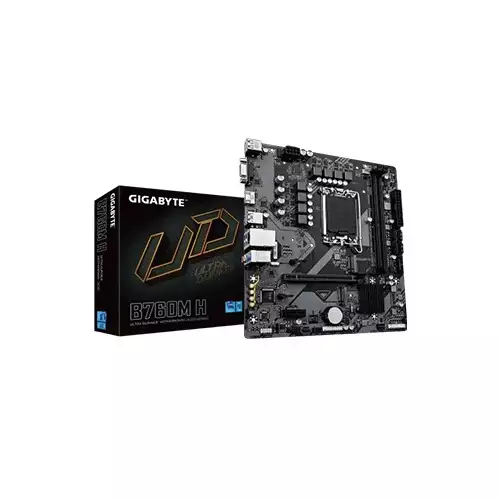

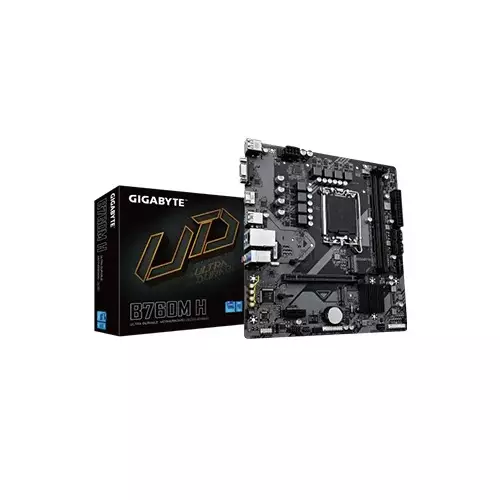

GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard
GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard
GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard - 1
GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard - 2

GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506407
Brand : Gigabyte
Model : B760M H DDR5
Warranty : 3 years
  • LGA1700 socket
  • Intel B760 Express Chipset
  • Micro ATX Form Factor
  • 1 x 128 Mbit flash

Product Pricing

Discount Price

৳14,100 ৳17,500
+ Available Payment Method

EMI Start From*

৳496

SPECIFICATIONS

Mainboard

Chipset Micro ATX Form Factor; 23.0cm x 21.5cm
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.)
/ 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Storage CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

Networking & Connectivity

Connections 1x HDMI

1 x D-Sub port

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio,
access the audio software for audio settings.

Support for S/PDIF Out

Ports

I/O Port Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

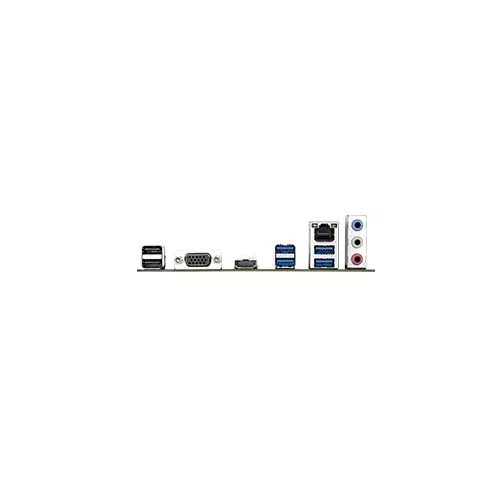

Back Panel Connectors

2 x USB 2.0/1.1 ports

1 x D-Sub port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks
Slots 2

Special Features

Speacial Features Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Physical Specification

Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.




Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm

Technical Info

Supported Sockets LGA1700 socket: Support for the 14th, 14th and 12th
Generation Intel Core, Pentium Gold and Celeron Processors

L3 cache varies with the CPU

Warranty Information

Warranty 3 years

DESCRIPTION

GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard in Bangladesh

GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard is a powerful and versatile motherboard available in Bangladesh, designed for gamers and professionals who need high performance and future-proof technology. This motherboard supports Intel’s 14th, 13th, and 12th generation processors, providing users with the latest capabilities for advanced computing tasks.


Technical Details

The GIGABYTE B760M H DDR5 Micro ATX Motherboard is built on the Intel B760 Express Chipset, supporting LGA1700 socket processors from Intel’s 14th, 13th, and 12th generation Core, Pentium Gold, and Celeron series. It features dual-channel DDR5 memory architecture, supporting speeds up to DDR5 8000 (O.C.), with a maximum system memory capacity of 128GB. For expansion, the motherboard includes 1x PCI Express x16 slot supporting PCIe 4.0, ideal for high-performance graphics cards, and 1x PCIe 3.0 x1 slot for additional components. The motherboard also features two M.2 slots for PCIe 4.0 SSDs and four SATA connectors for RAID configurations, ensuring fast and versatile storage options. Integrated Intel HD Graphics support allows for 4096x2160 resolution through HDMI, perfect for high-definition display needs. With high-definition Realtek audio, seven expansion slots, and support for S/PDIF output, this motherboard ensures a premium multimedia experience. It comes in a compact Micro ATX form factor (23.0cm x 21.5cm), making it ideal for smaller PC builds.


Availability and Usability

The GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard is available at Tech Land BD, offering users a reliable and high-performance motherboard for building modern gaming or productivity-focused PCs. With its support for DDR5 memory, PCIe 4.0, and M.2 storage options, it is an excellent choice for those who need the latest technology for gaming, video editing, or software development. The motherboard’s small form factor makes it perfect for compact builds while still providing all the essential features. For those looking for the "GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard Price in BD," Tech Land BD offers competitive pricing for this motherboard, ensuring great value for advanced users.


Highlights

  • Supports Intel 14th, 13th, and 12th Gen processors on LGA1700 socket
  • DDR5 memory support with speeds up to 8000(O.C.) for high performance
  • Dual M.2 slots for fast PCIe 4.0 storage
  • High-definition graphics support with 4096x2160 HDMI resolution
  • Realtek GbE LAN chip for high-speed internet connectivity

Buy the GIGABYTE B760M H DDR5 Micro ATX Motherboard from Tech Land BD Now!

Upgrade your system with the GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard, available at Tech Land BD, and experience cutting-edge technology that delivers top-tier performance. With its support for DDR5, PCIe 4.0, and multiple storage options, this motherboard is perfect for gamers, creators, and professionals who need a high-performance system. Get the best GIGABYTE B760M H DDR5 Micro ATX 14th Gen Motherboard Price in Bangladesh from Tech Land BD today and take your computing power to the next level!
