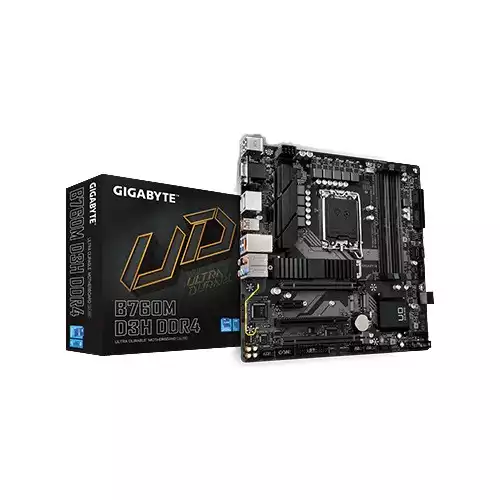

GIGABYTE B760M D3HP DDR4 14th Gen Micro ATX Motherboard
৳16,600
৳17,000
Save: ৳400
Gigabyte B760M K DDR4 14th/ 13th /12th Gen LGA1700 Intel Motherboard
৳13,700
৳14,500
Save: ৳800
Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 DDR5 ATX Motherboard
৳26,800
৳27,000
Save: ৳200
GIGABYTE H610M K DDR4 LGA1700 socket 14th-Gen Intel Micro ATX Motherboard
৳10,600
৳11,500
Save: ৳900
Gigabyte H410M K DDR4 Micro ATX Motherboard
৳9,200
৳10,000
Save: ৳800
Gigabyte GA-H81M-DS2 4th Gen Micro ATX Motherboard
৳8,800
৳9,200
Save: ৳400
GIGABYTE H510M H V2 Micro ATX 11th/10th Gen Motherboard
৳10,000
৳10,500
Save: ৳500
Gigabyte H610M H 14th/13th Gen DDR5 Micro ATX Motherboard
৳10,900
৳11,500
Save: ৳600
GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard
৳10,200
৳10,500
Save: ৳300
Save: ৳1,000

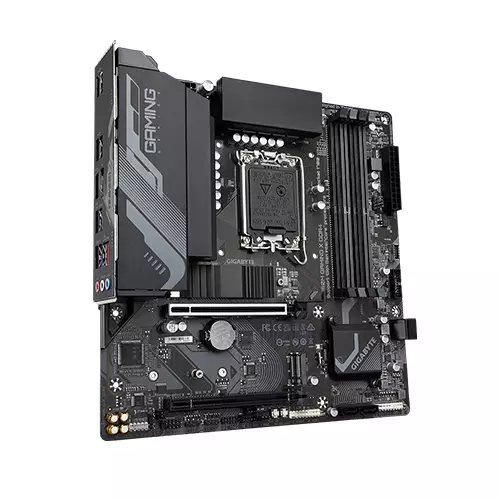

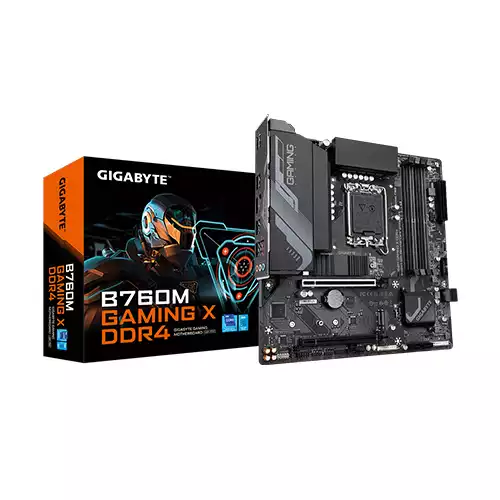

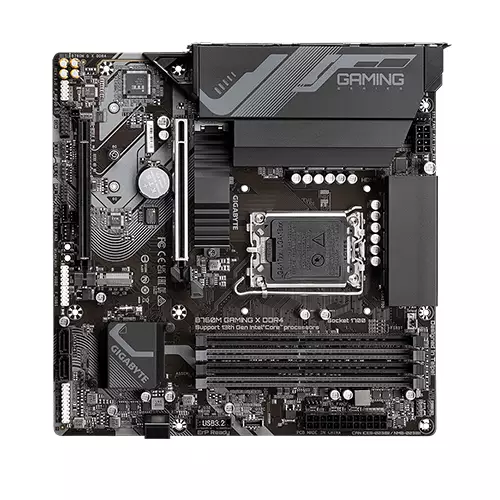

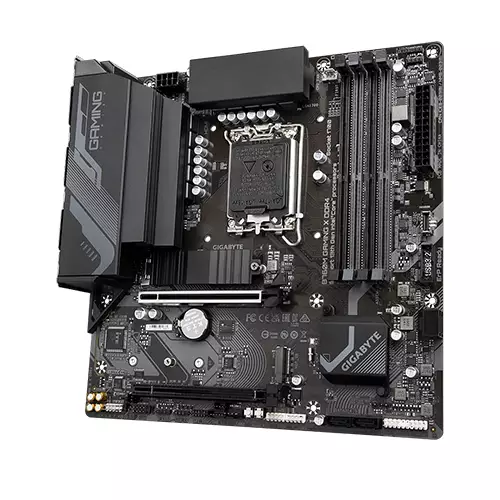

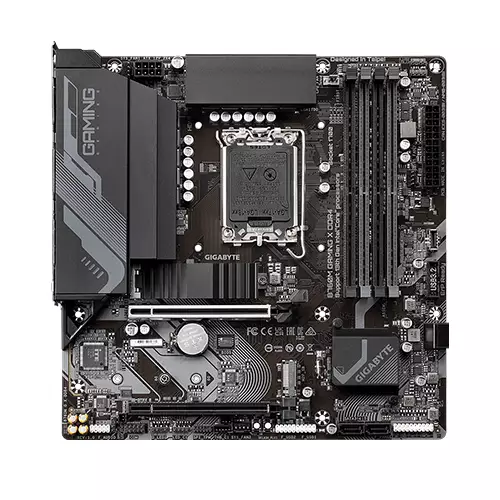

GIGABYTE B760M GAMING X DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD
- Supported CPU: LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and C...
- Memory: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4...
- Supported Storage: CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) C...
- LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Product Pricing
EMI Start From*
৳697
SPECIFICATIONS
Processor
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™,
Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Mainboard
Chipset
Intel® B760 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
Support for DDR4 5333(O.C.)/
5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/
4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/
4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key,
type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0,
RAID 1, RAID 5, and RAID 10 support for SATA storage devices
1 x M.2 connector (Socket 3, M key,
type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0,
RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Networking & Connectivity
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio & Microphone
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel
audio, access the audio software for audio settings.
Support for S/PDIF Out
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel
audio, access the audio software for audio settings.
Support for S/PDIF Out
Ports
Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

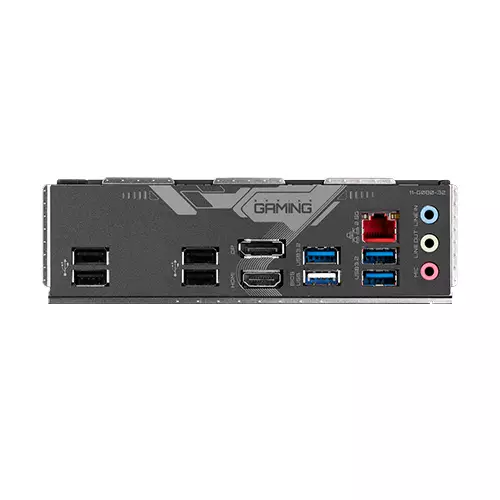

External I/O Ports
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
5 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
USB
Chipset:
1 x USB Type-C® port with USB 3.2 Gen
2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
1 x USB Type-C® port with USB 3.2 Gen
2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
HDMI
1 x HDMI 2.0 port
Software
Software Features
Norton® Internet Security (OEM version)
LAN bandwidth management software
LAN bandwidth management software
Special Features
Special Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model.
Supported functions of each
application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
* Available applications in GCC may vary by motherboard model.
Supported functions of each
application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Others
Other Features
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control
function is supported will depend on the fan you install.
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control
function is supported will depend on the fan you install.
Physical Specification
Form Factor
Micro ATX
Dimension
24.4cm x 24.4cm
Warranty Information
Warranty
3 Years
DESCRIPTION
GIGABYTE B760M GAMING X DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD IN BANGLADESH
The GIGABYTE B760M Gaming X DDR4 Intel LGA 1700 Micro-ATX Motherboard is optimized for Intel Core, Pentium Gold, and Celeron processors from the 13th and 12th generations. This motherboard, which has an Intel B760 Express chipset, supports DDR4 memory modules with speeds ranging from 2400 to 5333 MT/s and can carry up to 128GB of system memory through its four DDR DIMM connections.
It also has inbuilt Intel HD Graphics and a DisplayPort and HDMI connection for better visual capabilities. High-quality sound is provided by Realtek Audio CODEC and 2/4/5.1/7.1-channel audio capabilities. Furthermore, the Realtek 2.5GbE LAN chip ensures quick and robust network connections.
For storage, this motherboard features two M.2 connections and four SATA 6Gb/s connectors, as well as USB Type-C and USB 3.2 Gen 1 ports for communication. You'll have lots of alternatives for connecting your gadgets with 8 USB 2.0/1.1 connections. For increased protection, the board has a front panel header, a front panel audio header, and a Trusted Platform Module header.
The GIGABYTE B760M Gaming X DDR4 Intel LGA 1700 Micro-ATX Motherboard is an ideal choice for gamers and PC enthusiasts, since it supports extreme memory profile (XMP) modules and ECC Un-buffered DIMM memory.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the GIGABYTE B760M GAMING X DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD Price in Bangladesh 2026 ?
The Gigabyte B760M GAMING X DDR4 Price in BD is 19,800৳ . This GIGABYTE B760M GAMING X DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760M GAMING X DDR4 by 19,800৳ and its regular price is 20,800৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
