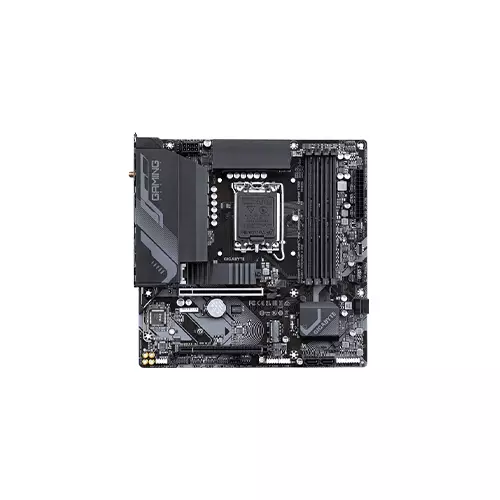

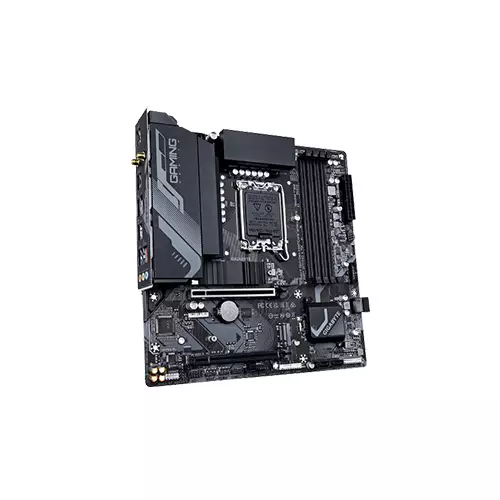

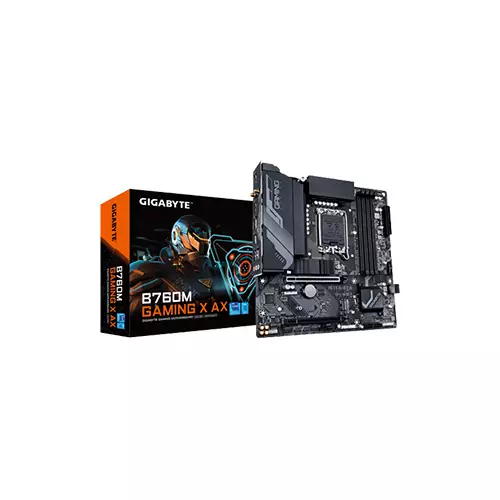

GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD - 1
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD - 2
GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD - 3

GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD

1 Reviews
Stock : In Stock
PID : P0392506303
Brand : Gigabyte
Model : B760M GAMING X AX
Warranty : 3 YEARS
  • Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7600(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX210

🎮 FREE LOGITECH F310 WITH PC BUILD

Product Pricing

Discount Price

৳20,500 ৳24,200
+ Available Payment Method

EMI Start From*

৳722

SPECIFICATIONS

Processor

Supported CPU 1.LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

2.L3 cache varies with CPU

Mainboard

Chipset Intel® B760 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 1.Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

3.Dual channel memory architecture

4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6.Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.0 version and HDCP 2.3.

Networking & Connectivity

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency band Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bluetooth BLUETOOTH 5.3

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Ports

Slots Expansion Slots
CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot

Chipset:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x serial port header

1 x reset jumper

1 x Clear CMOS jumper
USB Chipset:

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Others

Other Features H/W Monitoring:

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Operating System:

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 3 YEARS

DESCRIPTION

GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD PRICE IN BD

The GIGABYTE B760M Gaming X AX is a high-performance motherboard designed for the 13th generation Intel processors. It features the latest DDR5 memory technology, offering improved data transfer speeds and enhanced overall system performance. This motherboard is specifically aimed at gamers and enthusiasts who demand top-of-the-line features and performance. It supports the LGA 1700 socket, which is compatible with Intel's 13th generation processors, providing excellent power delivery and efficient overclocking capabilities. The B760M Gaming X AX boasts a robust power design, including reinforced PCIe slots and advanced thermal solutions to ensure stable operation even under heavy loads. It offers multiple expansion slots, including PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 4.0 x1, allowing for versatile connectivity options such as high-speed graphics cards, SSDs, and other peripherals. With DDR5 support, this motherboard can accommodate faster and more efficient RAM modules, enabling quicker data access and application responsiveness. It also features dual M.2 slots with PCIe 4.0 x4 support for ultra-fast storage solutions. In terms of networking, the B760M Gaming X AX comes equipped with built-in Wi-Fi 6E, offering blistering wireless speeds and improved network stability. It also features Intel 2.5GbE LAN, ensuring smooth and reliable online gaming experiences. For audio enthusiasts, the motherboard incorporates an onboard high-definition audio codec, providing exceptional sound quality for immersive gaming and multimedia experiences. Additionally, it includes RGB lighting zones, allowing users to customize their system aesthetics. Overall, the GIGABYTE B760M Gaming X AX is a feature-rich motherboard that combines cutting-edge technologies, robust performance, and extensive connectivity options, making it an ideal choice for gamers and power users looking to build a high-end Intel-based system. The large selection of GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD available at Techland BD is well recognized.

REVIEWS

Login to write a review.

Overall Rating

5 out of 5 stars
1
Total Reviews
5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
sakib

Updated the BIOS without a CPU—huge lifesaver. The board is responsive and handles multitasking well. Wi-Fi antenna is flimsy, but connection strength is solid. Overall, a very pleasant surprise.

25 June, 2026

What is the GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte B760M GAMING X AX Price in BD is 20,500৳ . This GIGABYTE B760M GAMING X AX DDR5 13TH GEN INTEL MOTHERBOARD Manufacturing by Gigabyte Comes With 3 YEARS Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760M GAMING X AX by 20,500৳ and its regular price is 24,200৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
