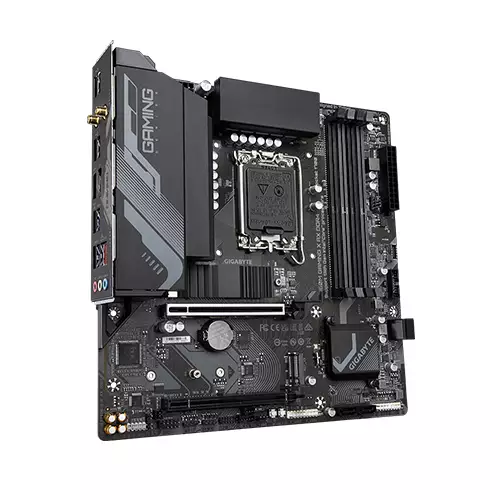

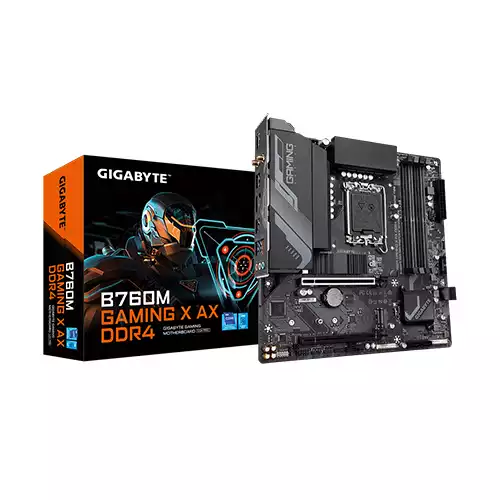

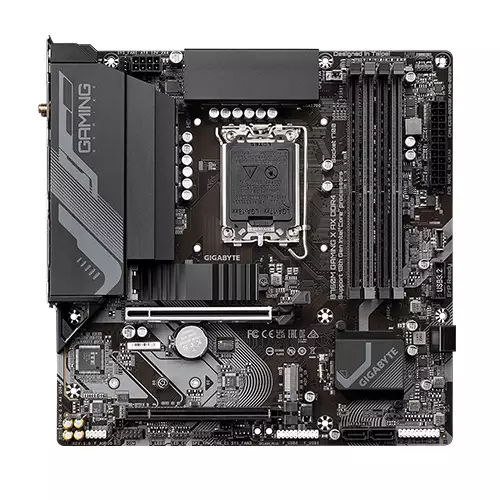

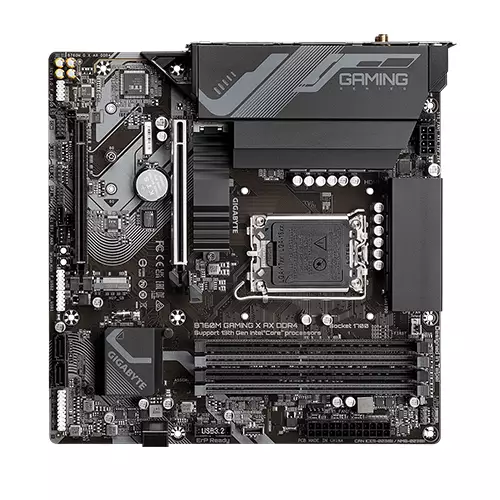

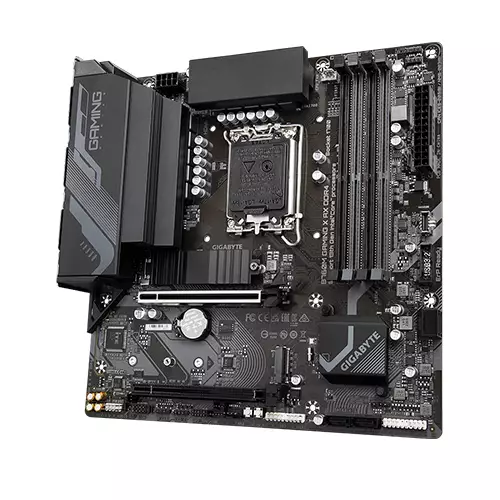

GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD
- Chipset: Intel® B760 Express Chipset
- Supported CPU: LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and C...
- LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- WiFi: AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GH...
Product Pricing
EMI Start From*
৳697
SPECIFICATIONS
Processor
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™,
Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Mainboard
Chipset
Intel® B760 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
Support for DDR4 5333(O.C.)/
5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)
/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)
/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key,
type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1,
RAID 5, and RAID 10 support for SATA storage devices
1 x M.2 connector (Socket 3, M key,
type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1,
RAID 5, and RAID 10 support for SATA storage devices
Graphics
Graphics
Integrated Graphics Processor-Intel®
HD Graphics support:
1 x DisplayPort, supporting a maximum
resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
HD Graphics support:
1 x DisplayPort, supporting a maximum
resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Networking & Connectivity
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi
AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless
standard and up to 1.2 Gbps data rate
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless
standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless
standard and up to 1.2 Gbps data rate
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless
standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bluetooth
5.3 or 5.2 depends on module
Audio & Microphone
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio
software for audio settings.
Support for S/PDIF Out
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio
software for audio settings.
Support for S/PDIF Out
Ports
Slots
1 x PCI Express x16 slot,
supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance,
if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance,
if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

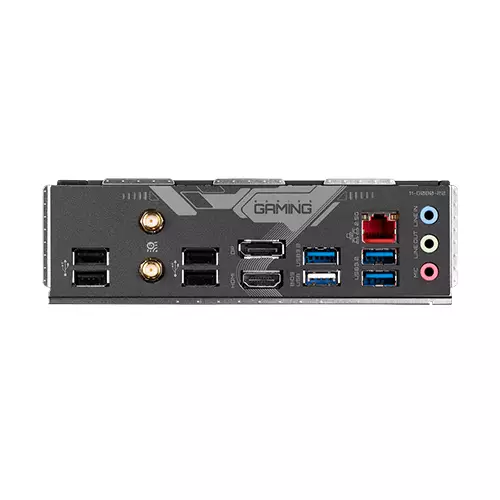

External I/O Ports
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
USB
Chipset:
1 x USB Type-C® port with USB 3.2 Gen
2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
1 x USB Type-C® port with USB 3.2 Gen
2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
HDMI
1 x HDMI 2.0 port
Software
Software Features
Norton® Internet Security (OEM version)
LAN bandwidth management software
LAN bandwidth management software
Others
Other Features
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control
function is supported will depend on the fan you install.
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control
function is supported will depend on the fan you install.
Physical Specification
Form Factor
Micro ATX
Dimension
24.4cm x 24.4cm
Warranty Information
Warranty
3 Years
DESCRIPTION
GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD IN BANGLADESH
The GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD is a gaming and enthusiast-oriented motherboard. This motherboard features an LGA1700 socket that supports Intel Core, Pentium Gold, and Celeron CPUs from the 13th and 12th generations. The motherboard also includes an Intel B760 chipset and DDR4 memory module support ranging from 2133 to 5333 MT/s. The motherboard's four DDR DIMM ports can accommodate up to 128 GB of system memory in a dual-channel design. For flawless visual output, the integrated graphics processor supports Intel HD Graphics, and there are also 1 DisplayPort and 1 HDMI connector.
A Realtek Audio CODEC with high-definition audio and support for 2/4/5.1/7.1-channel sound is also included on the motherboard. A Realtek 2.5GbE LAN chip is also included, as well as a variety of wireless communication choices, including AMD Wi-Fi 6E RZ608, Intel Wi-Fi 6E AX210, Intel Wi-Fi 6E AX211, and Realtek Wi-Fi 6E RTL8852CE, all of which support the 11ax wireless standard and varying data speeds.
The motherboard features one PCI Express x16 slot (PCIEX16) and one PCI Express x16 slot (PCIEX4) for graphics cards, as well as M.2 ports for high-speed storage devices. There are also four SATA 6Gb/s ports with support for RAID 0, 1, 5, and 10. The motherboard also includes a number of USB ports, including a USB Type-C connector that supports USB 3.2 Gen 2.
Finally, the GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD is a feature-rich motherboard that provides outstanding performance, connection, and expandability to gamers and enthusiasts.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD Price in Bangladesh 2026 ?
The Gigabyte B760M GAMING X AX DDR4 Price in BD is 19,800৳ . This GIGABYTE B760M GAMING X AX DDR4 INTEL LGA 1700 MICRO-ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760M GAMING X AX DDR4 by 19,800৳ and its regular price is 24,600৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
