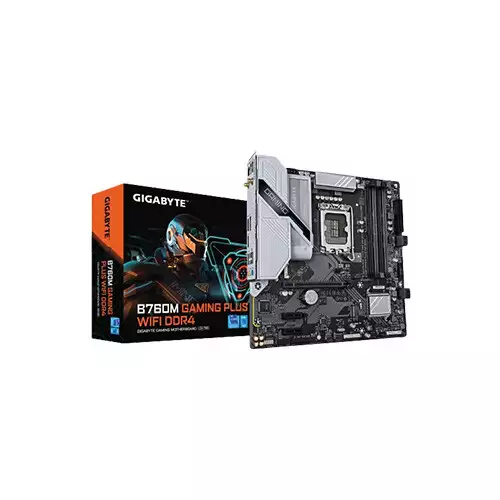

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX INTEL Motherboard

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX INTEL Motherboard

0 Reviews
Stock : Out of Stock
PID : P0322508020
Brand : Gigabyte
Model : B760M GAMING PLUS WIFI
Warranty : 3 Years
  • Supports : Intel Core 14th/ 13th /12th processors
  • Dual Channel DDR4：4*DIMMs
  • Chipset : Intel B760 Express Chipset
  • Form Factor: Micro ATX

Product Pricing

Reguler Price

৳25,000
+ Available Payment Method

EMI Start From*

৳880

SPECIFICATIONS

Processor

Supported CPU

LGA1700 socket: Support for the 14th, 13th, and
12th Generation Intel Core, Pentium Gold and
Celeron Processors

L3 cache varies with CPU
Chipset

Intel B760 Express Chipset

Mainboard

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Storage

Supported Storage

CPU:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

– 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.


– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Networking & Connectivity

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
WiFi

Realtek Wi-Fi 6 RTL8851BE

– WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz
 carrier frequency bands
Bluetooth

Support for 11ax 160MHz wireless standard

Audio & Microphone

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Ports

Slots

CPU:

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

– 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x parallel port header

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper
External I/O Ports

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (2T2R)

1 x DisplayPort

1 x HDMI port

3 x USB 3.2 Gen 1 ports

1 x RJ-45 port

3 x audio jacks
USB

Chipset:

– 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

– 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports available through the internal USB headers

Software

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software
Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Special Features

Special Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Others

Controller

iTE I/O Controller Chip
Other Features

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Physical Specification

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty

3-Years

DESCRIPTION

GIGABYTE B760M GAMING PLUS WIFI DDR4 ATX Intel Motherboard in Bangladesh

GIGABYTE B760M GAMING PLUS WIFI DDR4 ATX Intel Motherboard is a powerful and reliable option for gamers, content creators, and PC enthusiasts who want exceptional performance without compromise. Built with the Intel B760 Express Chipset and LGA1700 socket, it supports the latest 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors for unmatched speed and responsiveness. Featuring dual-channel DDR4 memory with support up to 128GB (5333MHz OC), this motherboard ensures smooth multitasking and blazing-fast data performance. The motherboard is equipped with dual M.2 PCIe 4.0 slots, 4× SATA 6Gb/s ports, and a PCIe 4.0 x16 slot for high-speed NVMe SSDs and powerful graphics cards. With integrated Intel HD Graphics support, users can connect via HDMI 2.1 or DisplayPort 1.2, supporting 4K resolution at 60Hz for stunning visuals. Connectivity is a highlight, with USB 3.2 Gen 1 Type-C, multiple USB 3.2 and 2.0 ports, and Wi-Fi 6 with Bluetooth 5.3 for ultra-fast wireless connections. The Realtek GbE LAN, 7.1-channel HD audio, and RGB/ARGB headers further enhance gaming and entertainment experiences. Additional features like Q-Flash Plus BIOS updates, Gigabyte Control Center (GCC), and anti-ghosting fan controls make it a versatile choice for modern PC builds. Designed in a durable Micro-ATX form factor (24.4×24.4 cm), it fits compactly into most PC cases while delivering top-tier reliability and performance. If you are looking for a feature-rich Intel motherboard that balances affordability, durability, and next-gen performance, the GIGABYTE B760M GAMING PLUS WIFI DDR4 ATX Intel Motherboard is available now at Tech Land BD with an official warranty.


Does the GIGABYTE B760M GAMING PLUS WIFI support DDR5 RAM?

No, this motherboard only supports DDR4 memory up to 5333MHz (OC).

Can I use Wi-Fi and Bluetooth without additional adapters?

Yes, it has built-in Wi-Fi 6 and Bluetooth 5.3 support with external SMA antennas.

How many M.2 slots are available for SSDs?

It comes with two PCIe 4.0 x4 M.2 slots for ultra-fast NVMe storage.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX INTEL Motherboard Price in Bangladesh 2026 ?

The Gigabyte B760M GAMING PLUS WIFI Price in BD is 25,000৳ . This GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX INTEL Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760M GAMING PLUS WIFI by 25,000৳ and its regular price is 25,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
