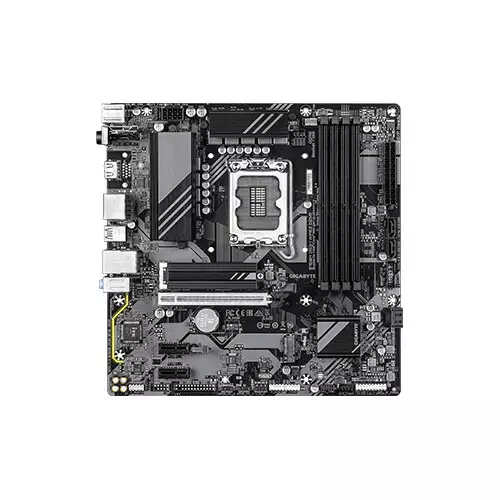

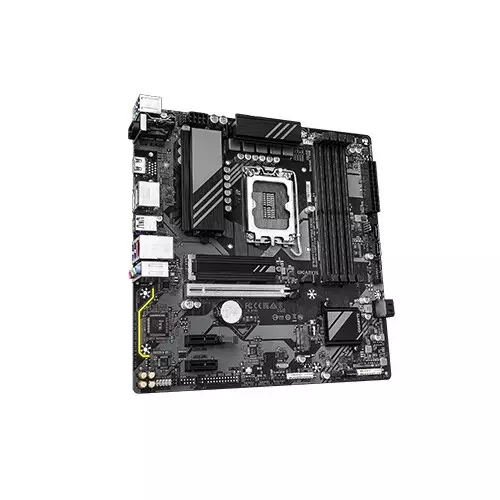

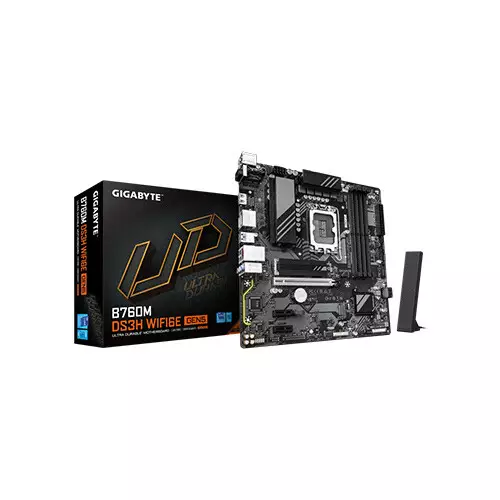

Gigabyte B760M DS3H WIFI6E GEN5 Intel DDR5 Gaming Motherboard

LGA1700 socket: Support for the 14th,
13th, and 12th Generation Intel Core,
Pentium Gold and Celeron Processors

Intel B760 Express Chipset

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0,
SM BIOS 2.7, ACPI 5.0

14th and 13th Generation Intel
Core i9/i7 Processors:

- Support for DDR5
5600/5200/4800/4400 MT/s
memory modules

13th Generation Intel Core i5/i3
and 12th Generation Intel Core,
Pentium Gold and Celeron Processors:

- Support for DDR5 4800/4400
MT/s memory modules

4 x DDR5 DIMM sockets supporting
up to 256 GB (64 GB single DIMM capacity)
of system memory

Dual-channel memory architecture

Support for ECC Un-buffered
DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)

Support for non-ECC Un-buffered
DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile
(XMP) memory modules

(The CPU and memory configuration
may affect the supported memory types,
data rate (speed), and number
of DRAM modules. Please refer to
"Memory Support List" on GIGABYTE's
website for more information.)

CPU:

- 1 x M.2 connector (Socket 3,
M key, type 2280 PCIe 4.0 x4/x2
SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3,
M key, type 2280 PCIe 4.0 x4/x2
SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and
RAID 10 support for
SATA storage devices

Integrated Graphics Processor-Intel
HD Graphics support:

- 1 x HDMI port, supporting
a maximum resolution of
4096x2160@60 Hz

* Support for HDMI 2.1
version and HDCP 2.3.

** Support for native HDMI
2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting
a maximum resolution
of 4096x2304@60 Hz

* Support for DisplayPort
1.2 version and HDCP 2.3

- 1 x DisplayPort, supporting
a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

Realtek 2.5GbE LAN chip
(2.5 Gbps/1 Gbps/100 Mbps)

Intel Wi-Fi 6E AX210

- WIFI a, b, g, n, ac, ax,
supporting 2.4/5/6 GHz
carrier frequency bands

Support for 11ax 160MHz
wireless standard

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

CPU:

- 1 x PCI Express x16 slot, supporting
PCIe 5.0 and running at x16

* The PCIEX16 slot can only
support a graphics card or an NVMe SSD.

Chipset:

- 2 x PCI Express x1 slots,
supporting PCIe 3.0 and running at x1

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable RGB Gen2
LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module
header (For the GC-TPM2.0
SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0
SPI V2 module only)

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

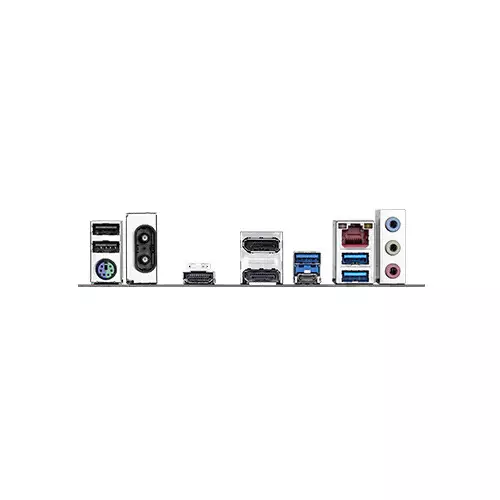

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x antenna connectors (2T2R)

1 x HDMI port (Note)

2 x DisplayPorts (Note)

3 x USB 3.2 Gen 1 ports

1 x USB Type-C port,
with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

Chipset:

- 1 x USB Type-C port on the
back panel, with USB 3.2 Gen 2 support

- 5 x USB 3.2 Gen 1 ports
(3 ports on the back panel,
2 ports available through the internal USB header)

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available
through the internal USB headers

Norton Internet Security (OEM version)

Support for Windows 11 64-bit

Support for Windows 10 64-bit

iTE I/O Controller Chip

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Micro ATX Form Factor;
24.4cm x 24.4cm

3 years
