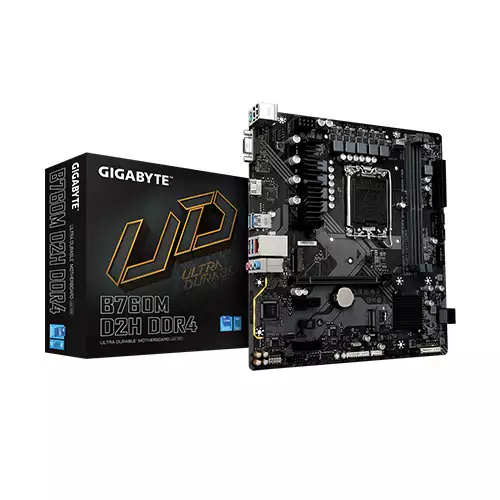

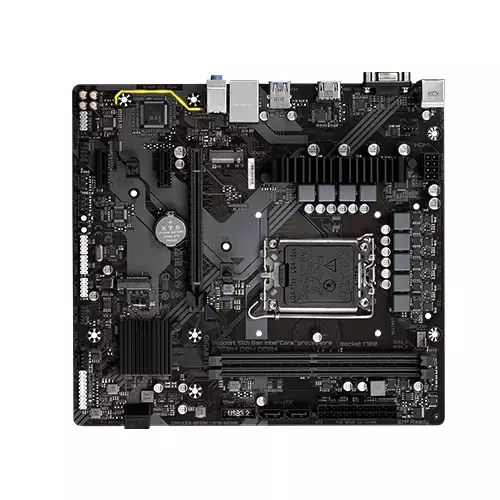

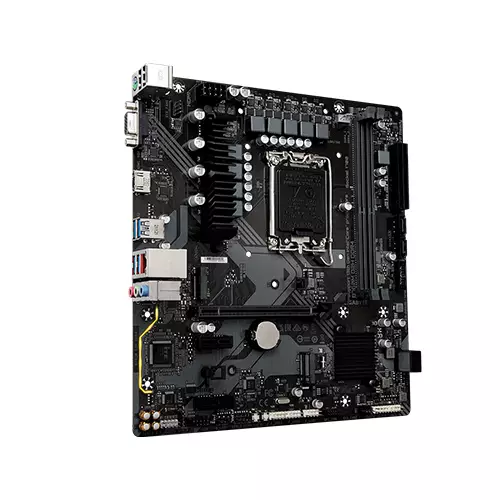

GIGABYTE B760M D2H DDR4 LGA 1700 12TH GEN MICRO-ATX MOTHERBOARD
GIGABYTE B760M D2H DDR4 LGA 1700 12TH GEN MICRO-ATX MOTHERBOARD
GIGABYTE B760M D2H DDR4 LGA 1700 12TH GEN MICRO-ATX MOTHERBOARD - 1
GIGABYTE B760M D2H DDR4 LGA 1700 12TH GEN MICRO-ATX MOTHERBOARD - 2

GIGABYTE B760M D2H DDR4 LGA 1700 12TH GEN MICRO-ATX MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506276
Brand : Gigabyte
Model : B760M D2H DDR4
Warranty : 3 years
  • CPU Socket Type: LGA 1700
  • Intel B760 Express Chipset
  • Audio: Realtek Audio CODEC
  • Form Factor: Micro ATX

Product Pricing

Discount Price

৳14,500 ৳17,000
+ Available Payment Method

EMI Start From*

৳511

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processorsv

L3 cache varies with CPU

Mainboard

Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Networking & Connectivity

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Ports

Slots CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Internal I/O Ports 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan header

2x system fan headers

1x addressable LED strip header

1x RGB LED strip header

2x M.2 Socket 3 connectors

4x SATA 6Gb/s connectors

1x front panel header

1x front panel audio header

1x S/PDIF Out header

1x USB 3.2 Gen 1 header

3x USB 2.0/1.1 headers

1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1x serial port header

1x Q-Flash Plus button

1x reset button

1x reset jumper

1x Clear CMOS jumper
External I/O Ports 1x PS/2 keyboard/mouse port

1x D-Sub port

1x HDMI port

4x USB 3.2 Gen 1 ports

2x USB 2.0/1.1 ports

1x RJ-45 port

3x audio jacks
USB Chipset:

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset 2 USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor Micro ATX Form Factor: 24.4cm x 22.5cm

Warranty Information

Warranty 03 Years

DESCRIPTION

GIGABYTE B760M D2H DDR4 MICRO-ATX MOTHERBOARD

GIGABYTE B760M D2H is a Micro-ATX motherboard designed for use with 12th Generation Intel Core processors and LGA 1700 socket. It supports DDR4 memory, providing faster speeds and higher data bandwidth than previous DDR3 memory standards. This motherboard features advanced heat dissipation, with a thermal design that optimizes air flow and reduces operating temperatures. It also has a comprehensive set of connectivity options, including USB 3.2 Gen 1 and 2 ports, DisplayPort and HDMI video outputs, Gigabit Ethernet, and audio jacks. The B760M D2H also includes GIGABYTE's exclusive software utilities, including EasyTune and Cloud Station, which provide users with a range of performance tuning and remote management options. Overall, the GIGABYTE B760M D2H is a versatile, high-performance motherboard for building a powerful gaming or workstation PC.
