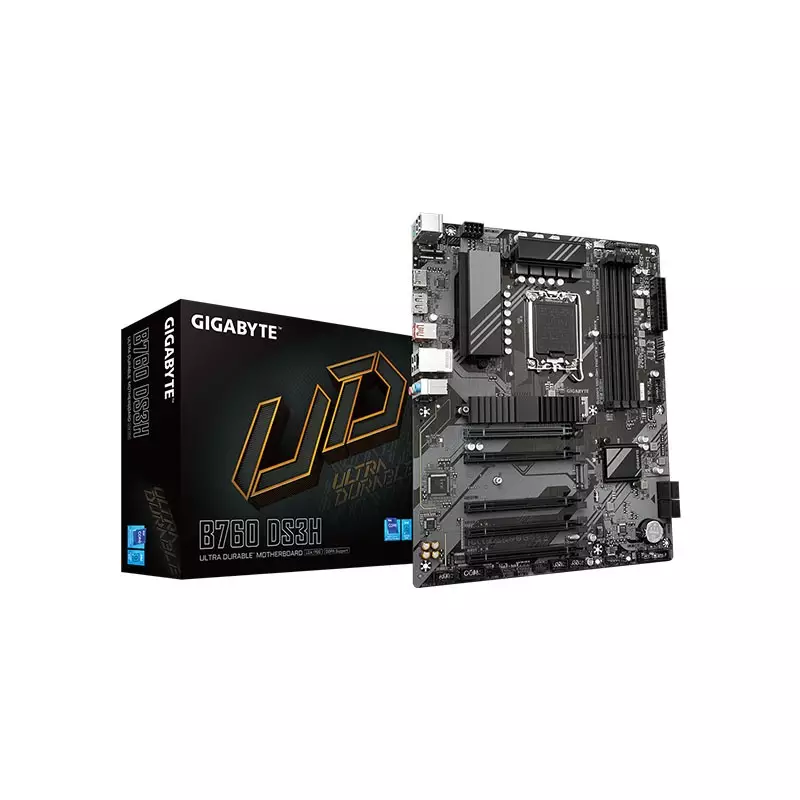

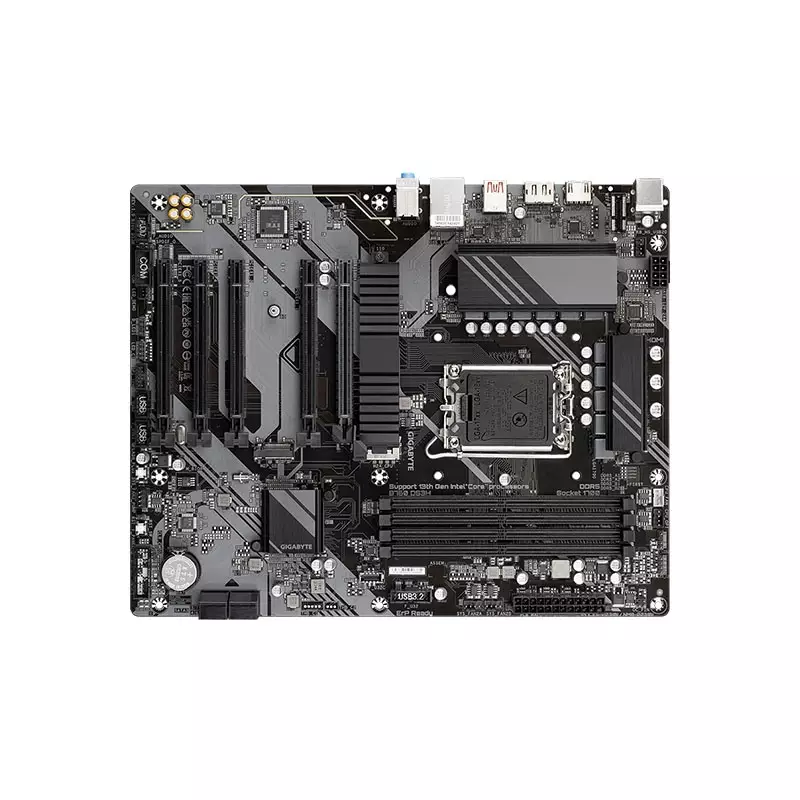

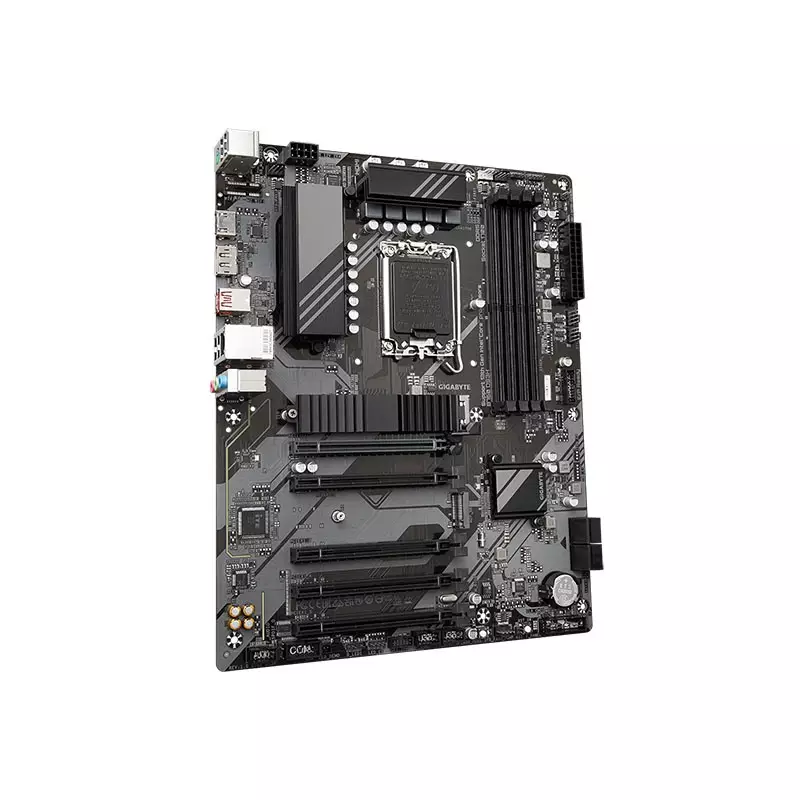

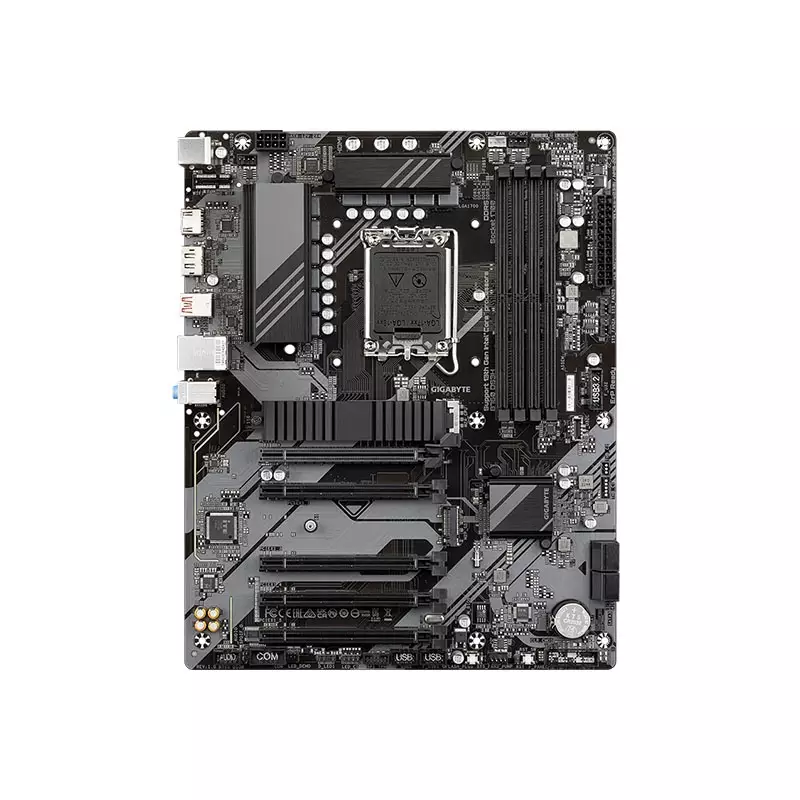

GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD
GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD
GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD - 1
GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD - 2
GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD - 3
GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD - 4

GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD

2 Reviews
Stock : In Stock
PID : P0392506332
Brand : Gigabyte
Model : B760 DS3H DDR5
Warranty : 3 Years
  • Chipset: B760 Express
  • Memory: DDR5 Dual channel
  • BIOS: 128 Mbit flash
  • CPU: LGA1700 socket

Product Pricing

Discount Price

৳19,500 ৳21,200
+ Available Payment Method

EMI Start From*

৳687

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Mainboard

Chipset Intel® B760 Express Chipset
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) /
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics

Multi-GPU Yes
Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Networking & Connectivity

LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Ports

Slots CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x parallel port header

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper
External I/O Ports 2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x DisplayPorts

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks
USB Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers
HDMI 1 x HDMI port

Software

Software Features Norton® Internet Security (OEM version)

LAN bandwidth management software

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Special Features

Special Features Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Others

Other Features I/O Controller: iTE® I/O Controller Chip

H/W Monitoring:

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Physical Specification

Form Factor ATX
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years Warranty

DESCRIPTION

GIGABYTE B760 DS3H DDR5 13TH AND 12TH GEN INTEL MOTHERBOARD

The GIGABYTE B760 DS3H DDR5 motherboard is designed to support the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors with its LGA1700 socket. It features the Intel B760 Express Chipset and supports DDR5 memory modules with speeds ranging from 4800 MT/s to 7600 MT/s. The motherboard has four DDR5 DIMM sockets with a maximum capacity of 192 GB of system memory in dual channel architecture. It also includes integrated graphics support with multiple display options such as D-Sub, HDMI, and DisplayPort. The audio is powered by a Realtek Audio CODEC providing high definition audio with support for various channel configurations. For connectivity, it offers a Realtek 2.5GbE LAN chip and USB ports including a USB Type-C port with USB 3.2 Gen 2 support. Storage options include M.2 connectors and SATA 6Gb/s connectors with RAID support. The motherboard comes in a Micro ATX form factor and is backed by a 3-year warranty. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Gigabyte Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.
